一種基于時空頻多維特征的短時窗口腦電聽覺注意解碼網絡

王春麗; 李金絮; 高玉鑫; 王晨名; 張珈豪

doi:10.11999/JEIT240867

一種基于時空頻多維特征的短時窗口腦電聽覺注意解碼網絡

doi: 10.11999/JEIT240867

蘭州交通大學電子與信息工程學院蘭州 730000

基金項目: 蘭州交通大學-天津大學高校聯合創新基金(LH2023002)，天津市自然科學基金(21JCZXJC00190)

詳細信息

作者簡介:
王春麗：女，副教授，研究方向為腦機接口、語音分離、聲源定位

李金絮：女，碩士生，研究方向為基于腦電的聽覺注意解碼

高玉鑫：女，碩士生，研究方向為基于腦電的聽覺注意解碼

王晨名：男，碩士生，研究方向為腦機接口

張珈豪：男，碩士生，研究方向為腦機接口

通訊作者:
李金絮　l17339820919@163.com

中圖分類號: TN911.7
計量
- 文章訪問數: 111
- HTML全文瀏覽量: 39
- PDF下載量: 9
- 被引次數: 0
出版歷程
- 收稿日期: 2024-10-15
- 修回日期: 2025-02-19
- 網絡出版日期: 2025-02-25

TSF-AADNet: A Short-time Window ElectroEncephaloGram Auditory Attention Decoding Network Based on Multi-dimensional Characteristics of Temporal-spatial-frequency

School of Electronic and Information Engineering, Lanzhou Jiaotong University, Lanzhou 730000, China

Funds: Lanzhou Jiaotong University-Tianjin University Joint Innovation Fund (LH2023002), Tianjin Natural Science Foundation (21JCZXJC00190)

摘要

摘要: 在雞尾酒會場景中，聽力正常的人有能力選擇性地注意特定的說話者語音，但聽力障礙者在這種場景中面臨困難。聽覺注意力解碼(AAD)的目的是通過分析聽者的腦電信號(EEG)響應特征來推斷聽者關注的是哪個說話者?，F(xiàn)有的AAD模型只考慮腦電信號的時域或頻域單個特征或二者的組合(如時頻特征)，而忽略了時-空-頻域特征之間的互補性，這在一定程度上限制了模型的分類能力，進而影響了模型在決策窗口上的解碼精度。同時，已有AAD模型大多在長時決策窗口(1～5 s)中有較高的解碼精度。該文提出一種基于時-空-頻多維特征的短時窗口腦電信號聽覺注意解碼網絡(TSF-AADNet)，用于提高短時決策窗口(0.1～1 s)的解碼精度。該模型由兩個并行的時空、頻空特征提取分支以及特征融合和分類模塊組成，其中，時空特征提取分支由時空卷積塊和高階特征交互模塊組成，頻空特征提取分支采用基于頻空注意力的3維卷積模塊(FSA-3DCNN)，最后將雙分支網絡提取的時空和頻空特征進行融合，得到最終的聽覺注意力二分類解碼結果。實驗結果表明，TSF-AADNet模型在聽覺注意檢測數據集KULeuven(KUL)和聽覺注意檢測的腦電和音頻數據集(DTU)的0.1 s決策窗口下，解碼精度分別為91.8%和81.1%，與最新的AAD模型一種基于時頻融合的雙分支并行網絡(DBPNet)相比，分別提高了5.40%和7.99%。TSF-AADNet作為一種新的短時決策窗口的AAD模型，可為聽力障礙診斷以及神經導向助聽器研發提供有效參考。
- 腦電信號 /
- 聽覺注意力解碼 /
- 短時決策窗口 /
- 時空頻特征 /
- 神經導向助聽器
Abstract: Objective In cocktail party scenarios, individuals with normal hearing can selectively focus on specific speakers, whereas individuals with hearing impairments often struggle in such environments. Auditory Attention Decoding (AAD) aims to infer the speaker that a listener is attending to by analyzing their brain’s electrical response, recorded through ElectroEncephaloGram (EEG). Existing AAD models typically focus on a single feature of EEG signals in the time domain, frequency domain, or time-frequency domain, often overlooking the complementary characteristics across the time-space-frequency domain. This limitation constrains the model’s classification ability, ultimately affecting decoding accuracy within a decision window. Moreover, while many current AAD models exhibit high accuracy over long-term decision windows (1～5 s), real-time AAD in practical applications necessitates a more robust approach to short-term EEG signals. Methods This paper proposes a short-window EEG auditory attention decoding network, Temporal-Spatial-Frequency Features-AADNet (TSF-AADNet), designed to enhance decoding accuracy in short decision windows (0.1～1 s). TSF-AADNet decodes the focus of auditory attention from EEG signals, eliminating the need for speech separation. The model consists of two parallel branches: one for spatiotemporal feature extraction, and another for frequency-space feature extraction, followed by feature fusion and classification. The spatiotemporal feature extraction branch includes a spatiotemporal convolution block, a high-order feature interaction module, a two-dimensional convolution layer, an adaptive average pooling layer, and a fully connected (FC) layer. The spatiotemporal convolution block can effectively extract EEG features across both time and space dimensions, capturing the correlation between signals at different time points and electrode positions. The high-order feature interaction module further enhances feature interactions at different levels, improving the model’s feature representation ability. The frequency-space feature extraction branch is composed of an FSA-3DCNN module, a 3D convolutional layer, and an adaptive average pooling layer, all based on frequency-space attention. The FSA-3DCNN module highlights key information in the EEG signals’ frequency and spatial dimensions, strengthening the model’s ability to extract features specific to certain frequencies and spatial positions. The spatiotemporal features from the spatiotemporal attention branch and the frequency-space features from the frequency-space attention branch are fused, fully utilizing the complementarity between the spatiotemporal and frequency domains of EEG signals. This fusion enables the final binary decoding of auditory attention and significantly improves decoding performance within the short decision window. Results and Discussions The TSF-AADNet model proposed in this paper is evaluated on four types of short-time decision windows using the KUL and DTU datasets. The decision window durations range from very short to relatively short, covering various real-world scenarios such as instantaneous information capture in real-time communication and rapid auditory response situations. The experimental results are presented in Figure 4. Under the short decision window conditions, the TSF-AADNet model demonstrates excellent performance on both the KUL and DTU datasets. In testing with the KUL dataset, the model’s decoding accuracy increases steadily and significantly as the decision window duration extends from the shortest time. This indicates that the model effectively adapts to decision windows of varying lengths, accurately extracting key information from complex EEG signals to achieve precise decoding. Similarly, for the DTU dataset, the decoding accuracy of the TSF-AADNet model improves as the decision window lengthens. This result aligns with prior studies in the field, further confirming the robustness and effectiveness of TSF-AADNet in short-time decision window decoding tasks. Additionally, to evaluate the specific contributions of each module in the TSF-AADNet model, ablation experiments are conducted on various modules. Ablation of two single-branch networks, without feature fusion, highlights the importance of integrating time-space-frequency features simultaneously. The contributions of the frequency attention and spatial attention mechanisms in the FSA-3DCNN module are also verified by removing key modules and comparing the model’s performance before and after each removal. (Figure 5) Accuracy of the TSF-AADNet model for decoding auditory attention of all subjects on the KUL and DTU datasets with short decision windows; Average AAD accuracy of various models with four types of short decision windows on KUL and DTU datasets are shown. (Table 2) Conclusions To evaluate the performance of the proposed AAD model, TSF-AADNet is compared with five other AAD classification models across four short-time decision windows using the KUL and DTU datasets. The experimental results demonstrate that the decoding accuracy of the TSF-AADNet model is 91.8% for the KUL dataset and 81.1% for the DTU dataset under the 0.1 s decision window, exceeding the latest AAD model, DBPNet, by 5.40% and 7.99%, respectively. Therefore, TSF-AADNet, as a novel model for short-time decision window AAD, provides an effective reference for the diagnosis of hearing disorders and the development of neuro-oriented hearing aids.
- ElectroEncephaloGram (EEG) /
- Auditory Attention Decoding (AAD) /
- Short-term Decision Window /
- Temporal-Spatial-Frequency Features (TSF) /
- Neuro-oriented Hearing Aids

HTML全文

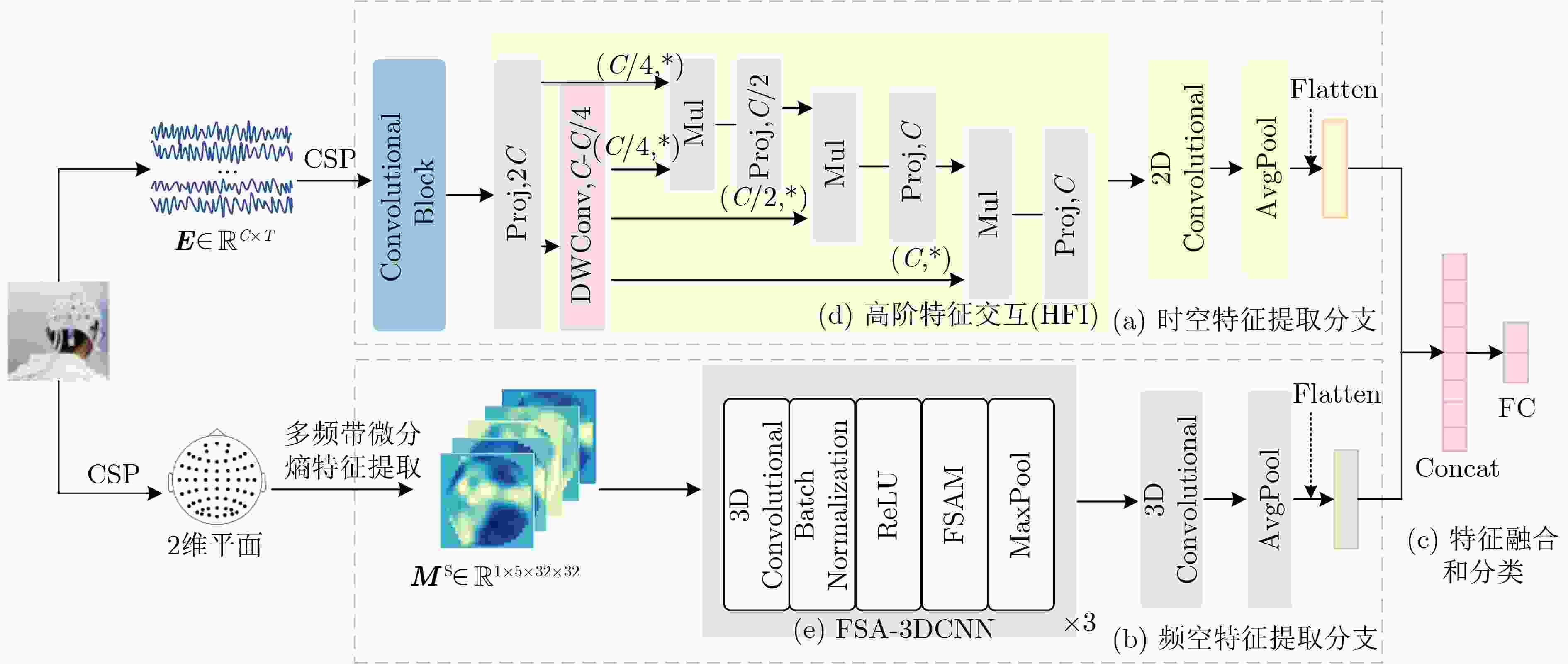

圖 1 TSF-AADNet示意圖

下載: 全尺寸圖片幻燈片

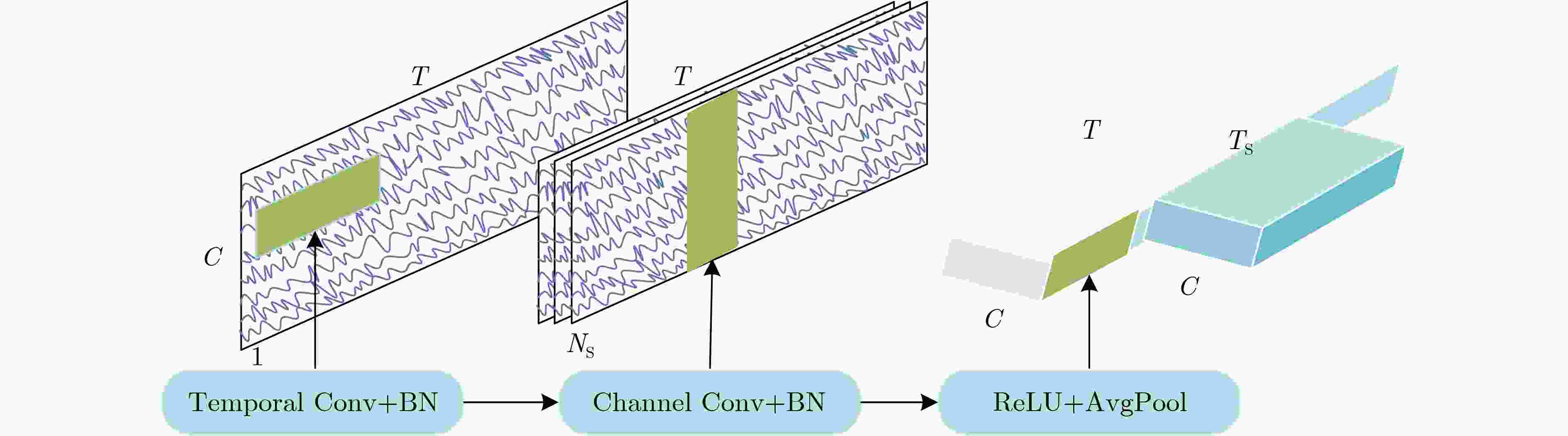

圖 2 時空卷積塊的示意圖，包括時間卷積層、空間卷積層和平均池化層

下載: 全尺寸圖片幻燈片

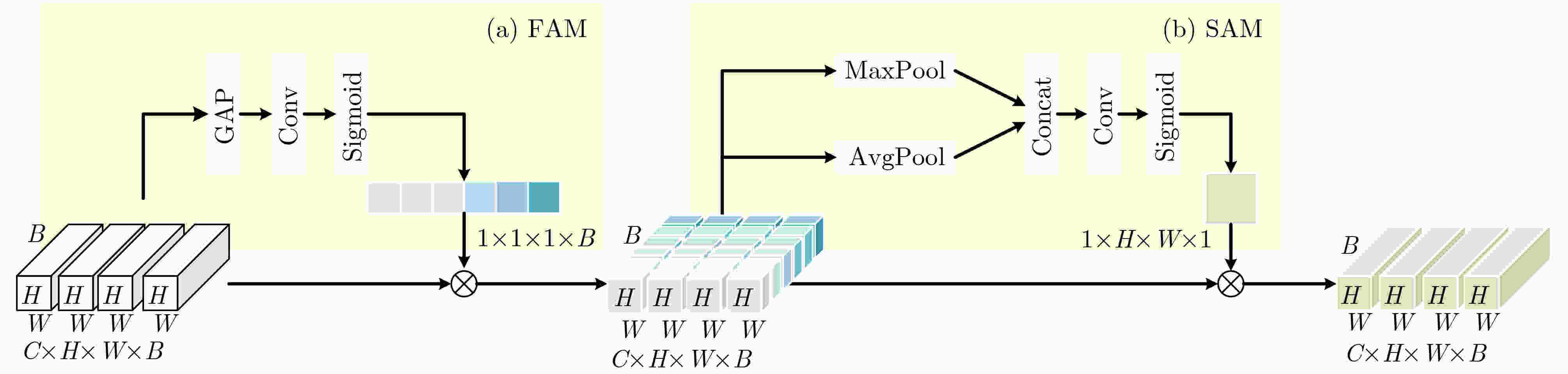

圖 3 頻率-空間注意力的示意圖：由頻率注意模塊(FAM)和空間注意模塊(SAM)組成

下載: 全尺寸圖片幻燈片

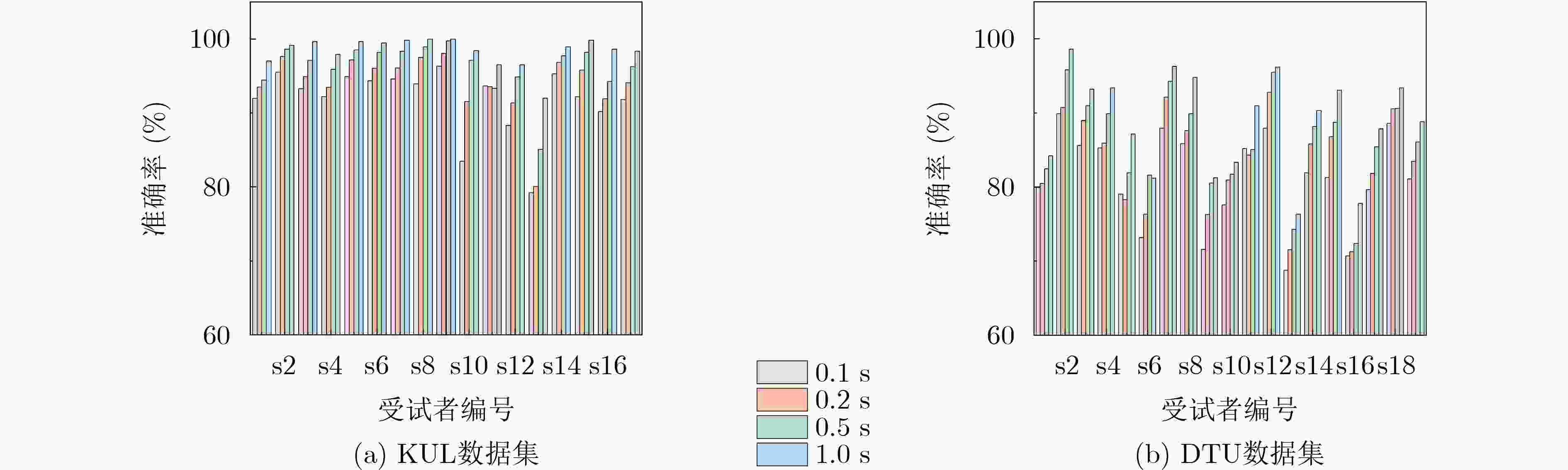

圖 4 TSF-AADNet模型在短決策窗口的KUL和DTU數據集上所有受試者聽覺注意解碼的準確性

下載: 全尺寸圖片幻燈片

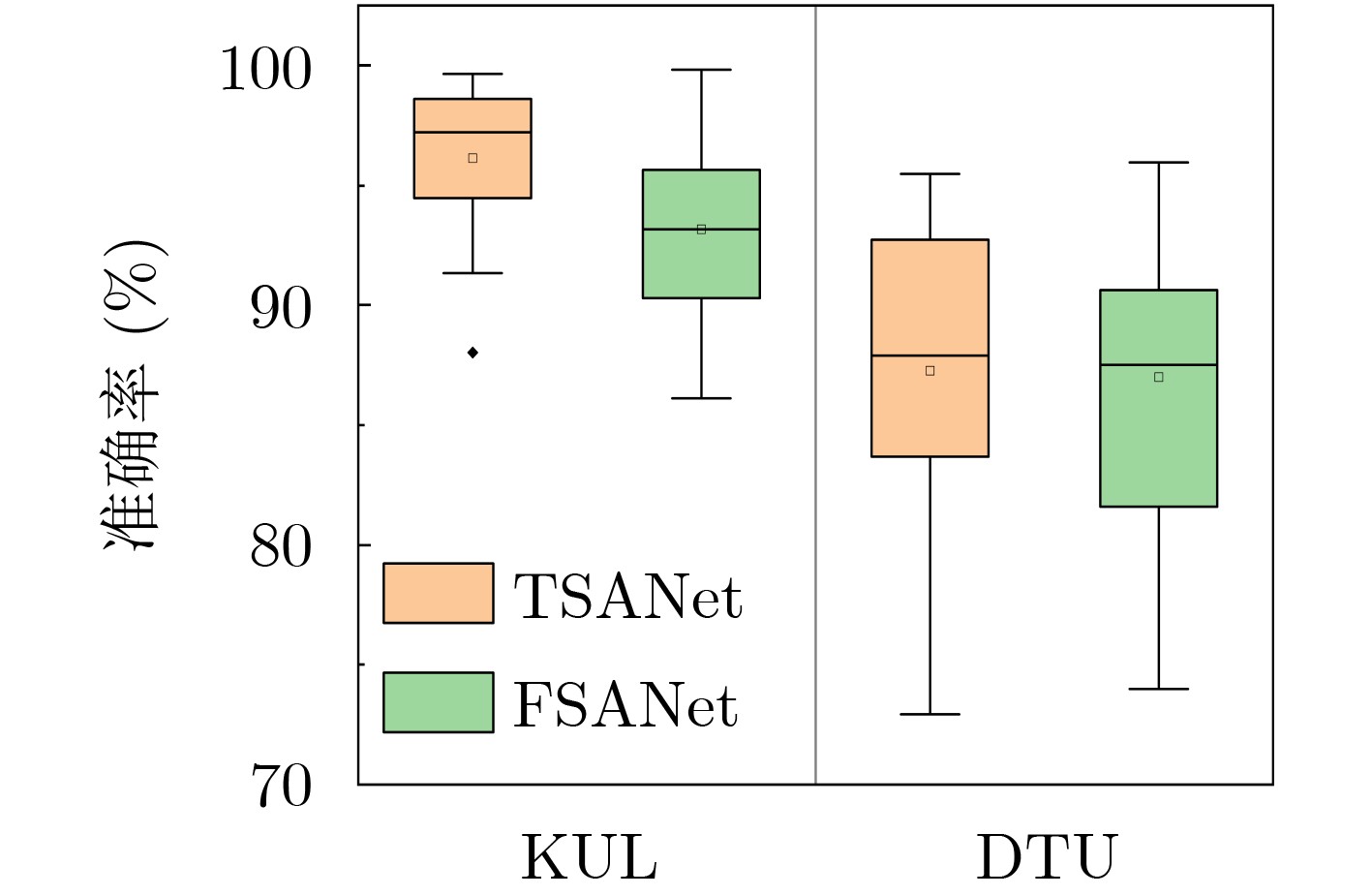

圖 5 TSAnet和FSAnet對KUL和DTU數據集中所有受試者的AAD準確度

下載: 全尺寸圖片幻燈片

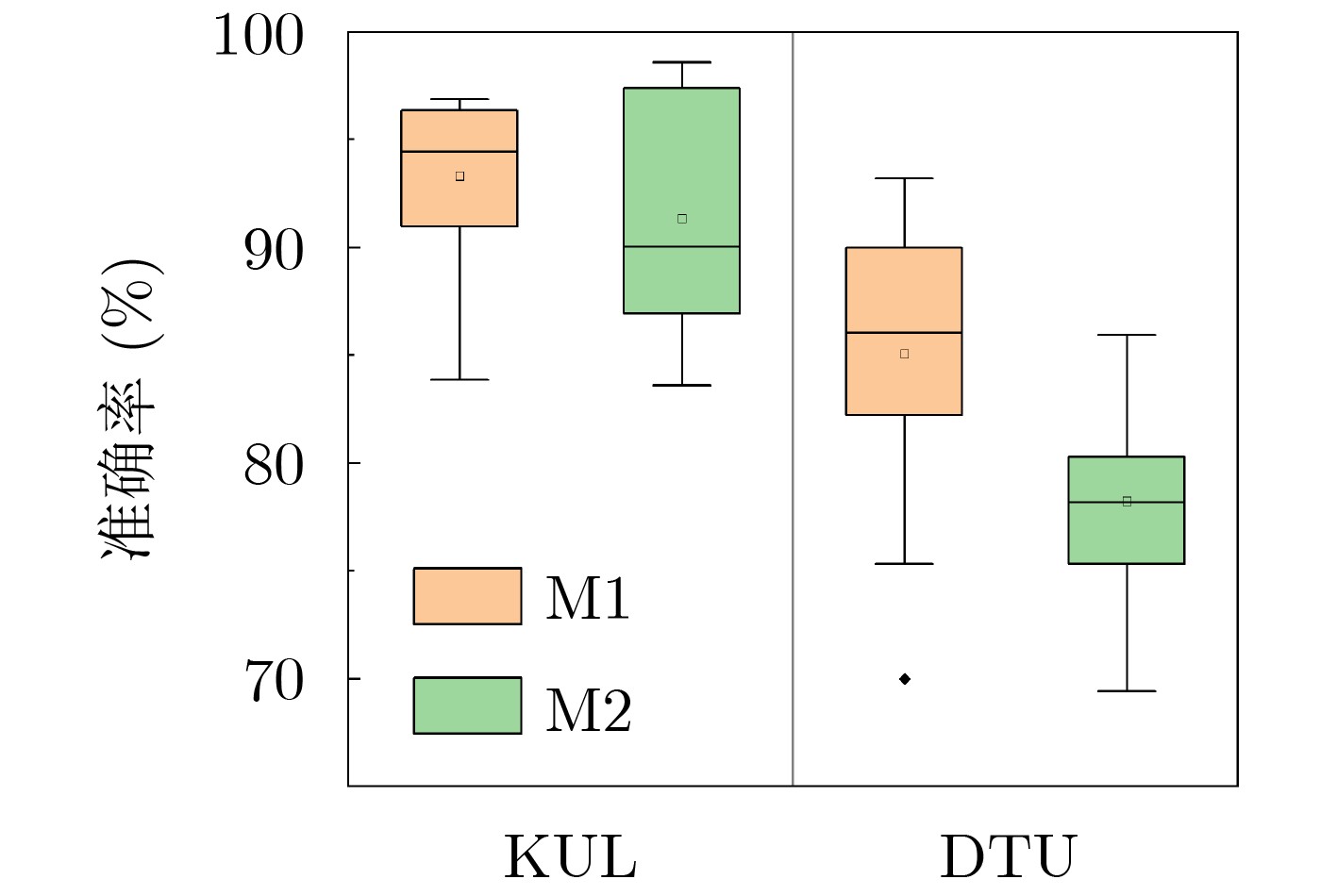

圖 6 M1和M2對KUL和DTU數據集中所有受試者的AAD準確度

下載: 全尺寸圖片幻燈片

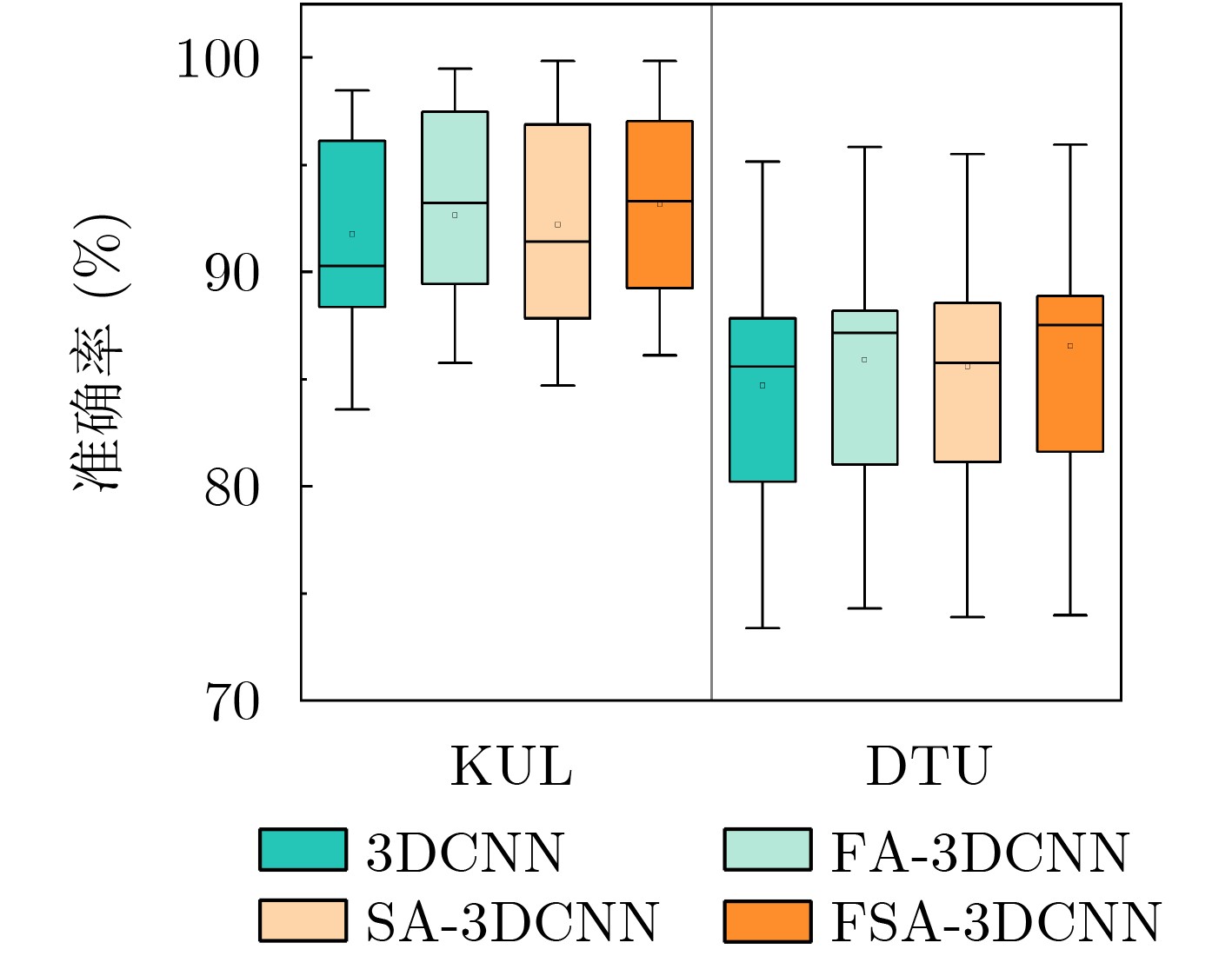

圖 7 不同注意力模型對KUL和DTU數據集中所有受試者的AAD準確度

下載: 全尺寸圖片幻燈片

表 1 時空、頻空特征提取分支和特征融合與分類層中各層的輸出值

分支	層	輸入特征維度	輸出特征維度
時空特征提取分支(TSAnet)	卷積塊(Convolutional Block)	$1 \times 64 \times 128$	$64 \times 1 \times 64$
	高階特征交互模塊(HFI)	$64 \times 1 \times 64$	$64 \times 1 \times 64$
	2維卷積層	$64 \times 1 \times 64$	$4 \times 1 \times 64$
	自適應平均池化層	$4 \times 1 \times 64$	$4 \times 1 \times 1$
	全連接層	$4 \times 1 \times 1$	$4$
頻空特征提取分支(FSAnet)	FSA-3DCNN	$1 \times 5 \times 32 \times 32$	$128 \times 5 \times 4 \times 4$
	3維卷積層	$128 \times 5 \times 4 \times 4$	$4 \times 5 \times 4 \times 4$
	自適應平均池化層	$4 \times 5 \times 4 \times 4$	$4 \times 1 \times 1 \times 1$
	全連接層	$4 \times 1 \times 1 \times 1$	$4$
特征融合與分類層	拼接(Concat)	8	8
特征融合與分類層	全連接層	8	2

下載: 導出CSV

表 2 KUL, DTU數據集上4種短決策窗口的各種模型的平均AAD準確率(%)

數據集	模型	樣本時長
數據集	模型	0.1	0.2	0.5	1.0
KUL	CNN^[14]	74.3	78.2	80.6	84.1
	STAnet^[17]	80.8	84.3	87.2	90.1
	RGCnet^[28]	87.6	88.9	90.1	91.4
	mRFInet^[29]	87.4	89.7	90.8	92.5
	DBPNet^[30]	87.1	89.9	92.9	95.0
	TSF-AADNet(本文)	91.8	94.1	96.3	98.3
DTU	CNN^[14]	56.7	58.4	61.7	63.3
	STAnet^[17]	65.7	68.1	70.8	71.9
	RGCnet^[28]	66.4	68.4	72.1	76.9
	mRFInet^[29]	65.4	68.7	72.3	75.1
	DBPNet^[30]	75.1	78.9	81.9	83.9
	TSF-AADNet(本文)	81.1	83.5	86.1	88.8

下載: 導出CSV

表 3 實驗中使用的腦電圖數據集KUL, DTU的詳細信息

數據集	受試者個數	刺激語言	每個受試者的試驗持續時間	總時長
KUL	16	佛蘭德語	48	12.8
DTU	18	丹麥語	50	15.0

下載: 導出CSV
