基于改進U型網絡的火焰光場圖像降噪及溫度場重建

單良; 孫健; 洪波; 孔明

doi:10.11999/JEIT240836

基于改進U型網絡的火焰光場圖像降噪及溫度場重建

doi: 10.11999/JEIT240836

單良¹,
孫健¹,
洪波¹,
孔明^2, ,

1.
中國計量大學信息工程學院浙江省電磁波信息技術與計量檢測重點實驗室杭州 310018
2.
中國計量大學計量測試工程學院杭州 310018

基金項目: 國家自然科學基金(51874264, 52076200)，中央引導地方科技發展資金項目(2023ZY1008)

詳細信息

作者簡介:
單良：女，教授，碩士生導師，研究方向?yàn)樾盘柼幚?、光電檢測

孫?。耗?，碩士生，研究方向?yàn)樾盘柼幚?/p>
洪波：女，講師，碩士生導師，研究方向?yàn)樾盘柼幚?/p>
孔明：男，教授，博士生導師，研究方向?yàn)楣怆姍z測

通訊作者:
孔明　mkong@cjlu.edu.cn

中圖分類號: TN919.81; TP391
計量
- 文章訪問數: 37
- HTML全文瀏覽量: 13
- PDF下載量: 9
- 被引次數: 0
出版歷程
- 收稿日期: 2024-10-08
- 修回日期: 2025-02-22
- 網絡出版日期: 2025-03-05

Noise Reduction and Temperature Field Reconstruction of Flame Light Field Images Based on Improved U-network

SHAN Liang¹,
SUN Jian¹,
HONG Bo¹,
KONG Ming^{2
, ,}

1.
Key Laboratory of Electromagnetic Wave Information Technology and Metrology of Zhejiang Province, College of Information Engineering, China Jiliang University, Hangzhou 310018, China
2.
College of Metrology and Measurement Engineering, China Jiliang University, Hangzhou 310018, China

Funds: The National Natural Science Foundation of China (51874264, 52076200), The Central Guiding Local Science and Technology Development Fund Projects of China (2023ZY1008)

摘要

摘要: 火焰光場圖像在形成過程中夾雜的輻射噪聲和成像噪聲會降低火焰溫度場3維重建精度，該文提出一種基于改進U型網絡(UNet)的降噪模型，該模型針對輻射噪聲和成像噪聲的特性以及復雜火焰圖像的紋理信息設計了背景凈化模塊和邊緣信息優化模塊。通過密集卷積操作對圖像背景層進行特征提取，著重凈化夾雜在圖像背景層的輻射噪聲。通過UNet模塊中對稱的編碼器-解碼器網絡結構和跳躍連接，對通道間的輻射噪聲和表層的成像噪聲降噪。最后利用邊緣優化模塊對圖像細節信息進行提取，從而獲得更高質量的火焰光場圖像。數值模擬部分，在火焰光場圖像上混合加入信噪比為10 dB的輻射噪聲和成像噪聲，經該文模型降噪后的峰值信噪比(PSNR)和結構相似指數(SSIM)高達47 dB和0.9931，與其他降噪模型相比有明顯優勢。隨后，將火焰光場圖像先經該文降噪模型降噪，再進行溫度場重建，測得重建平均相對誤差比未降噪時降低了約37%～57%，明顯提升了火焰溫度場3維重建的精度。實驗部分，獲取真實蠟燭火焰和丁烷火焰光場圖像，經該文降噪模型降噪后的蠟燭火焰圖像SSIM高達0.9870，降噪后的丁烷燃燒火焰圖像SSIM為0.9808。
- 圖像處理 /
- 圖像降噪 /
- 深度學習 /
- 火焰光場圖像 /
- 3維溫度場重建
Abstract: Objective This study establishes the nonlinear relationship between flame light field images and the 3D temperature field using deep learning techniques, enabling rapid 3D reconstruction of the flame temperature field. However, light-field images are prone to radiation and imaging noise during transmission and imaging, which significantly degrades image quality and reduces the accuracy of temperature field reconstruction. Therefore, denoising of flame light field images, with maximum preservation of texture and edge details, is critical for high-precision 3D reconstruction. Deep learning-based denoising algorithms are capable of accommodating a broad range of noise distributions and are particularly effective in enhancing texture and contour information without requiring extensive prior knowledge. Given the complexity of noise in flame light field images, deep learning methods present an optimal solution for denoising. Methods This paper presents a denoising model based on an improved UNet network, designed to address radiation and imaging noise, as well as the texture information in complex flame images. The model reduces noise and optimizes the flame light field image through three modules: the background purification module, the UNet denoising module, and the edge optimization module. Feature extraction is performed on the image background layer using dense convolution operations, with a focus on purifying the radiated noise embedded in the background. The symmetrical encoder-decoder network structure and skip connections in the UNet module help to reduce both radiation noise between channels and imaging noise on the surface. The edge optimization module is tailored to extract detailed information from the image, aiming to enhance the quality of the flame light field images. Comparative and ablation experiments confirm the superior noise reduction performance and effectiveness of the proposed modules. Results and Discussions In the numerical simulation, radiation noise and imaging noise are added to the flame light field image, generating three types of datasets: single radiation noise, single imaging noise, and mixed noise. In the denoising experiment, the BUE denoising model is compared with UNet, CBDNet, DnCNN, and BRDNet. The denoising results (Fig. 4) show that the PSNR and SSIM values of our BUE model exceed those of the other models, reaching 47 dB and 0.9931, respectively. Analysis of the four denoised texture images (Fig. 5) demonstrates that the BUE model effectively removes background noise while preserving internal details, such as texture and contour features. Ablation experiments are also conducted by adding the BPM and EIEM modules to the UNet benchmark model. The experimental results (Fig. 5, Fig. 6) confirm the effectiveness of the BPM and EIEM modules. Subsequently, the flame light field image is denoised using the proposed model, followed by reconstruction of the temperature field (Fig. 8). The average relative error of the reconstruction is reduced by approximately 37% to 57% compared to the non-denoised case, significantly improving the accuracy of the 3D flame temperature field reconstruction. In the real-world experiment, light field images of a candle flame and a butane flame are obtained. The SSIM values after denoising using the BUE model are 0.9870 and 0.9808, respectively. Conclusions This paper presents a BUE denoising method based on the UNet model, incorporating a background purification module and an edge information enhancement module. This approach effectively extracts the background, reduces noise, and enhances contour and texture details in noisy flame light field images. The noise reduction performance of the model is evaluated through numerical simulations, and the results demonstrate the following: (1) Compared to UNet, CBDNet, DnCNN, and BRDNet, the proposed BUE denoising model shows significant advantages. Under mixed noise conditions with a signal-to-noise ratio of 10 dB, the model achieves a PSNR of 47 dB and an SSIM of 0.9931. Specifically, the PSNR improves by approximately 23.68% compared to UNet and 4.44% compared to DnCNN. (2) By integrating BUE as a denoising preprocessing module into the temperature field reconstruction model, the results show that incorporating denoising reduces the average relative error by approximately 37% to 57% compared to reconstruction without denoising. (3) Real candle flame and butane flame light field images are acquired, and the proposed noise reduction model achieves SSIM values of 0.9870 for the candle flame image and 0.9808 for the butane flame image after denoising.
- Image processing /
- Image noise reduction /
- Deep learning /
- Flame light field images /
- 3D temperature field reconstruction

HTML全文

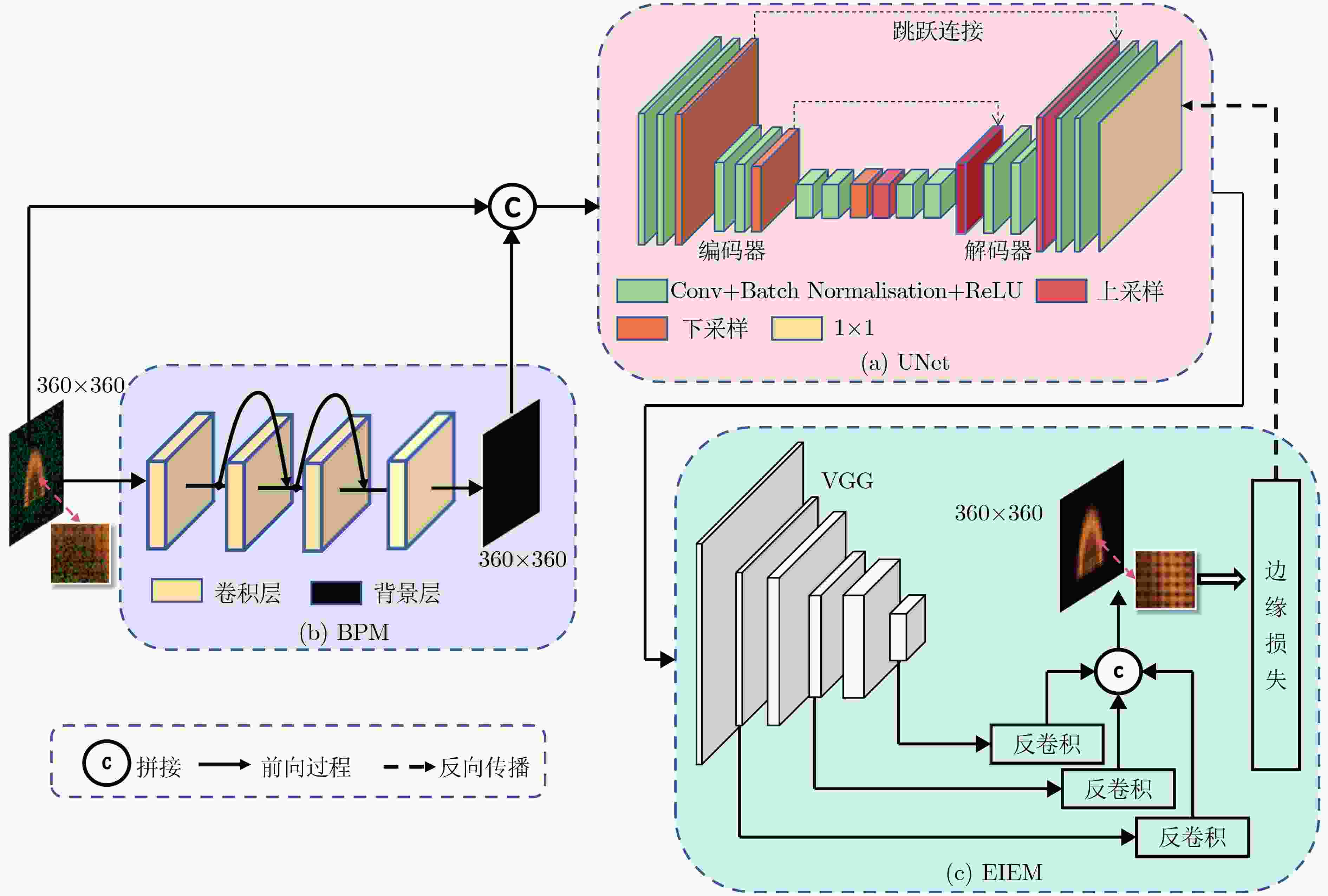

圖 1 BUE降噪模型整體結構

下載: 全尺寸圖片幻燈片

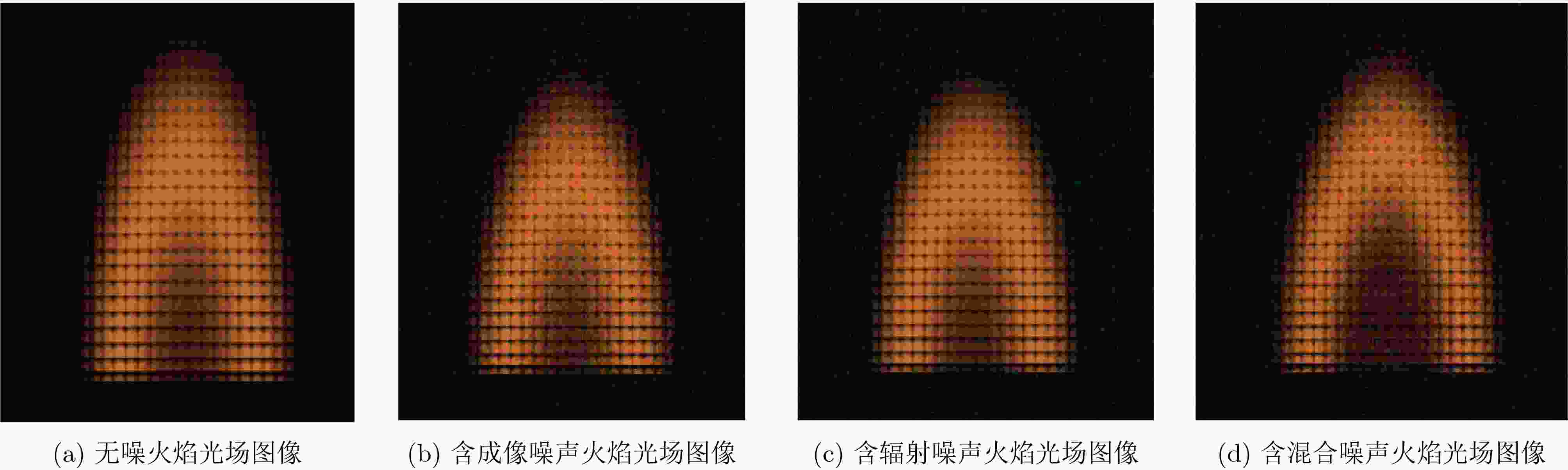

圖 2 火焰光場圖像示例

下載: 全尺寸圖片幻燈片

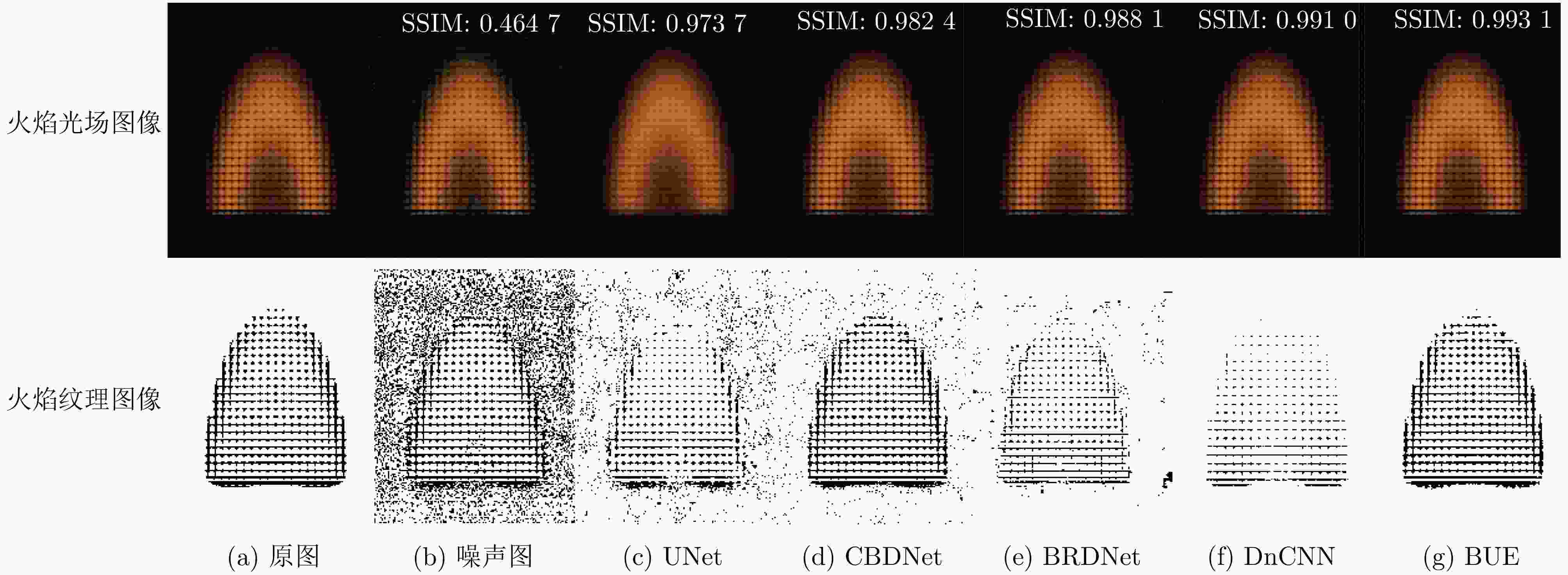

圖 3 不同降噪算法處理后的火焰圖像

下載: 全尺寸圖片幻燈片

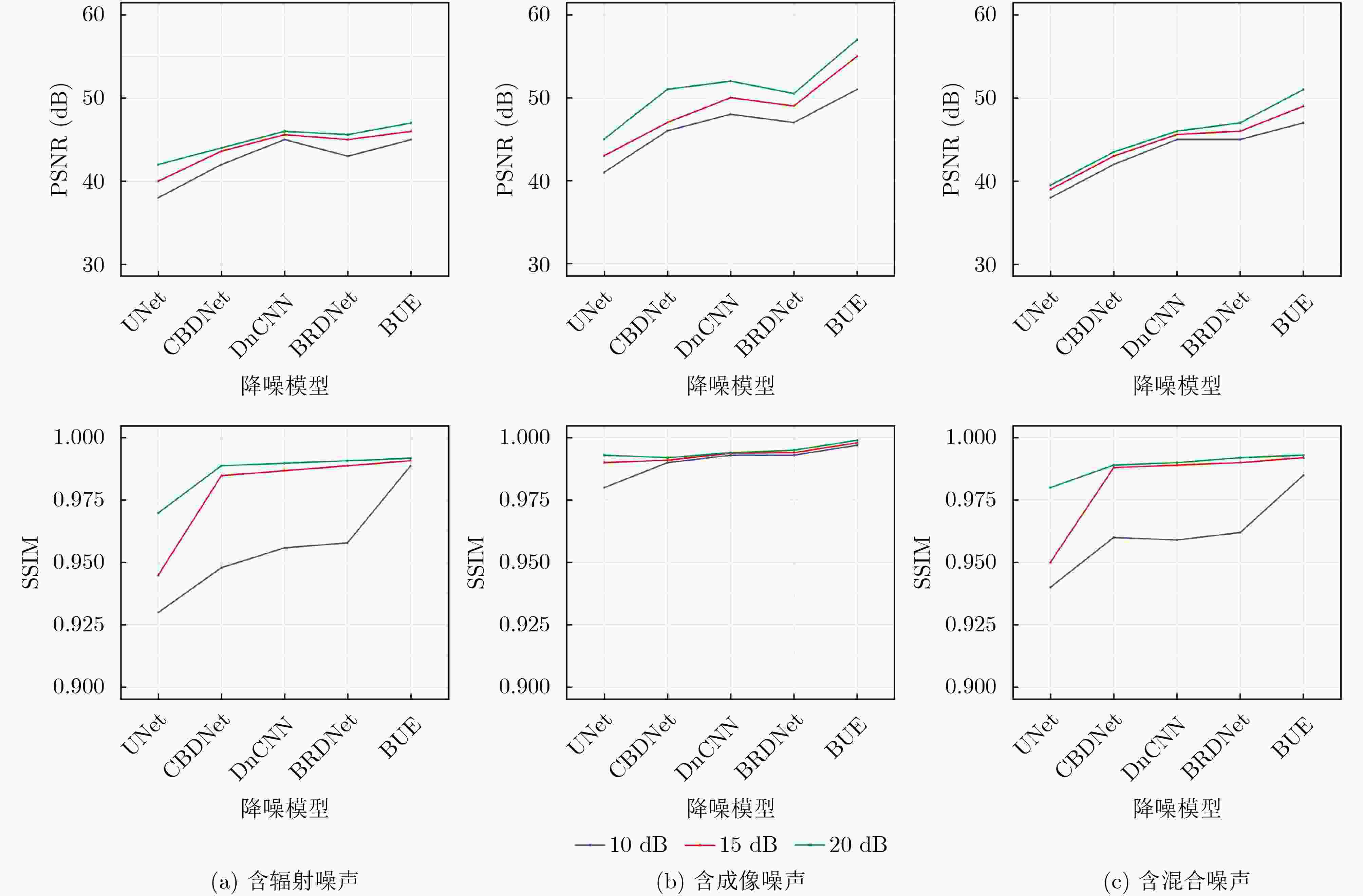

圖 4 不同降噪算法處理后的火焰圖像降噪結果

下載: 全尺寸圖片幻燈片

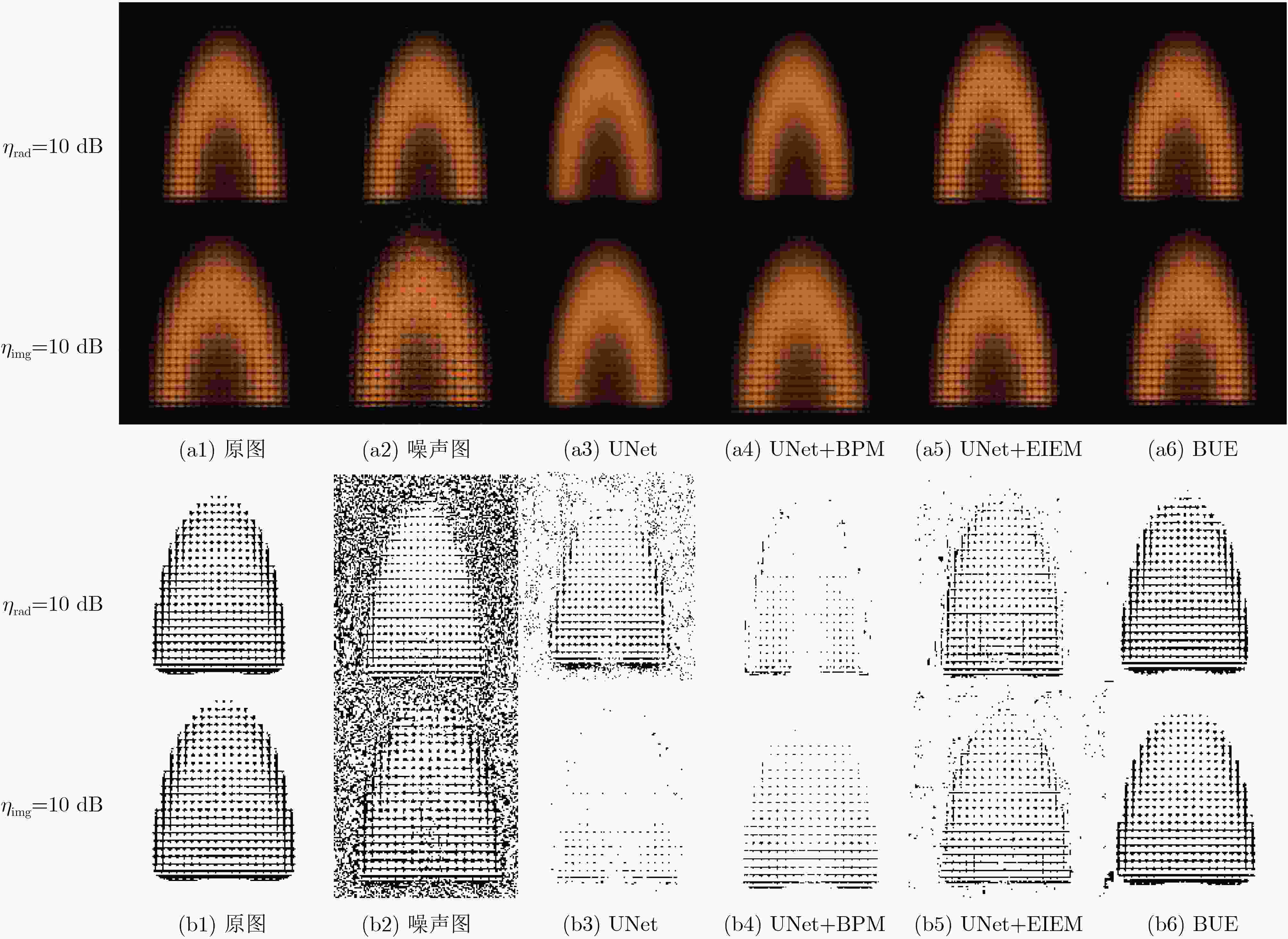

圖 5 BPM和EIEM模塊在降噪過程中的效果

下載: 全尺寸圖片幻燈片

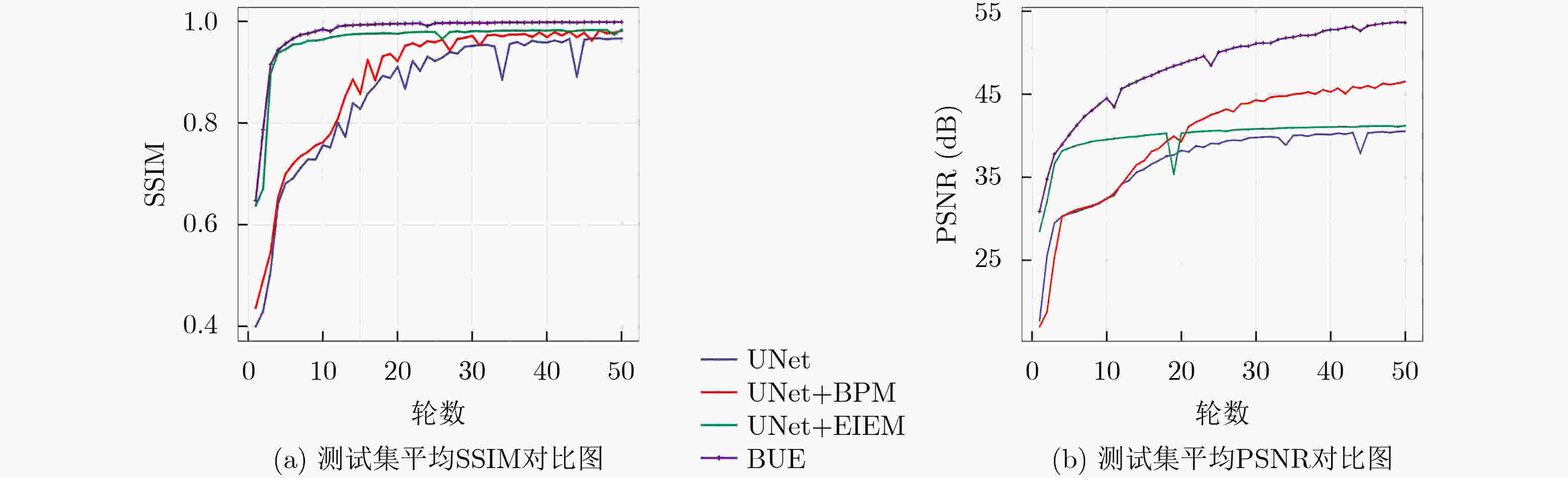

圖 6 測試集消融實驗對比圖

下載: 全尺寸圖片幻燈片

圖 7 含降噪預處理的火焰溫度場3維重建模型

下載: 全尺寸圖片幻燈片

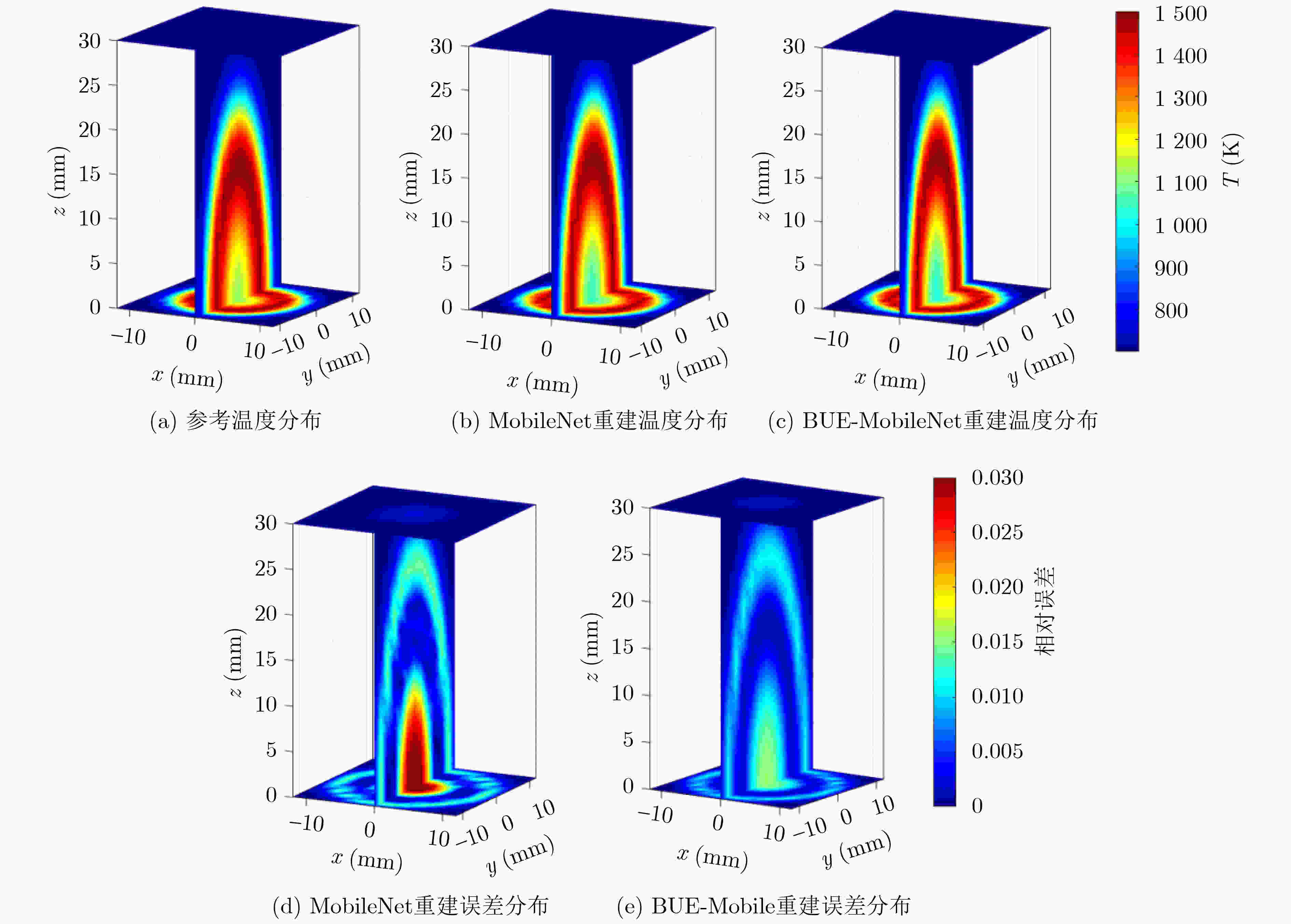

圖 8 重建溫度分布及誤差分布

下載: 全尺寸圖片幻燈片

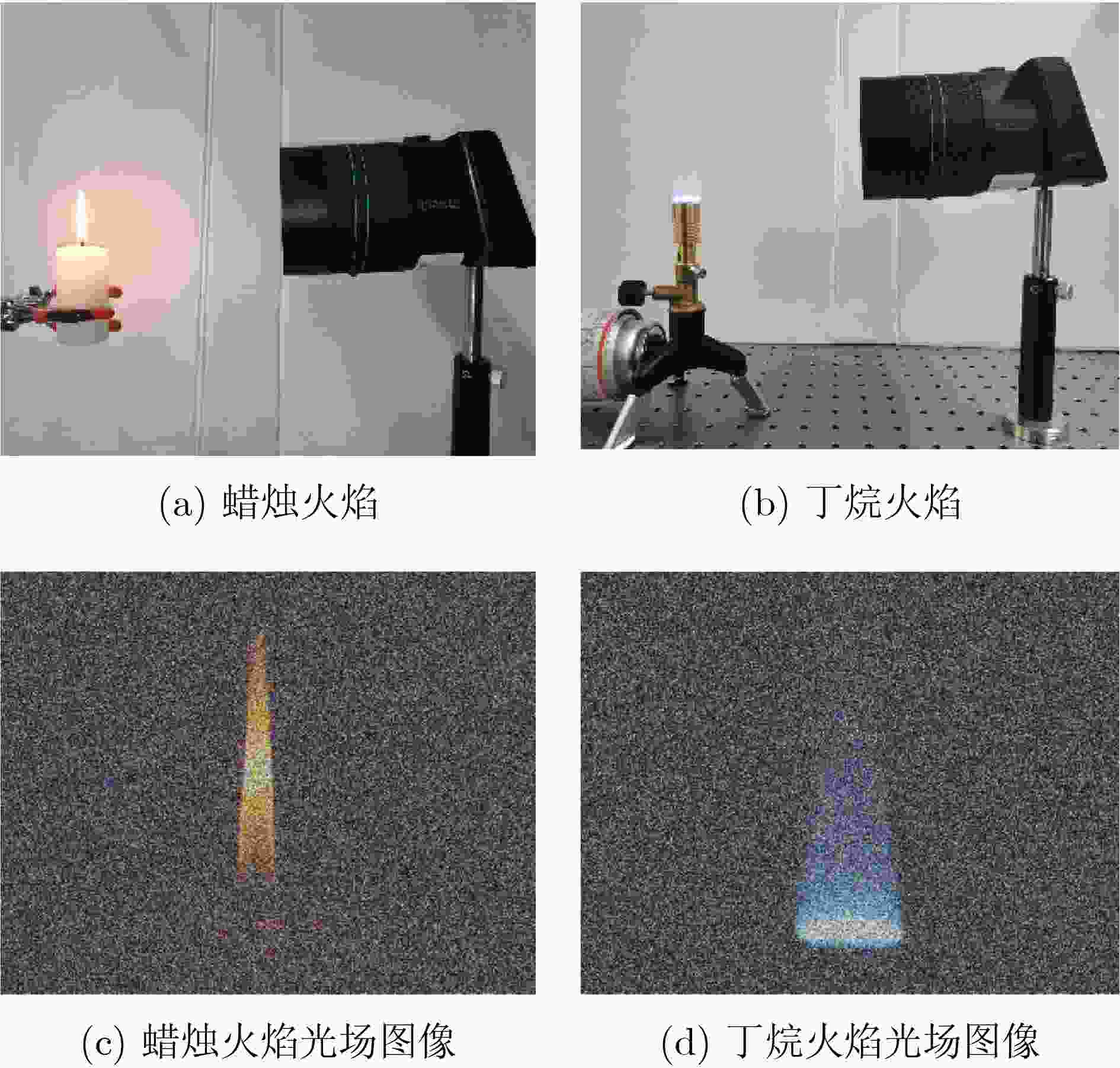

圖 9 火焰光場圖像采集

下載: 全尺寸圖片幻燈片

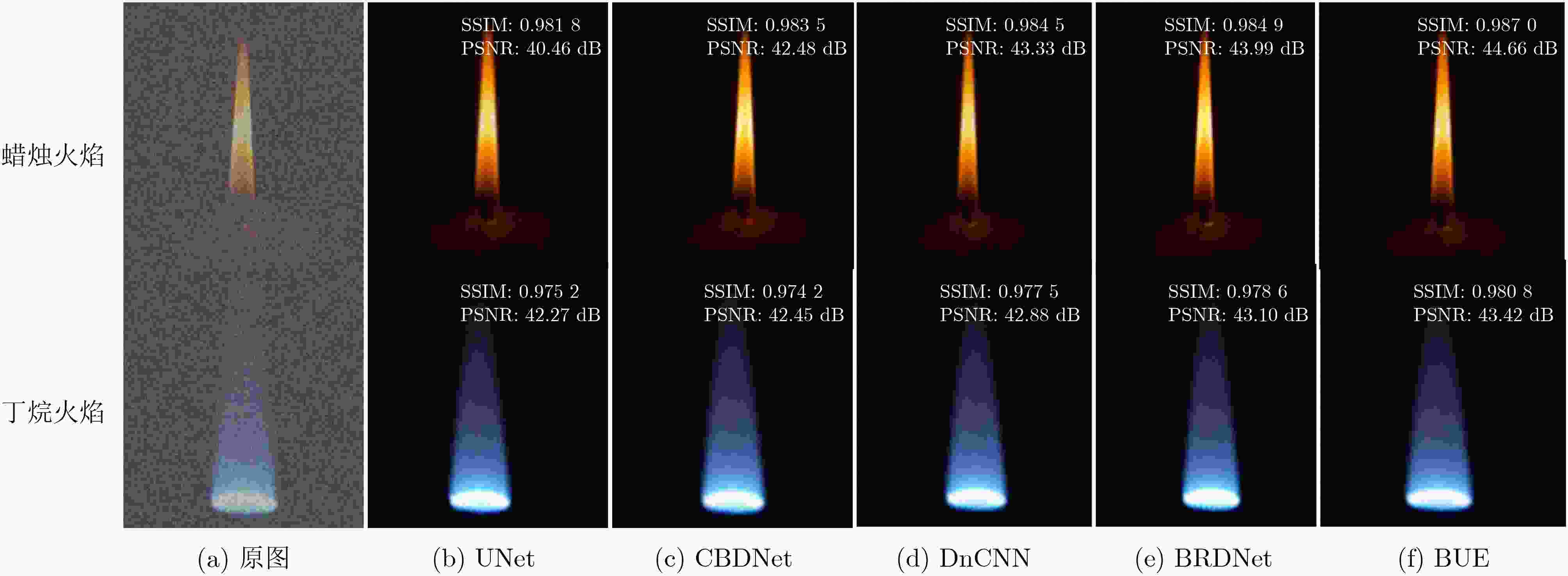

圖 10 不同算法對蠟燭火焰和丁烷火焰的降噪結果對比
