基于生成對抗網絡輔助多智能體強化學習的邊緣計算網絡聯邦切片資源管理

林艷; 夏開元; 張一晉

doi:10.11999/JEIT240773

基于生成對抗網絡輔助多智能體強化學習的邊緣計算網絡聯邦切片資源管理

doi: 10.11999/JEIT240773

南京理工大學電子工程與光電技術學院南京 210094

基金項目: 國家自然科學基金(62001225, 62071236)

詳細信息

作者簡介:
林艷：女，副教授，研究方向為車聯網、無人機通信等6G網絡無線智能資源分配

夏開元：男，碩士生，研究方向為網絡切片資源分配與強化學習

張一晉：男，教授，研究方向為序列設計、無線網絡與人工智能

通訊作者:
張一晉　yijin.zhang@gmail.com

中圖分類號: TN929.5
計量
- 文章訪問數: 42
- HTML全文瀏覽量: 15
- PDF下載量: 1
- 被引次數: 0
出版歷程
- 收稿日期: 2024-09-09
- 修回日期: 2025-02-19
- 網絡出版日期: 2025-02-28

Federated Slicing Resource Management in Edge Computing Networks based on GAN-Assisted Multi-Agent Reinforcement Learning

School of Electronic and Optical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China

Funds: The National Natural Science Foundation of China (62001225, 62071236)

摘要

摘要: 為滿足動態邊緣計算網絡場景下用戶差異化服務需求，該文提出一種基于生成對抗網絡(GAN)輔助多智能體強化學習(RL)的聯邦切片資源管理方案。首先，考慮未知時變信道和隨機用戶流量到達的場景，以同時優化長期平均服務等待時延和服務滿意率為目標，構建聯合帶寬和計算切片資源管理優化問題，并進一步建模為分布式部分可觀測馬爾可夫決策過程 (Dec-POMDP)。其次，運用多智能體競爭雙深度Q網絡(D3QN)方法，結合GAN算法對狀態值分布多模態學習的優勢，以及利用聯邦學習框架促使智能體合作學習，最終實現僅需共享各智能體生成網絡加權參數即可完成切片資源管理協同決策。仿真結果表明，所提方案相較于基準方案能夠在保護用戶隱私的前提下，降低用戶平均服務等待時延28%以上，且同時提升用戶平均服務滿意率8%以上。
- 邊緣計算 /
- 網絡切片 /
- 多智能體強化學習 /
- 聯邦學習 /
- 生成對抗網絡
Abstract: Objective To meet the differentiated service requirements of users in dynamic Edge Computing (EC) network scenarios, network slicing technology has become a crucial enabling approach for EC networks to offer differentiated edge services. It facilitates flexible allocation and customized management of communication and computation resources by dividing network resources into multiple independent sub-slices. However, traditional slicing resource management methods cannot handle the time-varying wireless channel conditions and the randomness of service arrivals in EC networks. Additionally, existing intelligent slicing resource management schemes based on deep reinforcement learning face challenges, including the need for extensive information sharing, privacy leakage, and unstable training convergence. To address these challenges, the integration of Multi-Agent Reinforcement Learning (MARL) and Federated Learning (FL) allows for experience sharing among agents while protecting users’ privacy. Furthermore, Generative Adversarial Network (GAN) is used to generate state-action value distributions, improving the ability of traditional MARL methods to learn state-value information. By modeling the joint bandwidth and computing slicing resource management optimization problem as a Decentralized Partially Observable Markov Decision Process (Dec-POMDP), collaborative decision-making for slicing resource management is achieved by sharing only the generator network parameters of each agent through the combination of FL and GAN. This study provides a federated collaborative decision-making framework for addressing the slicing resource management problem in EC scenarios and offers theoretical support for enhancing the utilization efficiency of edge slicing resources while preserving users’ privacy. Methods The core concept of the proposed federated slicing resource management scheme is to first employ both GAN technology and the D3QN algorithm for local training within a multi-agent framework. The FL architecture is then used to share the generator network parameters of each agent, facilitating collaborative decision-making for joint bandwidth and computing slicing resource management. In this approach, each Access Point (AP) agent collects data on the total number of tasks to be transmitted and the number of Central Processing Unit (CPU) cycles required for computing tasks in each associated slice as local observations during each training time slot. Each agent subsequently selects the optimal local bandwidth and computing resource management action, obtaining the system reward, which consists of the average service waiting delay and service satisfaction rate, as well as the observation for the next time slot to train the local network. During the training process, each AP agent maintains its own main generator network, target generator network, and discriminator network. In each training episode, the D3QN algorithm is applied to decompose the state-action values, and GAN is used to perform multi-modal learning of the state value distribution, thus completing the local training. After each training episode, the AP agents upload their main generator network parameters for federated aggregation and receive the global main generator network parameters for the next training episode. Results and Discussions By employing the D3QN algorithm and integrating the advantages of GAN within the MARL framework, alongside leveraging FL to share learning experiences among agents while protecting users’ privacy, the proposed scheme reduces the long-term service waiting delay and improves the long-term average service satisfaction rate. Simulation results demonstrate that the proposed scheme achieves the highest average cumulative reward after approximately 500 episodes (Fig. 3), with a notable improvement of at least 10% in convergence performance compared to the baselines. Furthermore, the scheme strikes a better balance between average service waiting delay and average service satisfaction rate (Fig. 4). Additionally, it delivers superior performance in terms of user average service satisfaction rate, with at least an 8% improvement under varying user numbers (Fig. 5), highlighting its effectiveness in resource management under different task loads. Moreover, the proposed scheme reduces the average service waiting delay by at least 28% (Fig. 6) under varying numbers of agents. Conclusions This paper investigates the joint bandwidth and computing slicing resource management problem in dynamic, unknown EC network scenarios and proposes a federated slicing resource management scheme based on GAN-assisted MARL. The proposed scheme enhances the agents’ ability to learn state-value information and promotes collaborative learning by sharing the training network parameters of agents, which ultimately reduces long-term service waiting delays and improves long-term average service satisfaction rates, while protecting users’ privacy. Simulation results show that: (1) The cumulative reward convergence performance of the proposed scheme improves by at least 10% compared to the baselines; (2) The average service satisfaction rate of the proposed scheme is more than 8% higher than that of the baselines under varying user numbers; (3) The average service waiting delay of the proposed scheme is reduced by at least 28% compared to the baselines under varying agent numbers. However, this study only considers ideal, static user scenarios and interference-free communication conditions. Future work should incorporate more real-world dynamics, such as time-varying user mobility and complex multi-user interference.
- Edge Computing (EC) /
- Network Slicing /
- Multi-Agent Reinforcement Learning (MARL) /
- Federated Learning (FL) /
- Generative Adversarial Network (GAN)

HTML全文

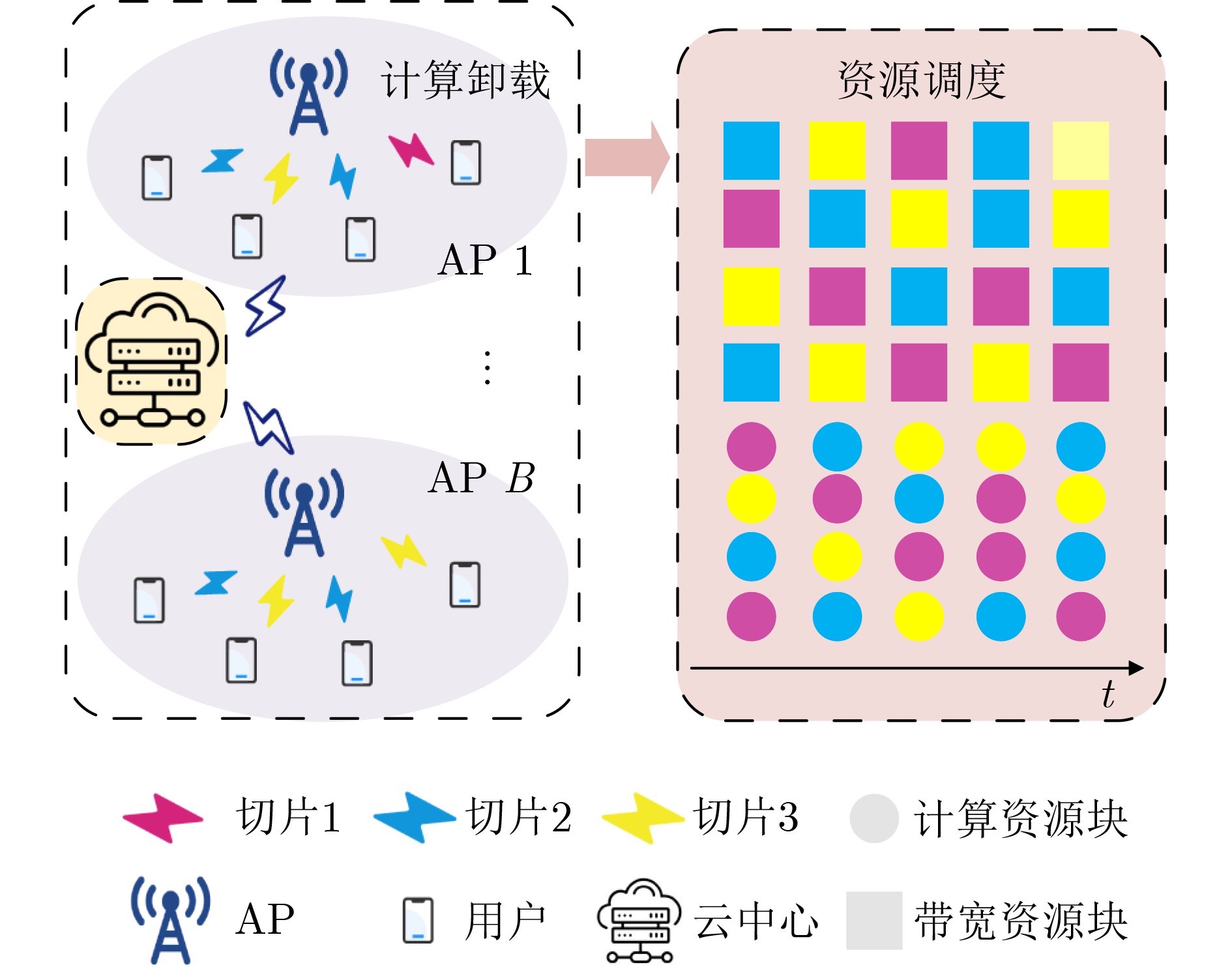

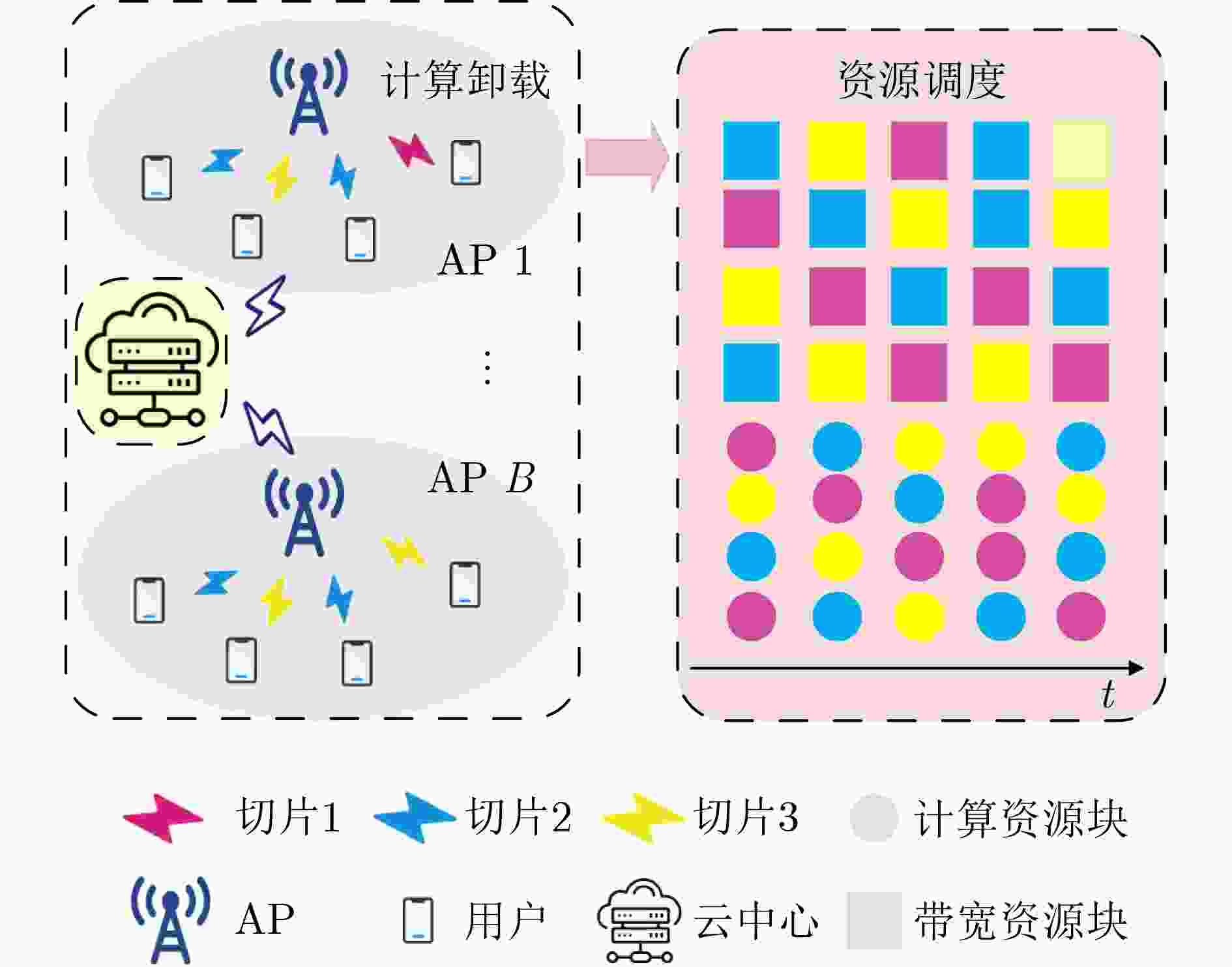

圖 1 網絡切片輔助的邊緣計算網絡系統模型

下載: 全尺寸圖片幻燈片

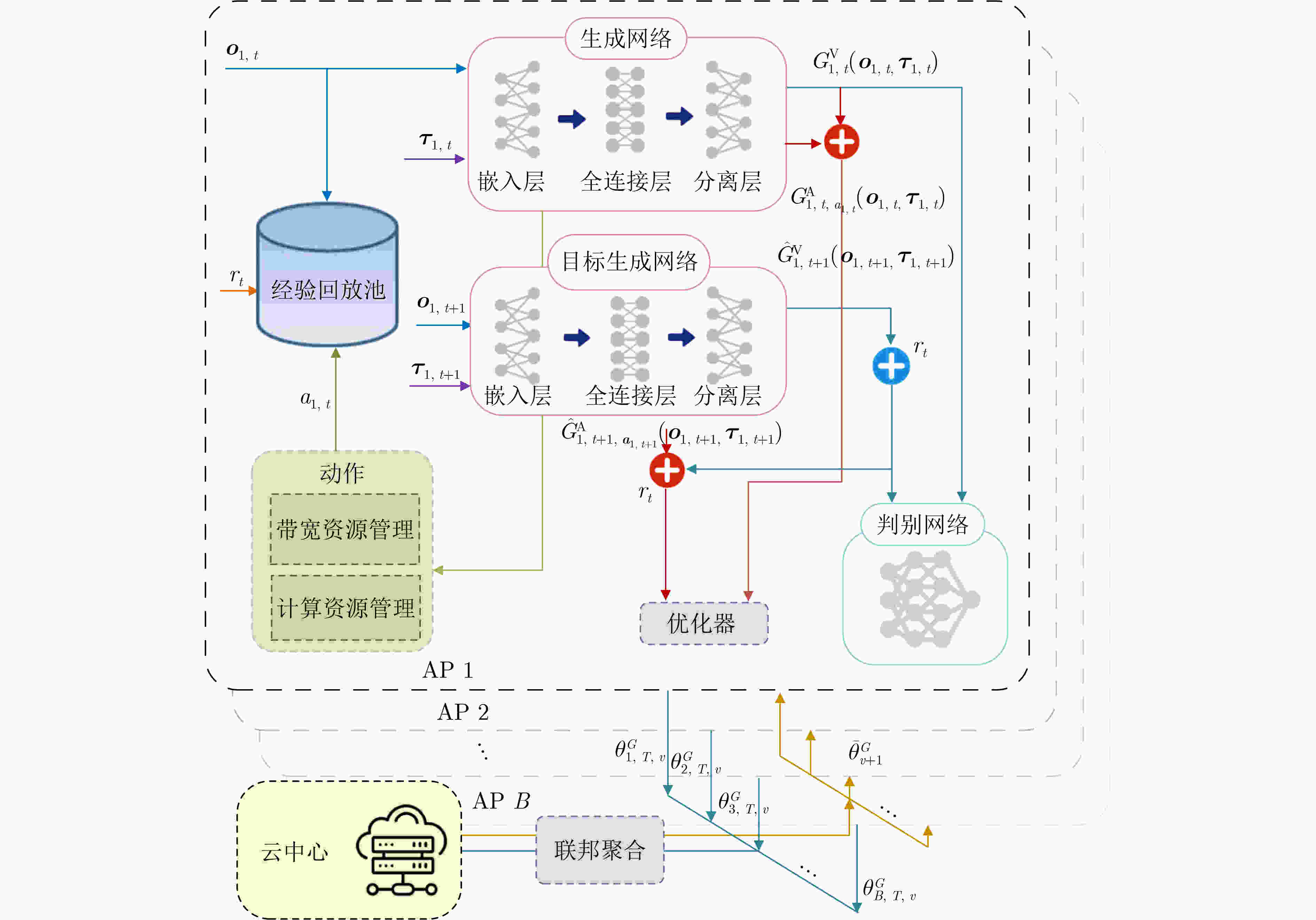

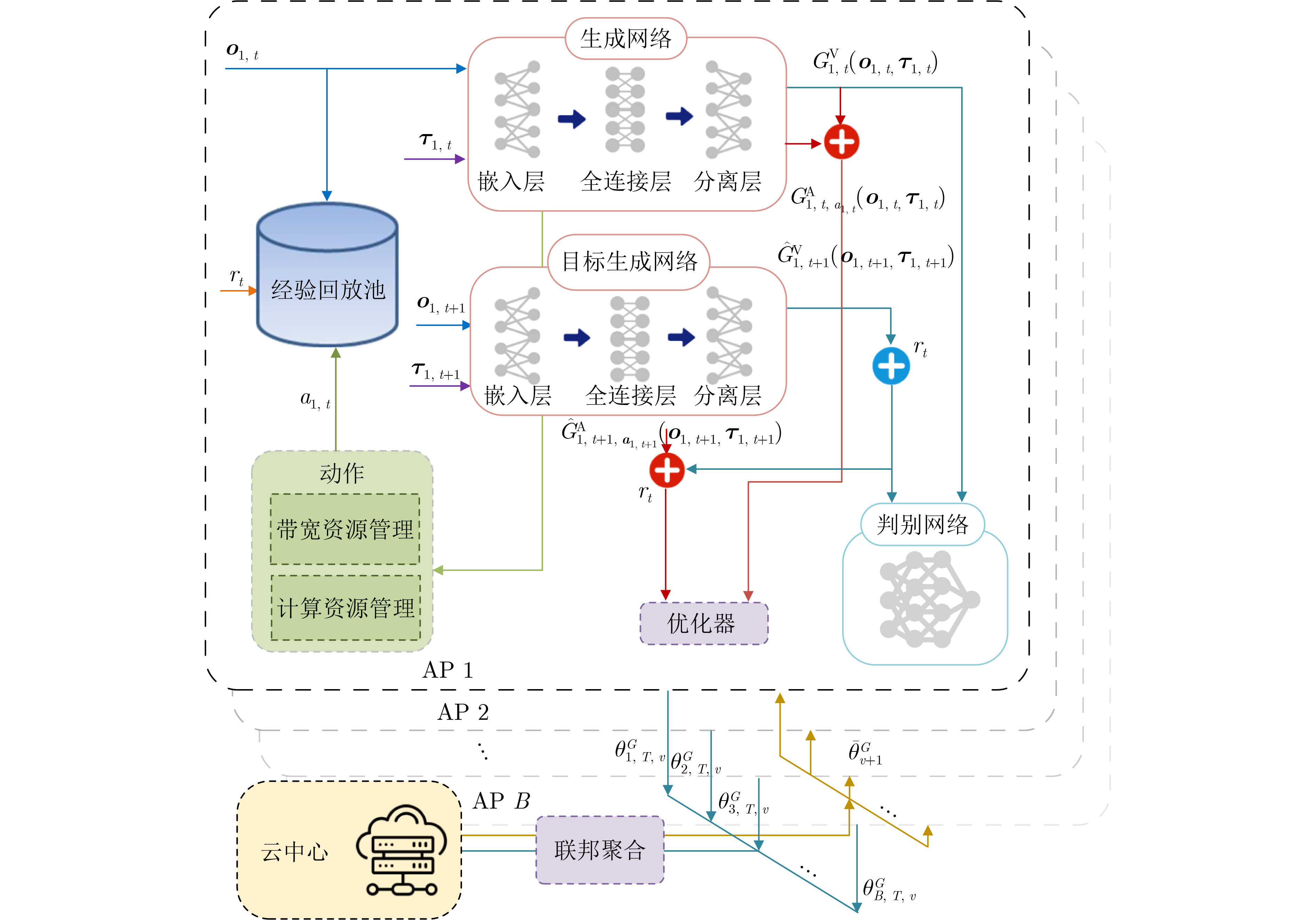

圖 2 基于多智能體聯邦D3QN-GAN的邊緣計算網絡切片資源管理算法原理圖

下載: 全尺寸圖片幻燈片

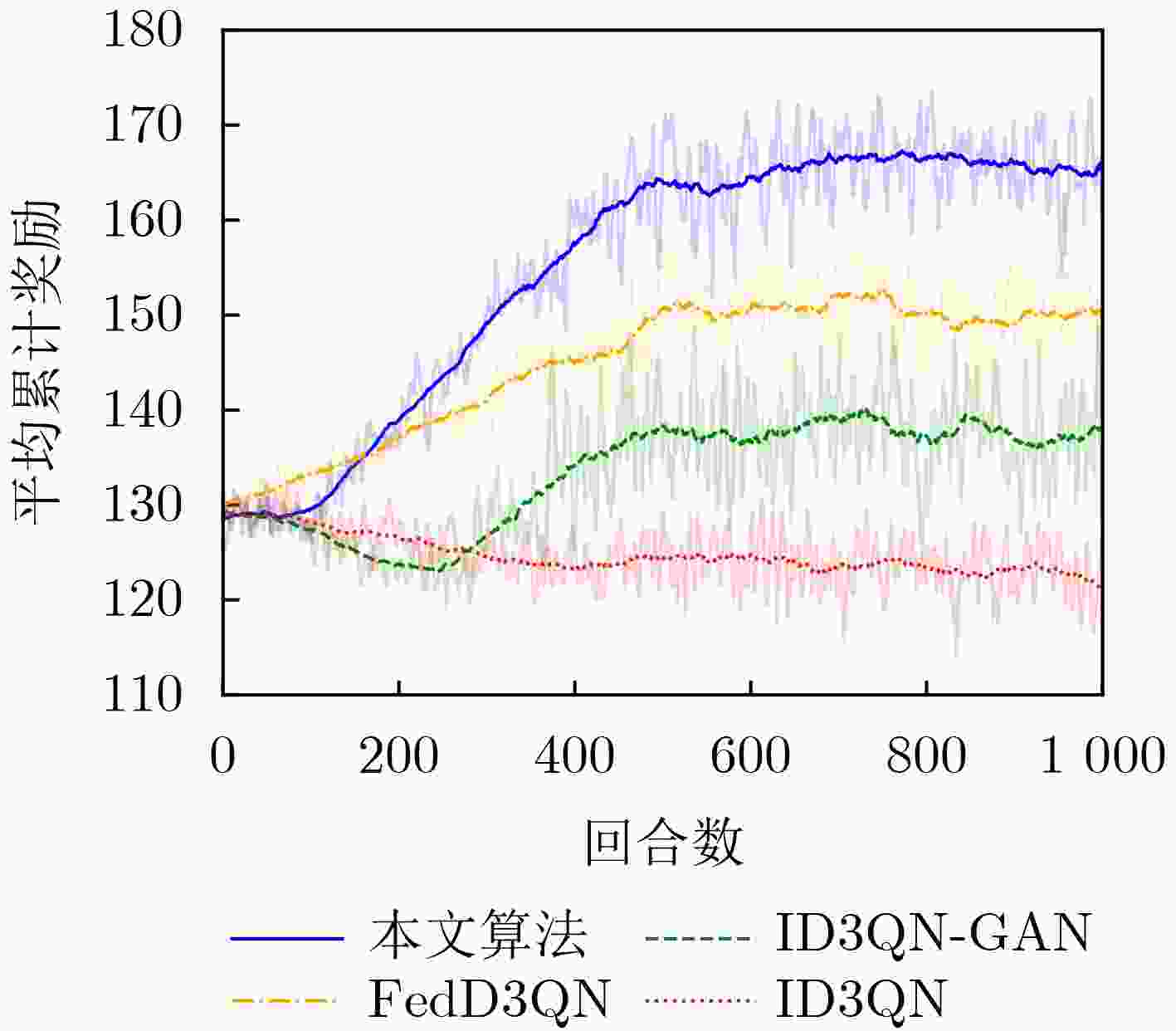

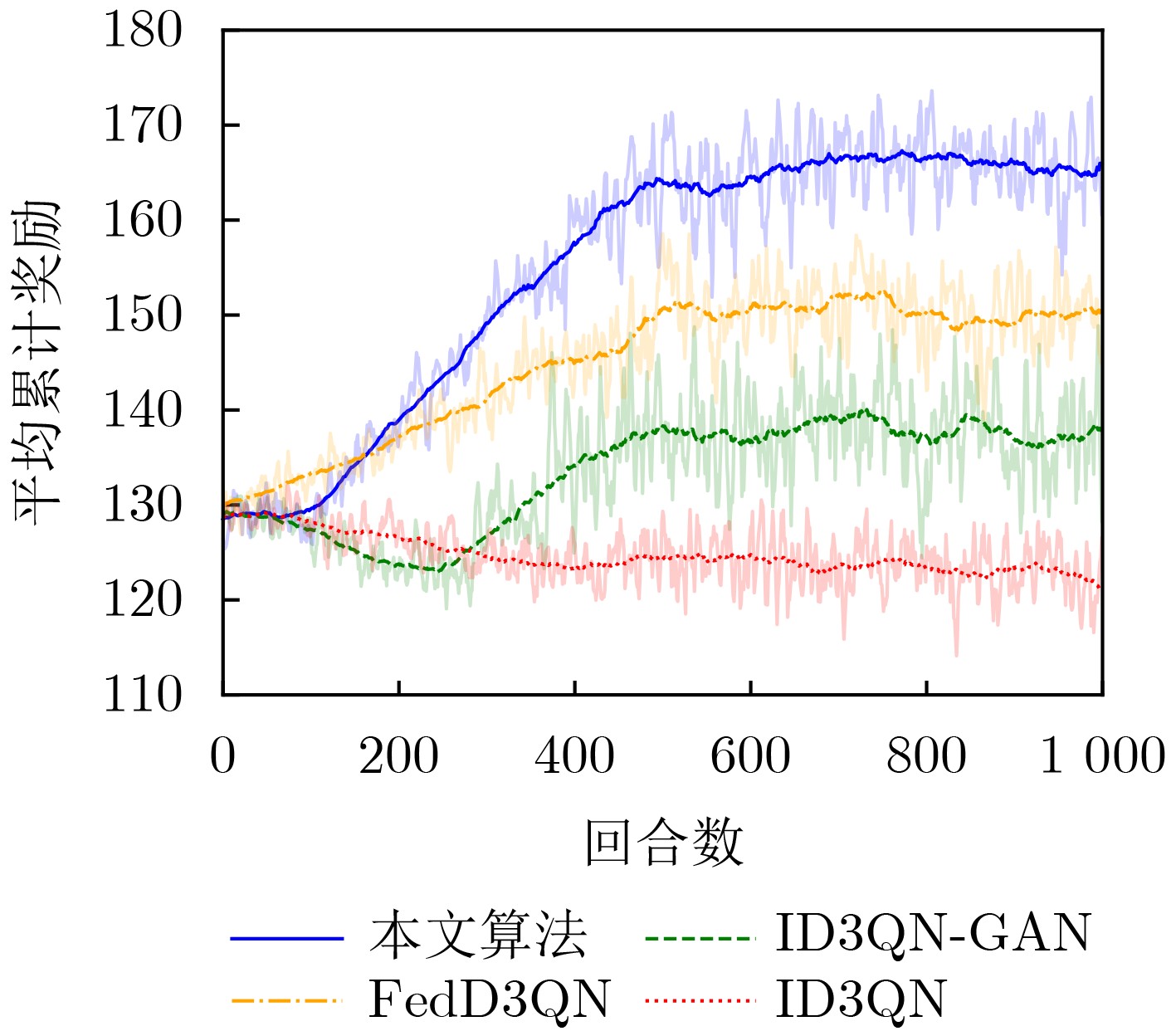

圖 3 收斂性比較

下載: 全尺寸圖片幻燈片

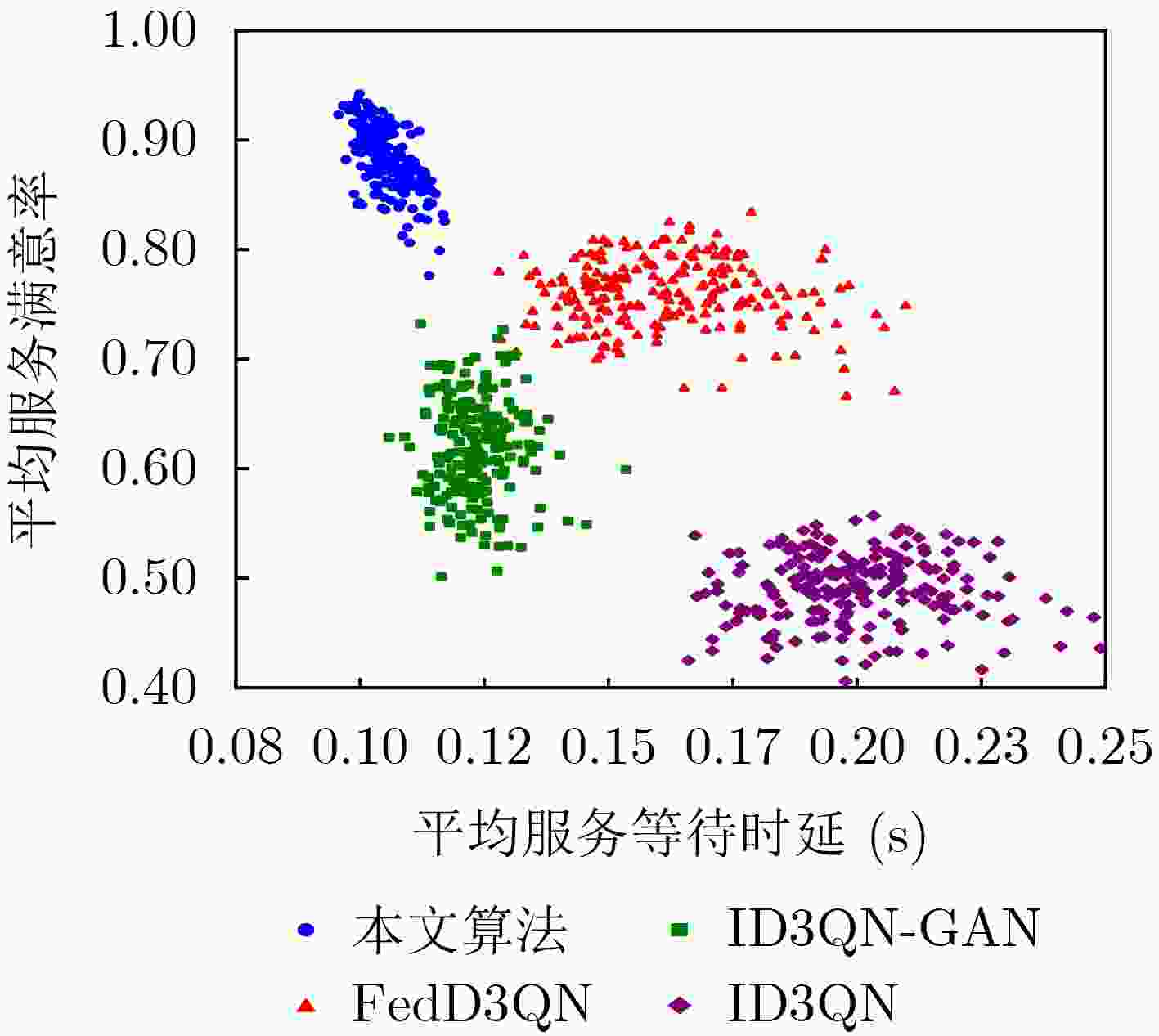

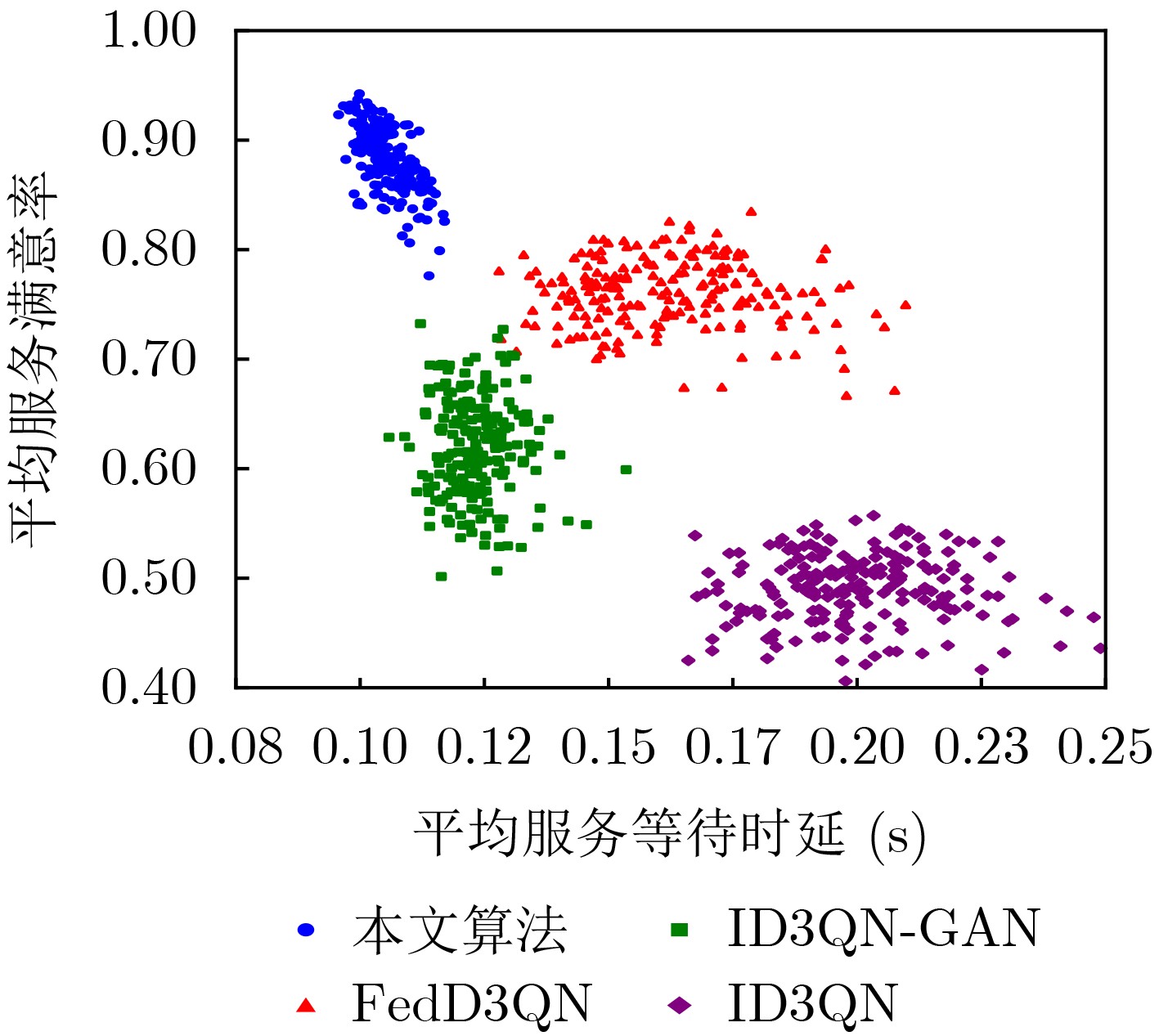

圖 4 平均服務滿意率與平均服務等待時延權衡

下載: 全尺寸圖片幻燈片

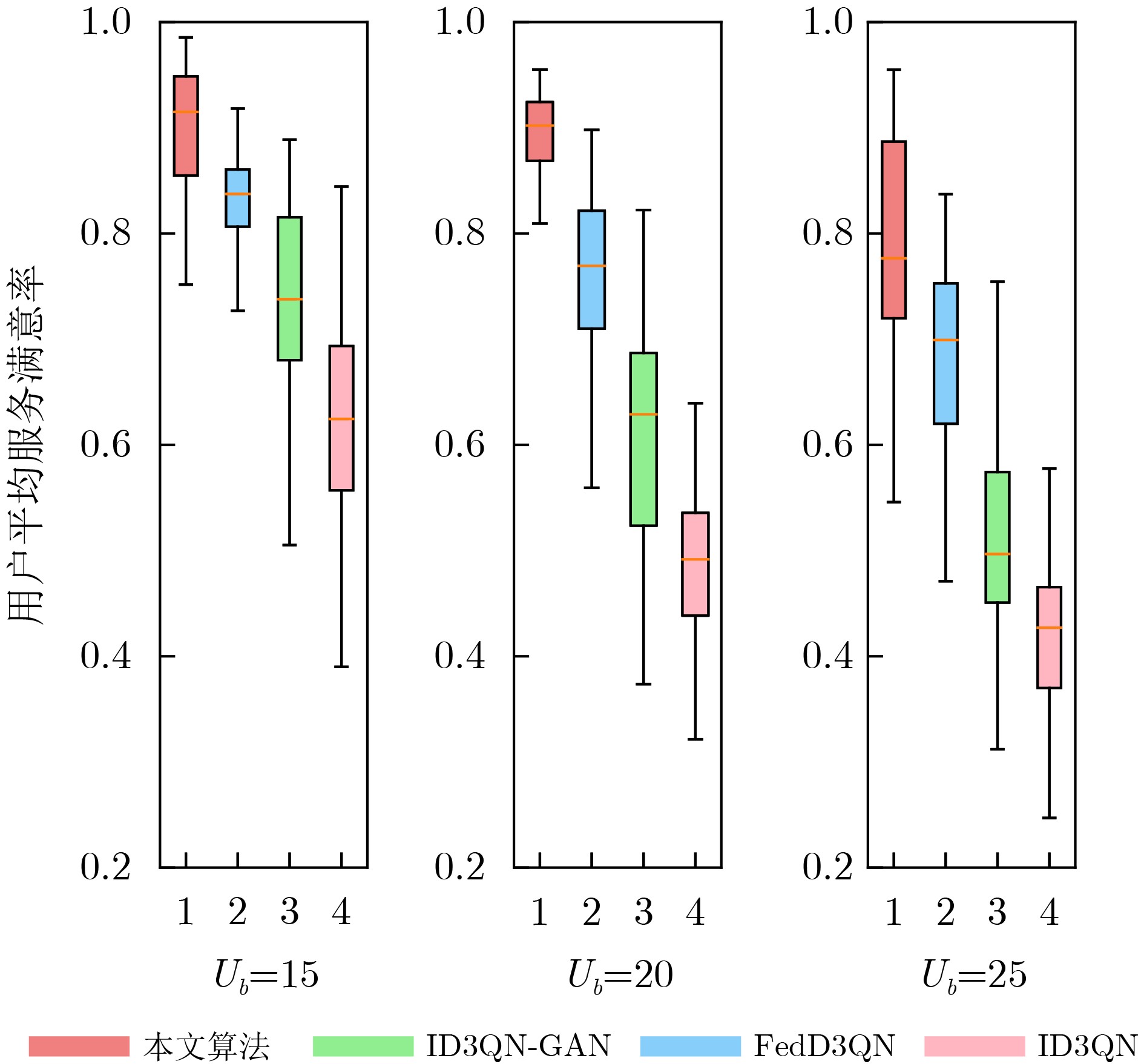

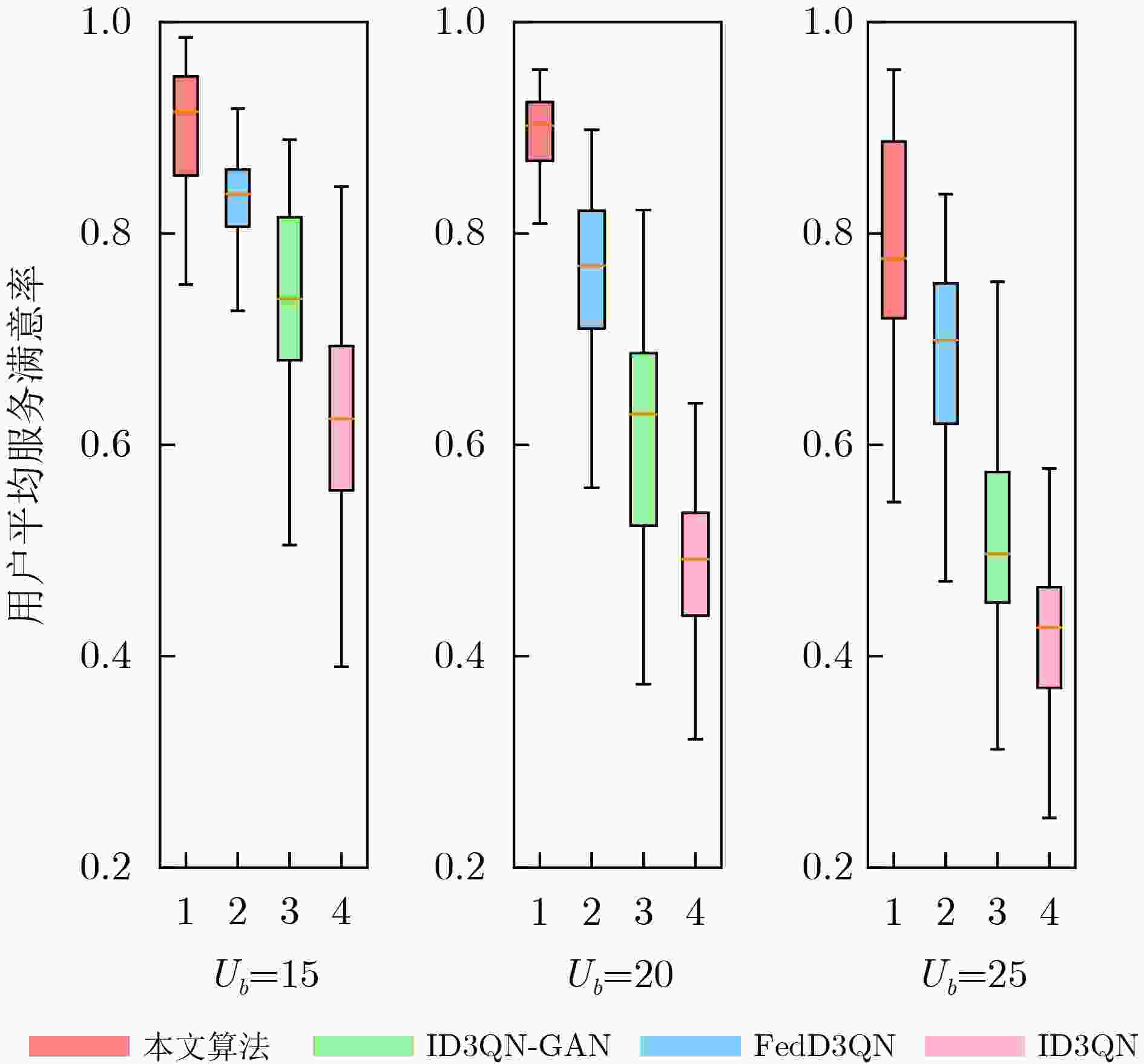

圖 5 不同用戶數量下用戶平均滿意率比較

下載: 全尺寸圖片幻燈片

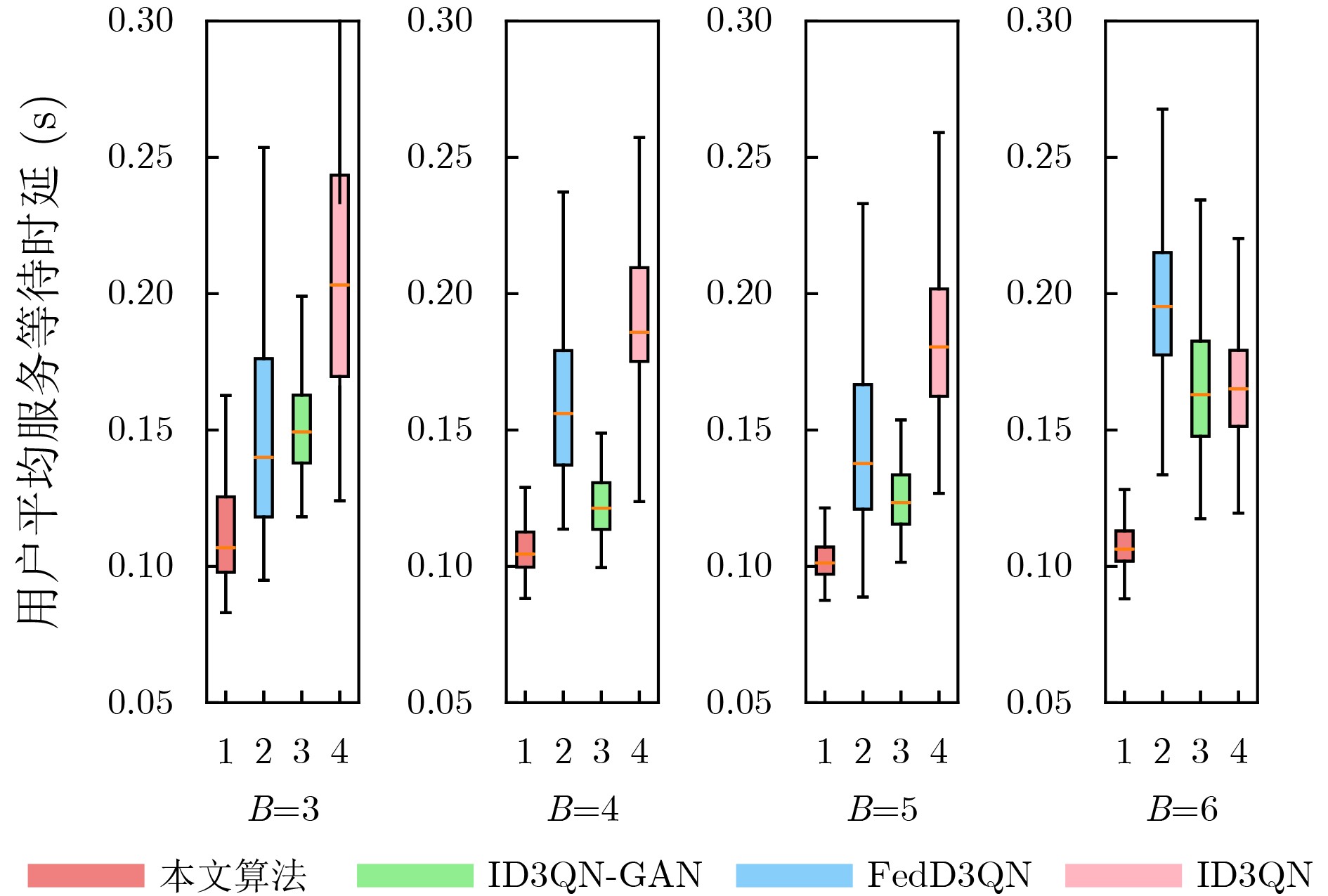

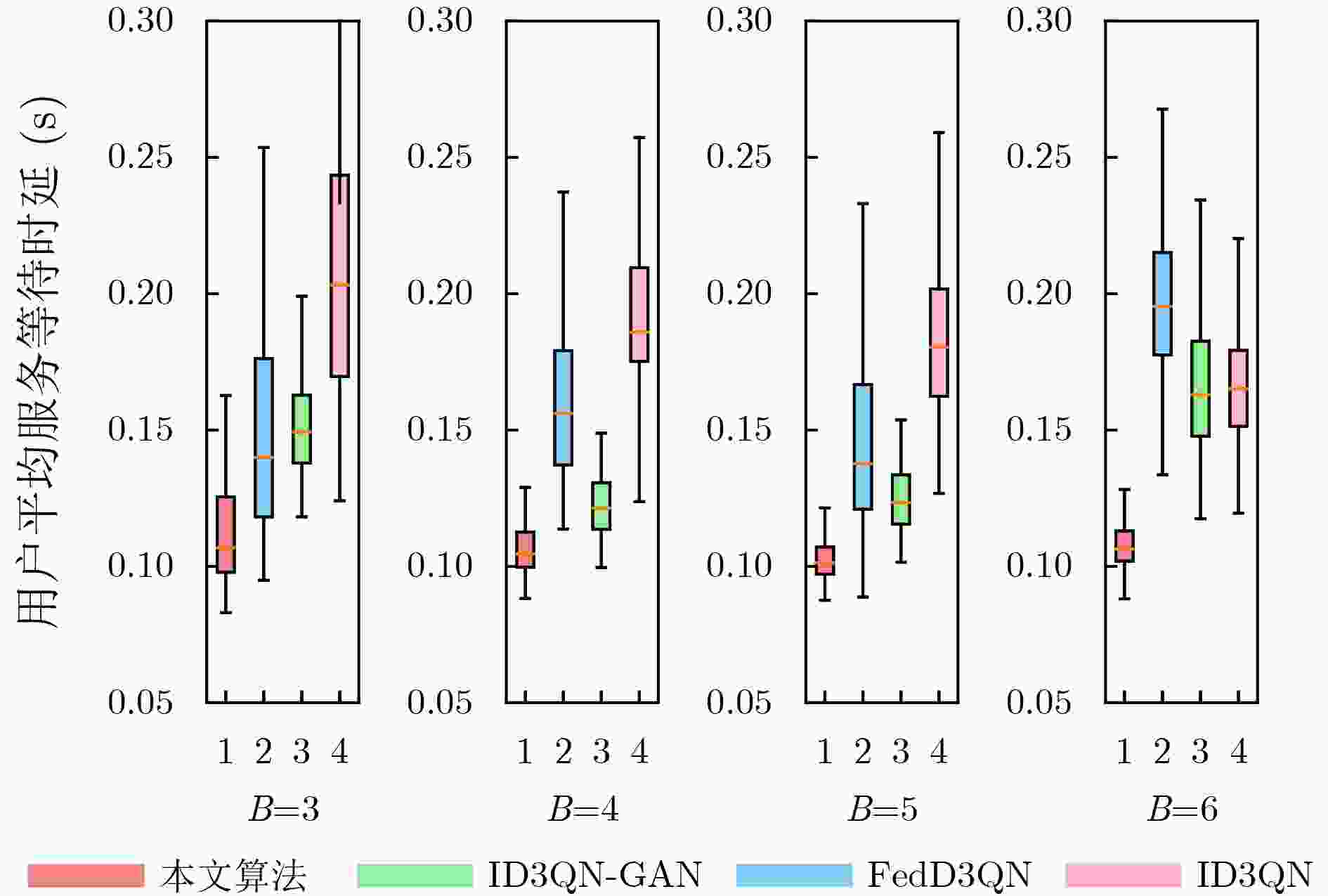

圖 6 不同AP數量下用戶平均服務等待時延比較

下載: 全尺寸圖片幻燈片

1 基于GAN輔助多智能體強化學習的邊緣計算網絡聯邦切片資源管理算法

(1) 每個AP智能體初始化的生成網絡${G_b}$和判別網絡${D_b}$；
(2) 每個AP智能體初始化目標生成網絡${\hat G_b}$，本地經驗回放池　${\mathcal{M}_b}$，粒子個數$N$；
(3) ${T^{{\text{train}}}} \leftarrow 0$；
(4) for Episode $v = 1,2, \cdots ,V$ do：
(5) 　重置環境
(6) 　for TS $t = 1,2, \cdots ,T$ do：
(7) 　　for AP智能體 $b = 1,2, \cdots ,B$ do：
(8) 　　　采樣噪聲${{\boldsymbol{\tau}} _{b,t}}{\text{～}}U\left( {0,1} \right)$，獲取本地觀測${{\boldsymbol{o}}_{b,t}}$，同時輸　　　　　入生成網絡${G_b}$；
(9) 　　　得到狀態值粒子$\left\{ {G_{b,t}^{\text{V}}\left( {{{\boldsymbol{o}}_{b,t}},{{\boldsymbol{\tau}} _{b,t}}} \right)} \right\}$和動作優勢值　　　　　 $G_{b,t,{{\boldsymbol{a}}_{b,t}}}^{\text{A}}\left( {{{\boldsymbol{o}}_{b,t}},{{\boldsymbol{\tau}} _{b,t}}} \right)$
(10) 　　根據式(10)計算狀態動作價值函數${Q_{b,t}}\left( {{{\boldsymbol{o}}_{b,t}},{{\boldsymbol{a}}_{b,t}}} \right)$;
(11) 　　執行動作${\boldsymbol{a}}_{b,t}^* \leftarrow {\text{argmax}}{Q_{b,t}}\left( {{{\boldsymbol{o}}_{b,t}},{{\boldsymbol{a}}_{b,t}}} \right)$；
(12) 　　獲取環境獎勵${r_t}$和下一時隙觀測${{\boldsymbol{o}}_{b,t + 1}}$；
(13) 　　儲存訓練信息$\left\{ {{{\boldsymbol{o}}_{b,t}},{{\boldsymbol{a}}_{b,t}},{{\boldsymbol{o}}_{b,t + 1}},{r_t}} \right\}$至本地經驗回放　　　　　池${\mathcal{M}_b}$；
(14) 　 end for；
(15) 　 if ${T^{{\text{train}}}} \ge {T^{{\text{update}}}}$：
(16) 　　 for AP智能體 $b = 1,2, \cdots ,B$ do：
(17) 　　　隨機抽取 $\left\{ {{{\boldsymbol o}_{b,k}},{a_{b,k}},{o_{b,k + 1}},{r_k}} \right\}_{k = 1}^K{\text{～}}{\mathcal{M}_b}$，采樣　　　　　　噪聲$\left\{ {{{\boldsymbol{\tau}} _{b,k}}} \right\}_{k = 1}^K$和$ {\left\{{\varepsilon }_{b,k}\right\}}_{k=1}^{K} $；
(18) 　　　根據式(14)-式(16)計算損失函數$J_{b,k}^D$并根據式　　　　　　$\begin{array}{*{20}{c}} {\theta _{b,t + 1}^D \leftarrow \theta _{b,t}^D - {\eta ^D}{\nabla _\theta }J_{b,t}^D} \end{array}$更新網絡${D_b}$；
(19) 　　　計算${Q_{b,k}}\left( {{{\boldsymbol o}_{b,k}},{a_{b,k}}} \right)$和${\hat Q_{b,k}}\left( {{{\boldsymbol o}_{b,k}},{a_{b,k}}} \right)$；
(20) 　　　根據式(12)-式(13)計算損失函數$J_{b,k}^G$更新網絡${G_b}$，　　　　　　和網絡${\hat G_b}$；
(21) 　　　根據式$\begin{array}{*{20}{c}} {\theta _{b,t + 1}^G \leftarrow \theta _{b,t}^G - {\eta ^G}{\nabla _\theta }J_{b,t}^G} \end{array}$更新主網絡 　　　　　　 ${G_b}$，根據式$\hat \theta _{b,t}^G \leftarrow \theta _{b,t}^G\hat \theta _{b,t}^G \leftarrow \theta _{b,t}^G$更新目標網絡 　　　　　　 ${\hat G_b}$；
(22) 　　 end for；
(23) 　 end if；
(24) end for；
(25) 根據式(17)–式(18)執行聯邦聚合并向所有智能體廣播生成　　網絡參數$\theta _{b,1,v + 1}^G$；
(26) ${T^{{\text{train}}}} \leftarrow {T^{{\text{train}}}} + 1$；
(27) end for；

下載: 導出CSV

表 1 仿真參數設置

系統參數	值
AP傳輸功率${P^{\text{A}}}$	46 dBm
用戶傳輸功率${P^{\text{U}}}$	23 dBm
時隙持續時間$\tau $	10 ms
最大可容忍時延$l_i^{{\text{max}}}$	{5,8,9} ms
上行任務包大小${x_{{u_b},t}}$	{2.4,12,30} kbit
處理前后數據包之比$\beta $	0.25
計算任務量${s_{{u_b},t}}$	{0.1,0.2,1} kMc
用戶數${U_b}$	20
切片數量$I$	3
AP覆蓋半徑	40 m
AP數$B$	4
AP總帶寬${W_b}$	36 MHz
AP總計算資源${C_b}$	900 kMc/s
帶寬資源塊大小${\rho ^{\text{B}}}$	2 MHz
計算資源塊大小${\rho ^{\text{C}}}$	50 kMc
訓練參數	值
生成網絡學習率${\eta ^G}$	1e–3
判別網絡學習率${\eta ^D}$	1e–3
獎勵折扣系數 $\gamma $	0.8
每回合步數	100
狀態值粒子個數$N$	30
權重系數$\alpha $	0.5
批大小	32
經驗回放池大小	50 000
目標網絡更新頻率	10$ \tau $
輸入噪聲維度	10

下載: 導出CSV
