多無人機分布式感知任務分配-通信基站關聯與飛行策略聯合優化設計
doi: 10.11999/JEIT240738
-
1.
西南電子技術研究所 成都 610036
-
2.
重慶大學微電子與通信工程學學院 重慶 400044
基金項目: 重慶市教委科技攻關計劃項目(KJQN202203101)
Joint Task Allocation, Communication Base Station Association and Flight Strategy Optimization Design for Distributed Sensing Unmanned Aerial Vehicles
-
1.
Southwest China Institute of Electronic Technology, Chengdu 610036, China
-
2.
School of Microelectronics and Communication Engineering, Chongqing University, Chongqing 400044, China
Funds: The Scientific and Technological Research Program of Chongqing Municipal Education Commission (KJQN202203101)
-

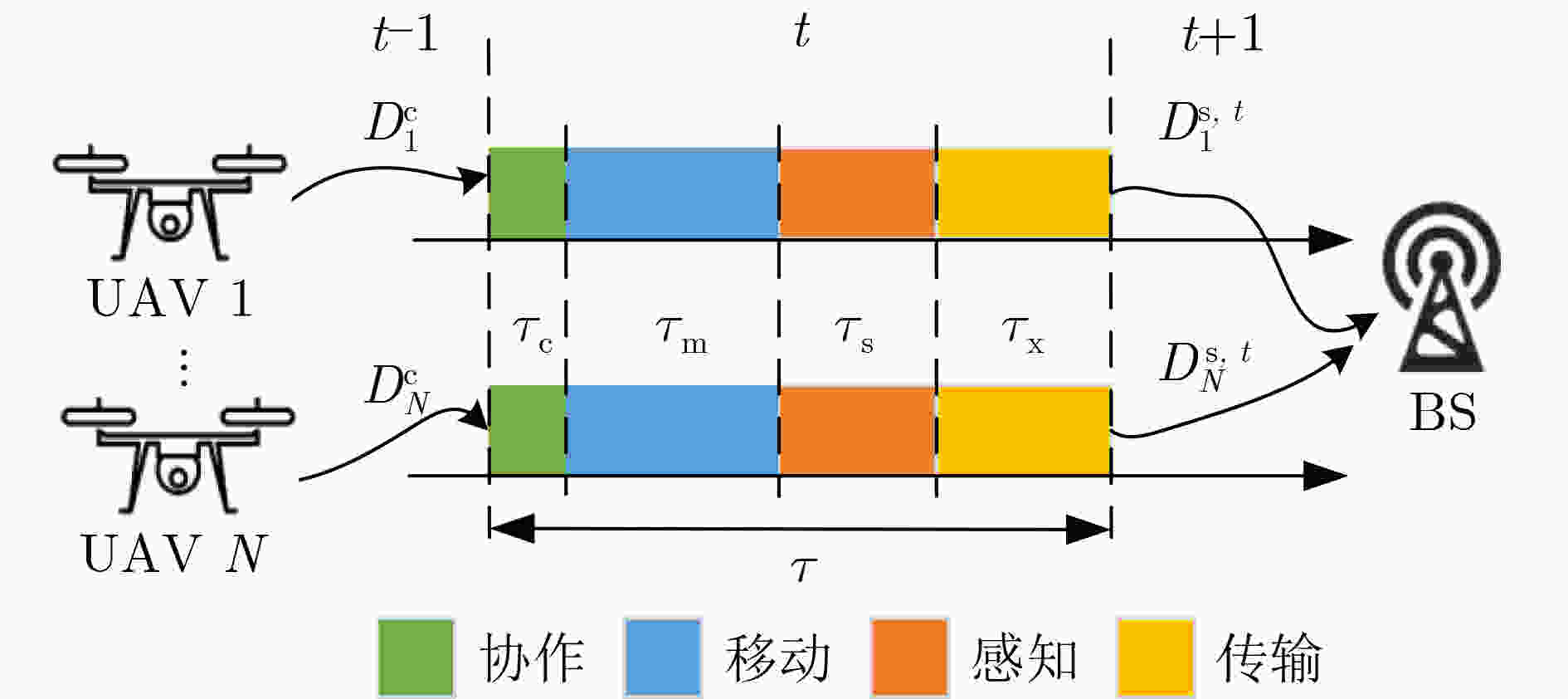

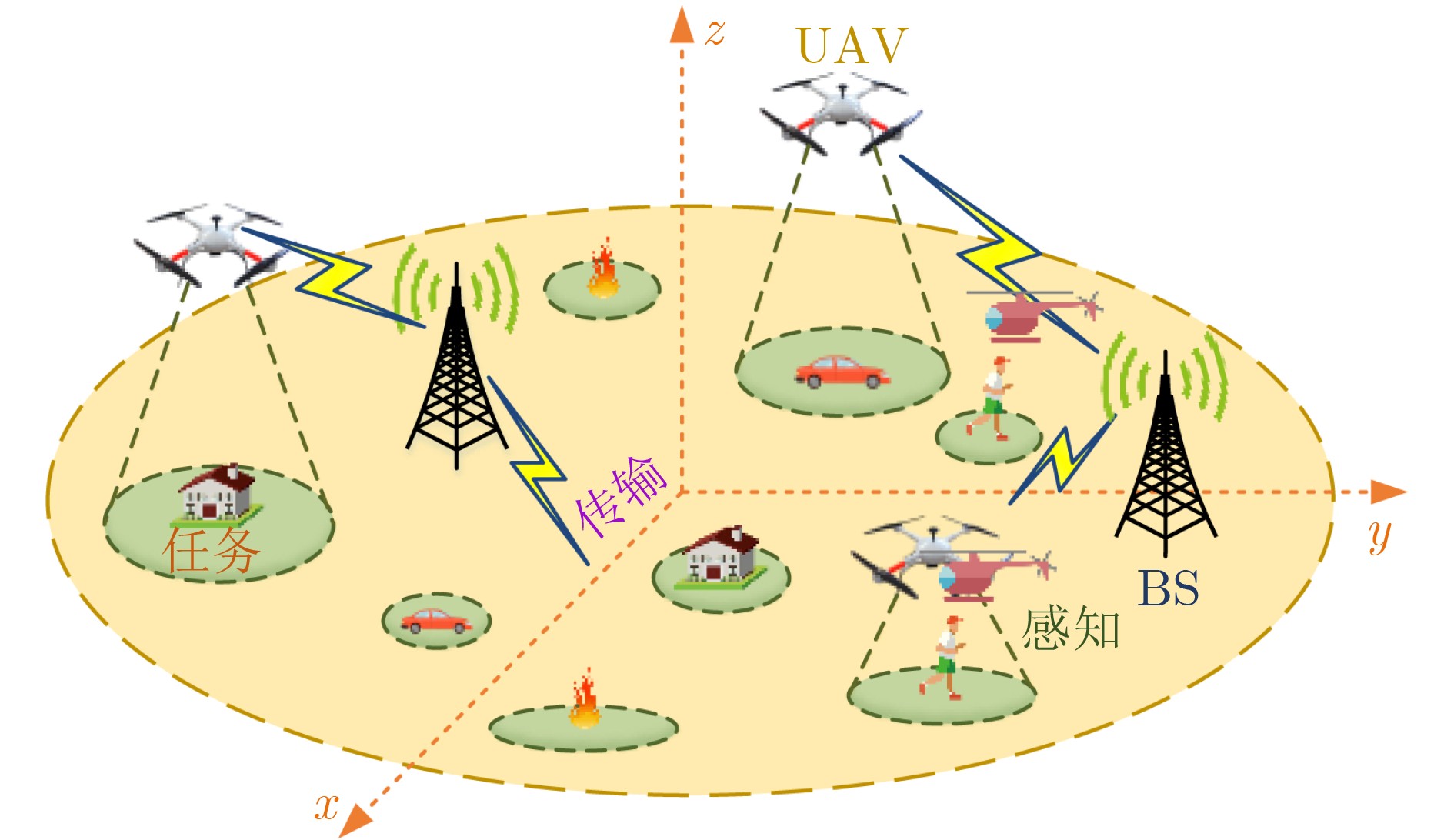

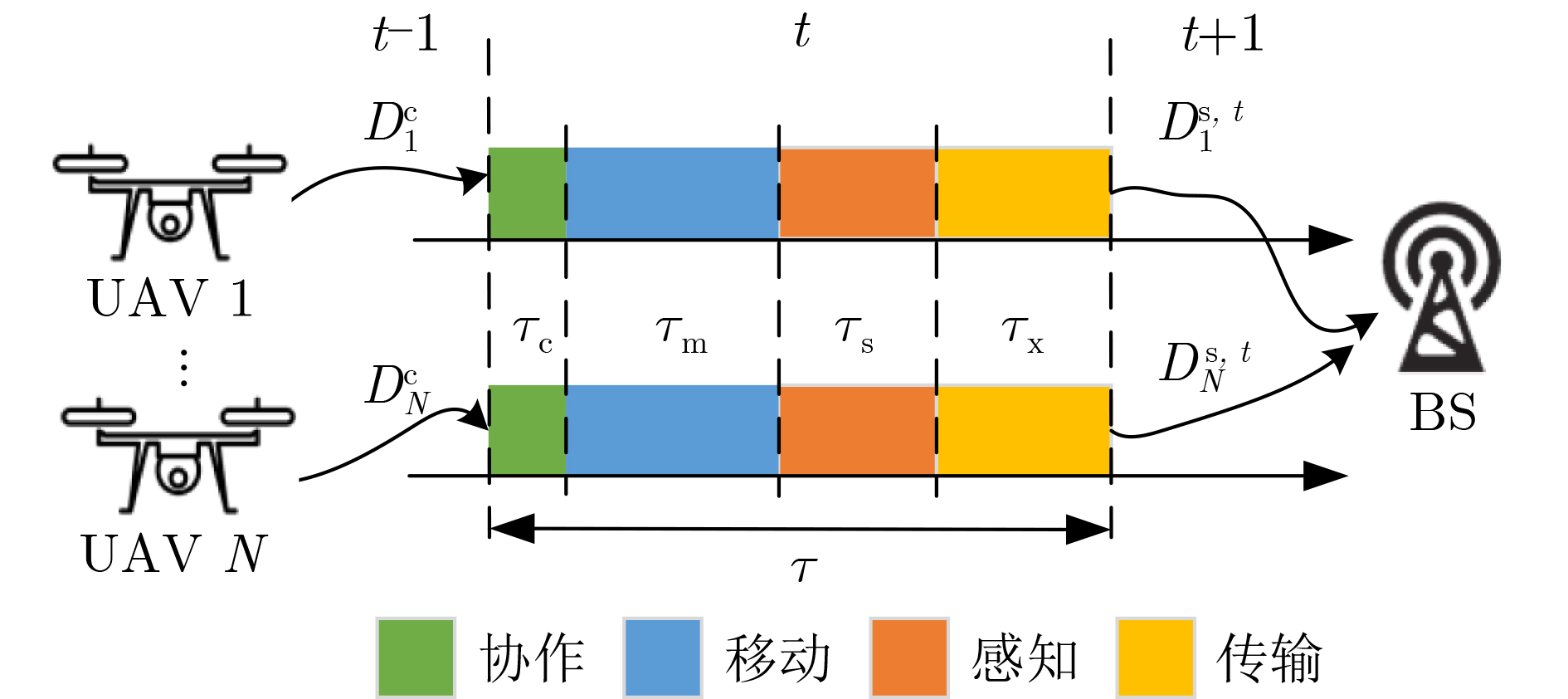

摘要: 針對多無人機(UAV)分布式感知開展研究，為協調各UAV行為，該文設計了任務感知-數據回傳協議，并建立了UAV任務分配、數據回傳基站關聯與飛行策略聯合優化混合整數非線性規劃問題模型。鑒于該問題數學結構的復雜性，以及集中式優化算法設計面臨計算復雜度高且信息交互開銷大等不足，提出將該問題轉化為協作式馬爾可夫博弈(MG)，定義了基于成本-效用復合的收益函數。考慮到MG問題連續-離散動作空間復雜耦合特點，設計了基于獨立學習者(IL)的復合動作表演評論家(MA-IL-CA2C)的MG問題求解算法。仿真分析結果表明，相對于基線算法，所提算法能顯著提高系統收益并降低網絡能耗。
-
關鍵詞:
- 無人機 /
- 分布式感知 /
- 聯合優化 /
- 強化學習 /
- 馬爾可夫博弈
Abstract:Objective The demand for Unmanned Aerial Vehicles (UAVs) in distributed sensing applications has increased significantly due to their low cost, flexibility, mobility, and ease of deployment. In these applications, the coordination of multi-UAV sensing tasks, communication strategies, and flight trajectory optimization presents a significant challenge. Although there have been preliminary studies on the joint optimization of UAV communication strategies and flight trajectories, most existing work overlooks the impact of the randomly distributed and dynamically updated task airspace model on the optimal design of UAV communication and flight strategies. Furthermore, accurate UAV energy consumption modeling is often lacking when establishing system design goals. Energy consumption during flight, sensing, and data transmission is a critical issue, especially given the UAV’s limited payload capacity and energy supply. Achieving an accurate energy consumption model is essential for extending UAV operational time. To address the requirements of multiple UAVs performing distributed sensing, particularly when tasks are dynamically updated and data must be transmitted to ground base stations, this paper explores the optimal design of joint UAV sensing task allocation, base station association for data backhaul, flight strategy planning, and transmit power control. Methods To coordinate the relationships among UAVs, base stations, and sensing tasks, a protocol framework for multi-UAV distributed task sensing applications is first proposed. This framework divides the UAVs’ behavior during distributed sensing into four stages: cooperation, movement, sensing, and transmission. The framework ensures coordination in the UAVs’ movement to the task area, task sensing, and the backhaul transmission of sensed data. A sensing task model based on dynamic updates, a UAV movement model, a UAV sensing behavior model, and a data backhaul transmission model are then established. A revenue function, combining task sensing utility and task execution costs, is designed, leading to a joint optimization problem of UAV task allocation, communication base station association, and flight strategy. The objective is to maximize the long-term weighted utility-cost. Given that the optimization problem involves high-dimensional decision variables in both discrete and continuous forms, and the objective function is non-convex with respect to these variables, the problem is a typical non-convex Mixed-Integer Non-Linear Programming (MINLP) problem. It falls within the NP-Hard complexity class. Centralized optimization algorithms for this formulation require a central node with high computational capacity and the collection of substantial additional information, such as channel state and UAV location data. This results in high information-interaction overhead and poor scalability. To overcome these challenges, the problem is reformulated as a Markov Game (MG). An effective algorithm is designed by leveraging the distributed coordination concept of Multi-Agent (MA) systems and the exploration capability of deep Reinforcement Learning (RL) within the optimization solution space. Specifically, due to the complex coupling between the continuous and discrete action spaces in the MG problem, a novel solution algorithm called Multi-Agent Independent-Learning Compound-Action Actor-Critic (MA-IL-CA2C) based on Independent Learning (IL) is proposed. The core idea is as follows: first, the independent-learning algorithm is applied to extend single-agent RL to a MA environment. Then, deep learning is used to represent the high-dimensional action and state spaces. To handle the combined discrete and continuous action spaces, the UAV action space is decomposed into discrete and continuous components, with the DQN algorithm applied to the discrete space and the DDPG algorithm to the continuous space. Results and Discussions The computational complexity of action selection and training for the proposed MA-IL-CA2C algorithm is theoretically analyzed. The results show that its complexity is almost equivalent to that of the two benchmark algorithms, DQN and DDPG. Additionally, the performance of the proposed algorithm is simulated and analyzed. When compared with the DQN, DDPG, and Greedy algorithms, the MA-IL-CA2C algorithm demonstrates lower network energy consumption throughout the network operation ( Fig. 6 ), improved system revenue (Fig. 5 ,Fig. 8 , andFig. 9 ), and optimized UAV flight strategies (Fig. 7 ).Conclusions This paper addresses and solves the optimal design problems of joint UAV sensing task allocation, data backhaul base station association, flight strategy planning, and transmit power control for multi-UAV distributed task sensing. A new MA-IL-CA2C algorithm based on IL is proposed. The simulation results show that the proposed algorithm achieves better system revenue while minimizing UAV energy consumption. -

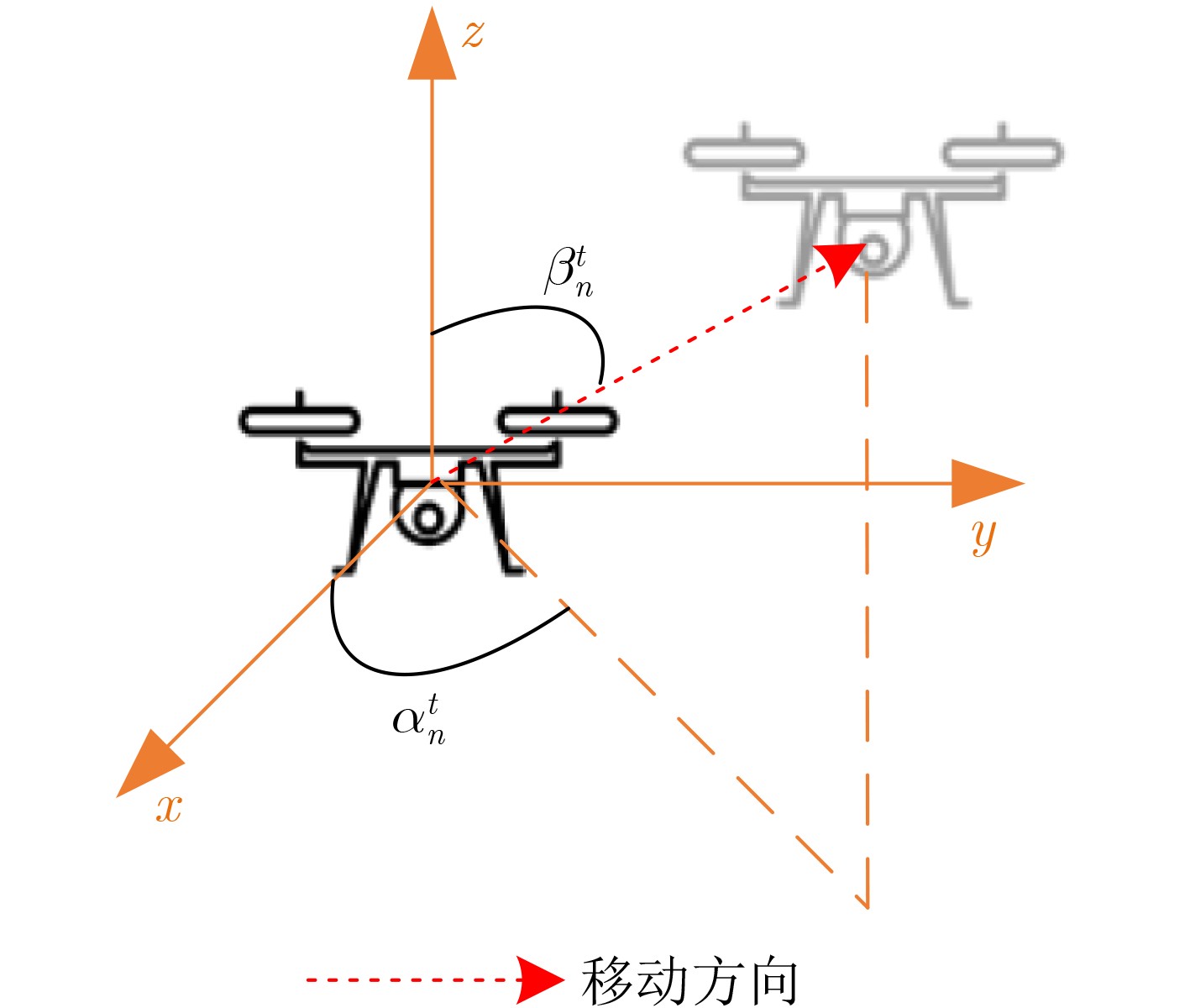

圖 3 ${\text{UA}}{{\text{V}}_n}$飛行方向角${\boldsymbol{\delta}} _n^t = \left( {\alpha _n^t,\beta _n^t} \right)$

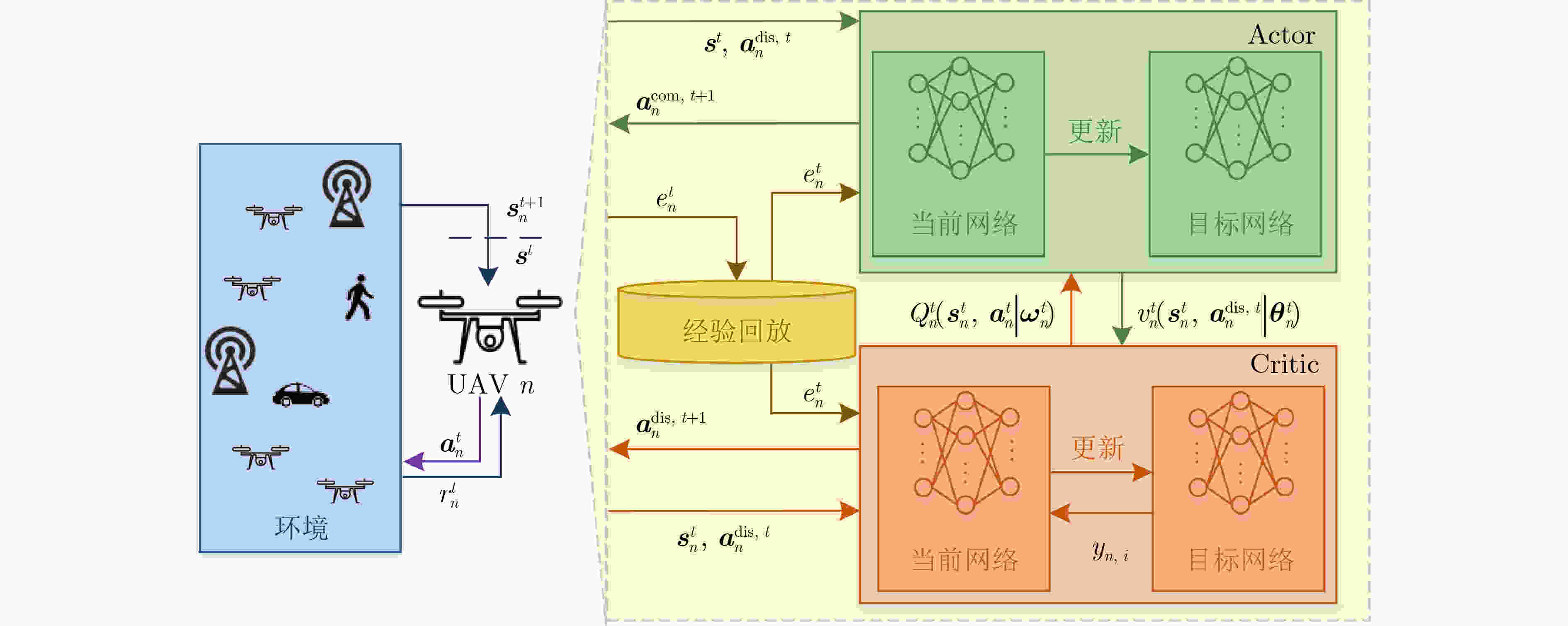

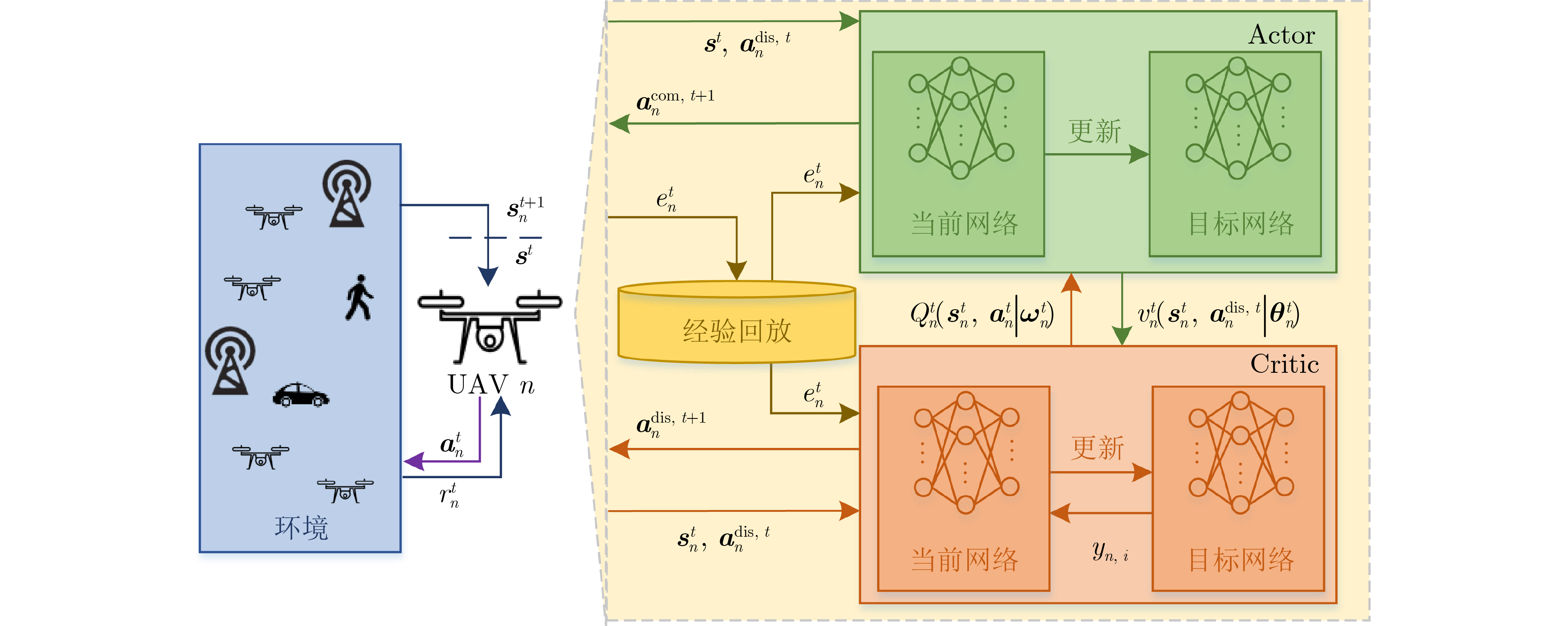

圖 4 ${\text{UA}}{{\text{V}}_n}$使用MA-IL-CA2C算法進行聯合通信策略與飛行策略優化設計
1 MA-IL-CA2C算法
(1)初始化：設置$t = 0$，最大決策周期數$T$，選擇經驗回放模塊
容量$ {N_{\mathrm{c}}} $，批量大小${N_{\mathrm}}$，網絡學習率${\alpha _{{\boldsymbol{\theta}} _n^t}}$和$ {\alpha _{{\boldsymbol{\omega}} _n^t}} $，軟更新參數
$ \rho $；(2)對于每個智能體$n \in \mathcal{N}$： 隨機初始化網絡參數$ {{\boldsymbol{\theta}} }_n^t $, $ {\hat {\boldsymbol{\theta}} }_n^t $, $ {{\boldsymbol{\omega}} }_n^t $, $ {\hat {\boldsymbol{\omega}} }_n^t $，并設置初始狀態${{\boldsymbol s}^0}$； #主循環 (3)如果$t \le T$： (a)對于每個智能體$n \in \mathcal{N}$： 根據式(28)，在${\boldsymbol{s}}_n^t$處選擇離散動作$ {\boldsymbol a}_n^{{\text{dis}},t} $，即選擇感知任務$m$和$ {\text{B}}{{\text{S}}_k} $； #協作階段 在控制信道上反饋決策$D_n^{\mathrm{c}} = \left\{ {n,{\boldsymbol a}_n^{{\mathrm{dis}},t}} \right\}$，并接收其余
UAV的決策信息；根據離散動作$ {\boldsymbol a}_n^{{\mathrm{dis}},t} $決定連續動作${\boldsymbol a}_n^{{\text{con}},t}{ = v}_n^t\left( {{{\boldsymbol s}^t},{\boldsymbol a}_n^{{\mathrm{dis}},t}} \right)$，
即決定飛行方向角$ \delta _n^t $、移動速度$ v_n^t $和發射功率$ P_n^t $；#移動階段 基于飛行方向角$ {\boldsymbol{\delta}} _n^t $和移動速度$ v_n^t $，飛行至感知位置$ {\boldsymbol{x}}_n^{{\mathrm{s}},t} $； #感知階段 執行感知任務并收集任務數據$D_n^{s,t}$； #傳輸階段 以發射功率$ P_n^t $將任務數據回傳給$ {\text{B}}{{\text{S}}_k} $； 根據式(23)獲得收益$ r_n^{t + 1} $，觀察得到${{\boldsymbol s}^{t + 1}}$； 將經驗元組$ \left( {{{\boldsymbol s}^t},{\boldsymbol a}_n^t,r_n^{t + 1},{{\boldsymbol s}^{t + 1}}} \right) $存入經驗回放模塊${\mathcal{D}_n}$中； 如果$ t \gt {N_c} $： 從經驗回放模塊${\mathcal{D}_n}$中移除舊的經驗元組； #訓練網絡 在經驗回放模塊${\mathcal{D}_n}$中隨機抽取一個批量${N_{\mathrm}}$的經驗元組
$ \left( {{{\boldsymbol s}^t},{\boldsymbol a}_n^t,r_n^{t + 1},{{\boldsymbol s}^{t + 1}}} \right) $；根據式(29)–式(34)，更新當前網絡參數$ {{\boldsymbol{\theta}} }_n^t $與$ {{\boldsymbol{\omega}} }_n^t $； 根據式(36)和式(37)，更新目標網絡參數$ {\hat {\boldsymbol{\theta}} }_n^t $與$ {\hat {\boldsymbol{\omega}} }_n^t $； (b)令$t = t + 1$, ${{\boldsymbol s}^t} \leftarrow {{\boldsymbol s}^{t + 1}}$； (4)重復步驟(3)，直至算法結束。
下載: 導出CSV

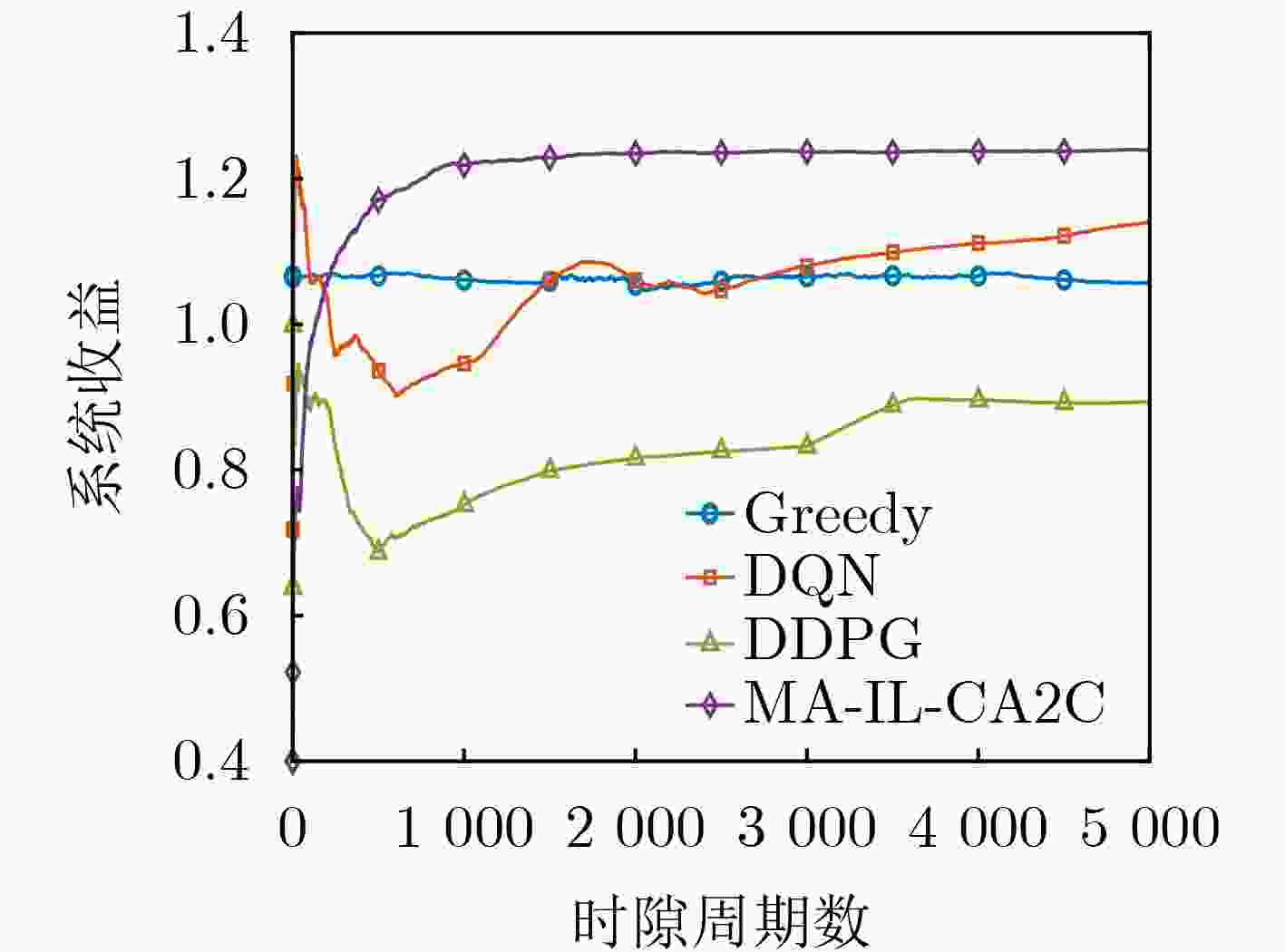

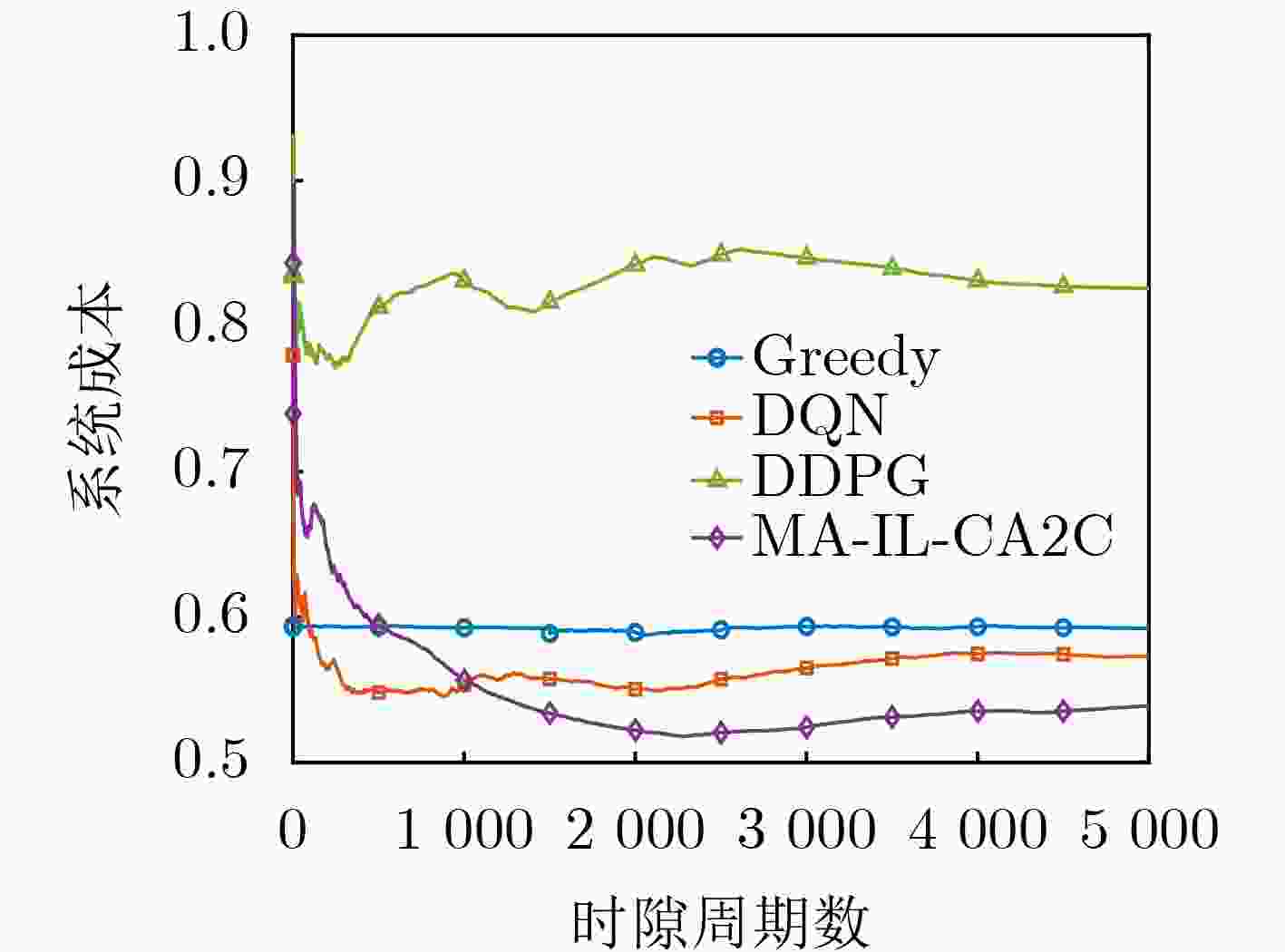

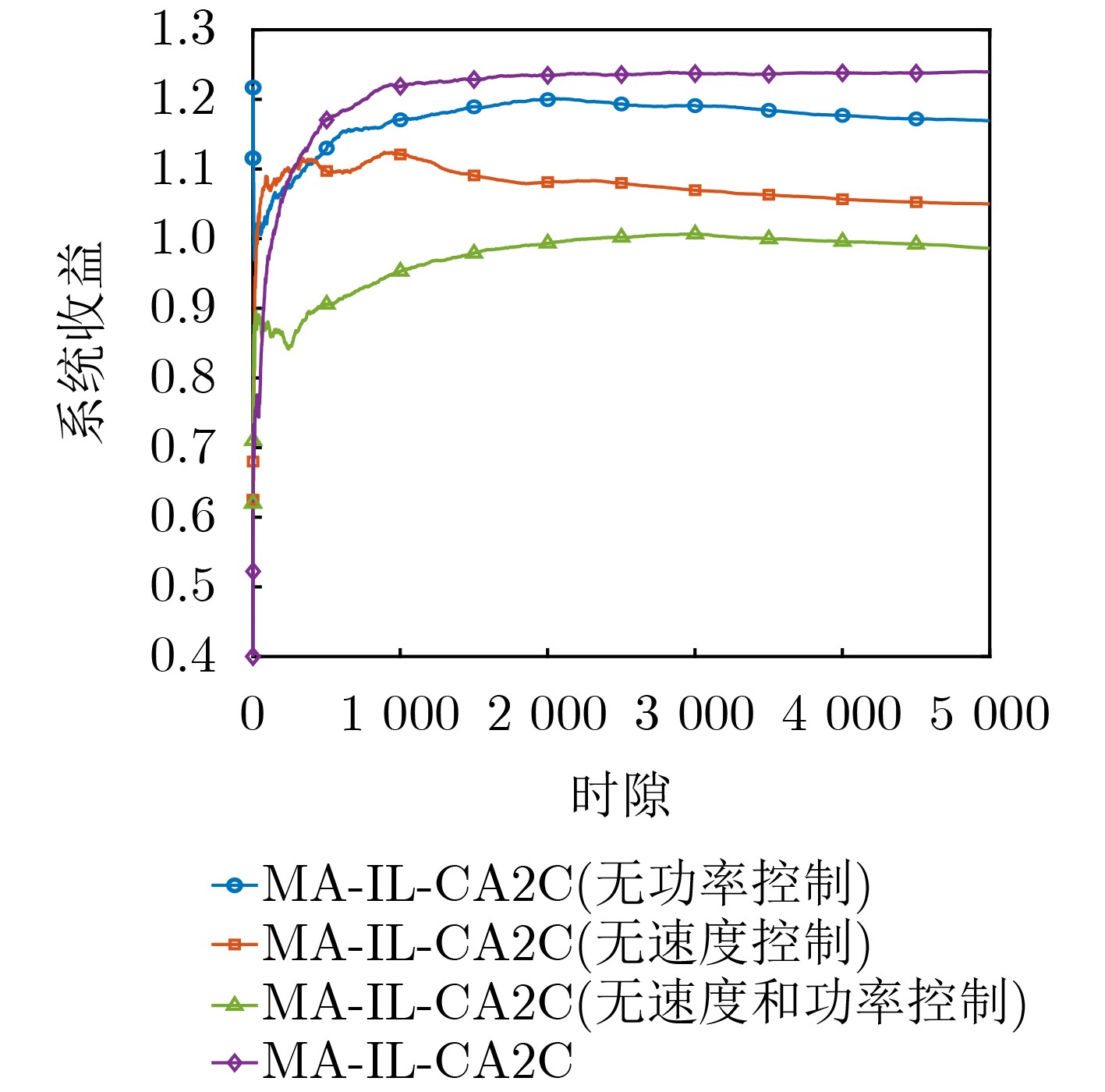

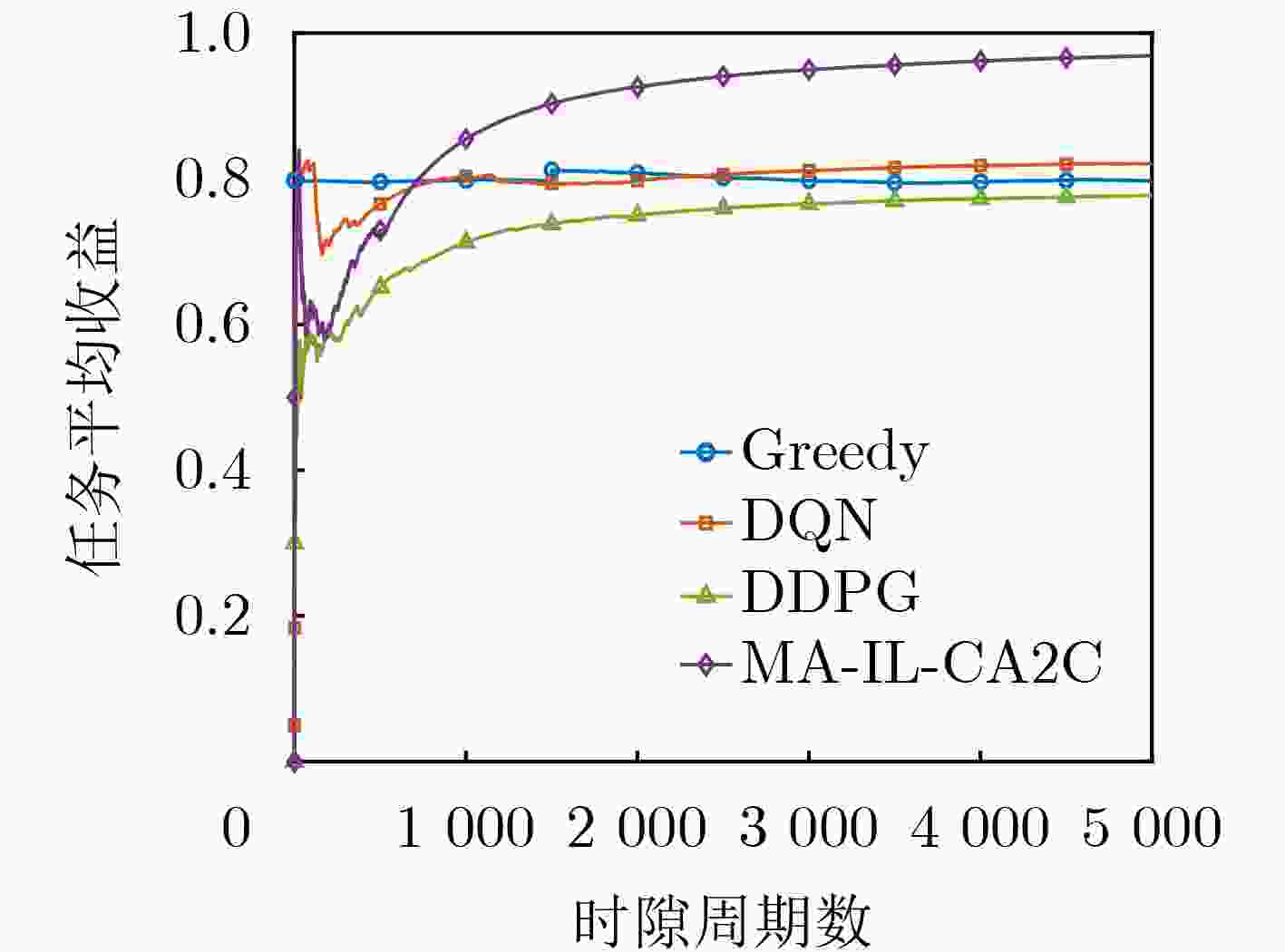

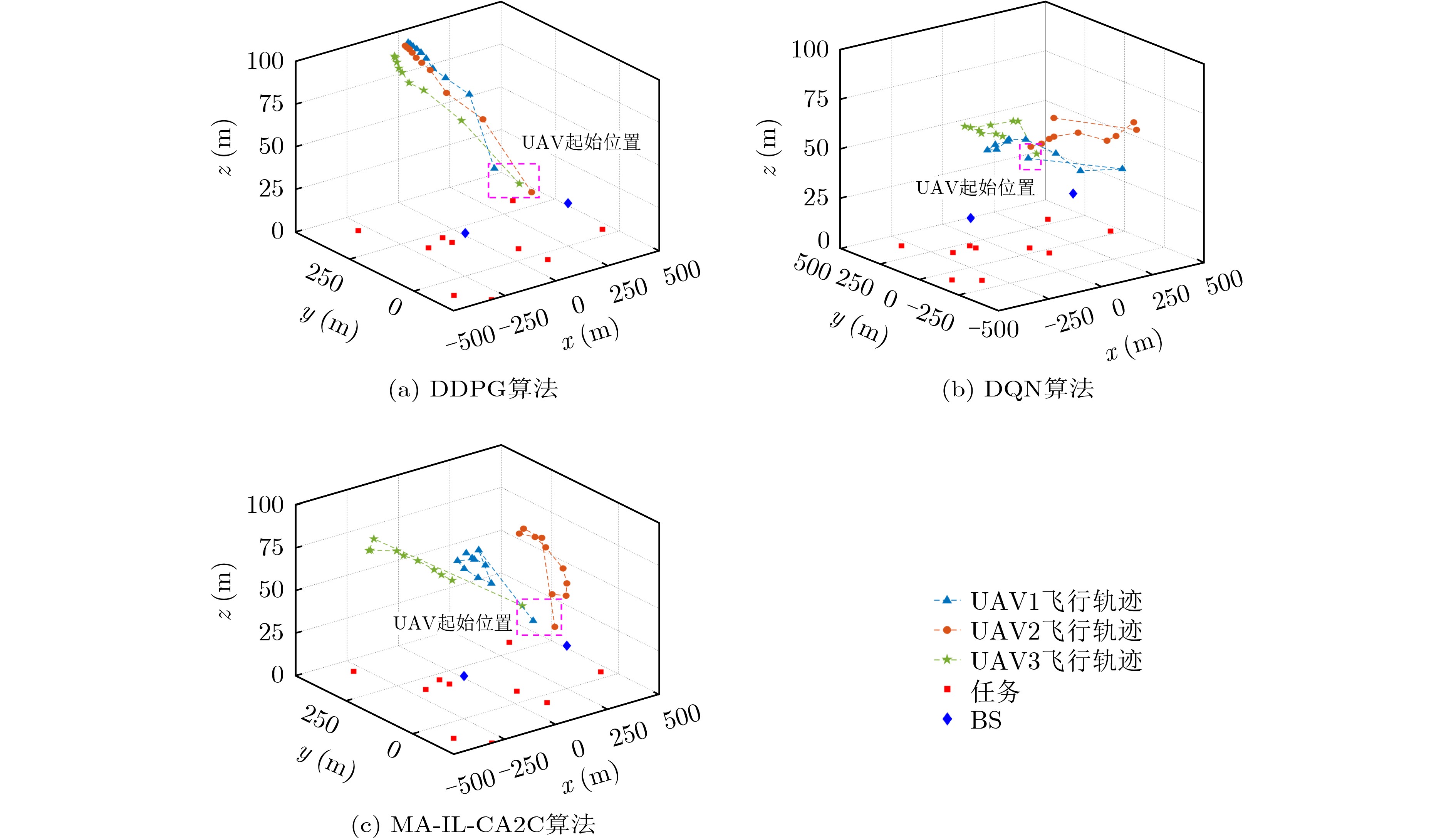

表 1 仿真參數
參數 數值 UAV數目$N$，感知任務數目$M$，BS數目$K$ 3, 10, 2 網絡范圍半徑${r_{\text{c}}}$ 500 m 信道帶寬$ W $ 1 MHz BS高度$ {H_0} $ 25 m UAV最大與最低高度${h_{\min }},{h_{\max }}$ 50 m, 100 m UAV最大飛行速度$ {v_{\max }} $ 15 m/s UAV最大發射功率$ {P_{\max }} $ 30 dBm 感知參數$\lambda $ 0.01 環境參數$a,b$ 9.61, 0.16 LoS和NLoS額外路徑損耗${\eta ^{{\text{LoS}}}},{\eta ^{{\text{NLoS}}}}$ 1dB, 20 dB 載波頻率${f_{\text{c}}}$ 2 GHz 噪聲功率${N_0}$ –96 dBm
下載: 導出CSV
表 2 模型超參數
超參數 數值 Actor網絡與Critic網絡初始學習率$ {\alpha _{{\boldsymbol{\theta}} _n^t}} $,$ {\alpha _{{\boldsymbol{\omega}} _n^t}} $ 0.001, 0.002 軟更新權重$\rho $ 0.01 貪婪率$\varepsilon $ 0.1 激活函數 ReLu 批量大小${N_{\text}}$ 64 經驗回放模塊大小${N_{\text{c}}}$ 20 000 DQN網絡初始學習率 0.01 DQN目標網絡更新周期 100 Actor網絡和Critic網絡層數 4,4 隱層神經元數 128
下載: 導出CSV
-
[1] SHRESTHA R, ROMERO D, and CHEPURI S P. Spectrum surveying: Active radio map estimation with autonomous UAVs[J]. IEEE Transactions on Wireless Communications, 2023, 22(1): 627–641. doi: 10.1109/TWC.2022.3197087. [2] NOMIKOS N, GKONIS P K, BITHAS P S, et al. A survey on UAV-aided maritime communications: Deployment considerations, applications, and future challenges[J]. IEEE Open Journal of the Communications Society, 2023, 4: 56–78. doi: 10.1109/OJCOMS.2022.3225590. [3] HARIKUMAR K, SENTHILNATH J, and SUNDARAM S. Multi-UAV oxyrrhis marina-inspired search and dynamic formation control for forest firefighting[J]. IEEE Transactions on Automation Science and Engineering, 2019, 16(2): 863–873. doi: 10.1109/TASE.2018.2867614. [4] QU Yuben, SUN Hao, DONG Chao, et al. Elastic collaborative edge intelligence for UAV Swarm: Architecture, challenges, and opportunities[J]. IEEE Communications Magazine, 2024, 62(1): 62–68. doi: 10.1109/MCOM.002.2300129. [5] ZHANG Tao, ZHU Kun, ZHENG Shaoqiu, et al. Trajectory design and power control for joint radar and communication enabled multi-UAV cooperative detection systems[J]. IEEE Transactions on Communications, 2023, 71(1): 158–172. doi: 10.1109/TCOMM.2022.3224751. [6] PAN Hongyang, LIU Yanheng, SUN Geng, et al. Joint power and 3D trajectory optimization for UAV-Enabled wireless powered communication networks with obstacles[J]. IEEE Transactions on Communications, 2023, 71(4): 2364–2380. doi: 10.1109/TCOMM.2023.3240697. [7] NGUYEN P X, NGUYEN V D, NGUYEN H V, et al. UAV-assisted secure communications in terrestrial cognitive radio networks: Joint power control and 3D trajectory optimization[J]. IEEE Transactions on Vehicular Technology, 2021, 70(4): 3298–3313. doi: 10.1109/TVT.2021.3062283. [8] ZENG Shuhao, ZHANG Hongliang, DI Boya, et al. Trajectory optimization and resource allocation for OFDMA UAV relay networks[J]. IEEE Transactions on Wireless Communications, 2021, 20(10): 6634–6647. doi: 10.1109/TWC.2021.3075594. [9] LI Peiming and XU Jie. Fundamental rate limits of UAV-enabled multiple access channel with trajectory optimization[J]. IEEE Transactions on Wireless Communications, 2020, 19(1): 458–474. doi: 10.1109/TWC.2019.2946153. [10] GUAN Yue, ZOU Sai, PENG Haixia, et al. Cooperative UAV trajectory design for disaster area emergency communications: A multiagent PPO method[J]. IEEE Internet of Things Journal, 2024, 11(5): 8848–8859. doi: 10.1109/JIOT.2023.3320796. [11] SILVIRIANTI, NAROTTAMA B, and SHIN S Y. Layerwise quantum deep reinforcement learning for joint optimization of UAV trajectory and resource allocation[J]. IEEE Internet of Things Journal, 2024, 11(1): 430–443. doi: 10.1109/JIOT.2023.3285968. [12] HU Jingzhi, ZHANG Hongliang, SONG Lingyang, et al. Cooperative internet of UAVs: Distributed trajectory design by multi-agent deep reinforcement learning[J]. IEEE Transactions on Communications, 2020, 68(11): 6807–6821. doi: 10.1109/TCOMM.2020.3013599. [13] WU Fanyi, ZHANG Hongliang, WU Jianjun, et al. Cellular UAV-to-device communications: Trajectory design and mode selection by Multi-Agent deep reinforcement learning[J]. IEEE Transactions on Communications, 2020, 68(7): 4175–4189. doi: 10.1109/TCOMM.2020.2986289. [14] DAI Xunhua, LU Zhiyu, CHEN Xuehan, et al. Multiagent RL-based joint trajectory scheduling and resource allocation in NOMA-assisted UAV swarm network[J]. IEEE Internet of Things Journal, 2024, 11(8): 14153–14167. doi: 10.1109/JIOT.2023.3340669. [15] ZHANG Zhongyu, LIU Yunpeng, LIU Tianci, et al. DAGN: A real-time UAV remote sensing image vehicle detection framework[J]. IEEE Geoscience and Remote Sensing Letters, 2020, 17(11): 1884–1888. doi: 10.1109/LGRS.2019.2956513. [16] YANG Jun, YOU Xinghui, WU Gaoxiang, et al. Application of reinforcement learning in UAV cluster task scheduling[J]. Future Generation Computer Systems, 2019, 95: 140–148. doi: 10.1016/j.future.2018.11.014. [17] NOBAR S K, AHMED M H, MORGAN Y, et al. Resource allocation in cognitive radio-enabled UAV communication[J]. IEEE Transactions on Cognitive Communications and Networking, 2022, 8(1): 296–310. doi: 10.1109/TCCN.2021.3103531. [18] CHEN Jiming, LI Junkun, and LAI T H. Energy-efficient intrusion detection with a barrier of probabilistic sensors: Global and local[J]. IEEE Transactions on Wireless Communications, 2013, 12(9): 4742–4755. doi: 10.1109/TW.2013.072313.122083. [19] SHAKHOV V V and KOO I. Experiment design for parameter estimation in probabilistic sensing models[J]. IEEE Sensors Journal, 2017, 17(24): 8431–8437. doi: 10.1109/JSEN.2017.2766089. [20] YANG Qianqian, HE Shibo, LI Junkun, et al. Energy-efficient probabilistic area coverage in wireless sensor networks[J]. IEEE Transactions on Vehicular Technology, 2015, 64(1): 367–377. doi: 10.1109/TVT.2014.2300181. [21] AL-HOURANI A, KANDEEPAN S, and LARDNER S. Optimal LAP altitude for maximum coverage[J]. IEEE Wireless Communications Letters, 2014, 3(6): 569–572. doi: 10.1109/LWC.2014.2342736. [22] ZHANG Xinyu and SHIN K G. E-MiLi: Energy-minimizing idle listening in wireless networks[J]. IEEE Transactions on Mobile Computing, 2012, 11(9): 1441–1454. doi: 10.1109/TMC.2012.112. [23] ZHU Changxi, DASTANI M, and WANG Shihan. A survey of multi-agent deep reinforcement learning with communication[J]. Autonomous Agents and Multi-Agent Systems, 2024, 38(1): 4. doi: 10.1007/s10458-023-09633-6. [24] 喻莞芯. 基于多智能體強化學習的無人機集群網絡優化設計[D]. [碩士論文], 重慶大學, 2022. doi: 10.27670/d.cnki.gcqdu.2022.001082.YU Wanxin. Optimization design of UAV cluster network based on multi-agent reinforcement learning[D]. [Master dissertation], Chongqing University, 2022. doi: 10.27670/d.cnki.gcqdu.2022.001082. [25] SUTTON R S and BARTO A G. Reinforcement Learning: An Introduction[M]. Cambridge, USA: MIT Press, 1998. [26] WOOD L F. Training neural networks[P]. US, 4914603A, 1990. [27] SIPPER M. A serial complexity measure of neural networks[C]. IEEE International Conference on Neural Networks, San Francisco, USA, 1993: 962–966. doi: 10.1109/ICNN.1993.298687. [28] GUO Shaoai and ZHAO Xiaohui. Multi-agent deep reinforcement learning based transmission latency minimization for delay-sensitive cognitive satellite-UAV networks[J]. IEEE Transactions on Communications, 2023, 71(1): 131–144. doi: 10.1109/TCOMM.2022.3222460. -
