應用于航空航天領域的低功耗多節點抗輻射靜態隨機存取存儲器設計

柏娜; 李鋼; 許耀華; 王翊

doi:10.11999/JEIT240294

應用于航空航天領域的低功耗多節點抗輻射靜態隨機存取存儲器設計

doi: 10.11999/JEIT240294

安徽大學集成電路學院合肥 230601

基金項目: 安徽高校協同創新項目(GXXT-2022-080, GXXT-2023-015)

詳細信息

作者簡介:
柏娜：女，副教授，研究方向?yàn)榭馆椪占呻娐吩O(shè)計

李鋼：男，碩士生，研究方向?yàn)榭馆椪占呻娐吩O(shè)計

許耀華：男，副教授，研究方向?yàn)榭馆椪胀ㄐ偶呻娐?/p>
王翊：男，講師，研究方向?yàn)榭馆椪胀ㄐ偶呻娐?/p>

通訊作者:
王翊　yiwang@ahu.edu.cn

中圖分類號: TN402
計量
- 文章訪問數: 60
- HTML全文瀏覽量: 27
- PDF下載量: 14
- 被引次數: 0
出版歷程
- 收稿日期: 2024-04-17
- 修回日期: 2025-02-16
- 網絡出版日期: 2025-02-25

Low-Power Multi-Node Radiation-Hardened SRAM Design for Aerospace Applications

School of Integrated Circuits, Anhui University, Hefei 230601, China

Funds: The University Synergy Innovation Program of Anhui Province (GXXT-2022-080, GXXT-2023-015)

摘要

摘要: 隨著對太空的探索的深入，人們發現應用于航天領域的靜態隨機存取存儲器(SRAM)易受到高能粒子轟擊發生電節點翻轉(SEU)和多節點翻轉(SEMNU)。該文為解決SRAM的單粒子翻轉問題提出一種16TSRAM單元可以用于SRAM的抗翻轉應用，該單元包含3個敏感節點，使用金屬氧化物半導體(MOS)管堆疊結構，較大提高了單元的穩定性。在65 nm CMOS工藝下仿真證明該單元可以解決SEU和SEMNU問題。相比于SARP12T, LWS14T, SAR14T, RSP14T, EDP12T, SIS10T, MNRS16T的保持靜態噪聲容限(HSNM)分別提升了1.4%, 54.9%, 58.9%, 0.7%, 59.1%, 107.4%。相比于SARP12T, RH10T, SAR14T, RSP14T, S8N8P16T, EDP12T, SIS10T, MNRS16T的讀取靜態噪聲容限(RSNM)分別提升了94.3%, 31.4%, 90.3%, 8.9%, 71.5%, 90.4%, 90.3%。相較于SAR14T, RSP14T, EDP12T, RH12T, MNRS16T的保持功率(Hpwr)降低了12.4%, 16.9%, 13.1%, 50.1%。
- 單粒子翻轉 /
- 抗輻射 /
- 靜態隨機存取存儲器
Abstract: Objective As space exploration advances, the requirement for high-density memory in spacecraft escalates. However, SRAMs employed in aerospace applications face susceptibility to Single-Event Upsets (SEUs) and Multiple-Node Upsets (MNUs) due to high-energy particle bombardment, compromising the reliability of spacecraft systems. Hence, it is essential to engineer an SRAM design characterized by superior radiation resistance, reduced power consumption, and enhanced stability, fulfilling the rigorous demands of aerospace applications. Methods This paper proposes a 16T SRAM cell, designated as MNRS16T, featuring three sensitive nodes and utilizing a MOS transistor stacking structure. In this configuration, the upper tier of the stack employs a cross-coupling technique to enhance the pull-up drive capability while simultaneously diminishing that of the pull-down structure, thus balancing the driving abilities of both. The fundamental operations of the MNRS16T include write, read, and hold functions. For the write operation, bit lines WL and WWL are set to VDD, with specific MOS transistors managed to input data. During the read operation, word lines BL and BLB are precharged to VDD, and data is retrieved by assessing the voltage disparity across the bit lines. In the hold operation, bit lines are connected to ground, and word lines are precharged to VDD to preserve the data integrity. To assess the efficacy of MNRS16T, simulations are conducted using a 65nm CMOS process. Performance metrics, benchmarked against other SRAM cells include read access time, write access time, Hold Static Noise Margin (HSNM), Read Static Noise Margin (RSNM), Hold power (Hpwr), and soft error recovery capability. Results and Discussions MNRS16T exhibits superior performance across various metrics. In terms of read access time, MNRS16T exceeds other cells like SIS10T, SARP12T, and LWS14T, attributed to its efficient discharge path and optimal cell ratio (Fig. 4(a)). Regarding write access time, MNRS16T outperforms most counterparts. Specifically, its write access time is reduced compared to SARP12T, facilitated by the properties of the S1 node and the elimination of a lengthy feedback path (Fig. 4(b)). Concerning the hold static noise margin, MNRS16T achieves a higher HSNM than units such as SIS10T and RSP14T, a result of the balanced pull-up and pull-down driving forces provided by the transistor stacking structure and cross-coupling method (Fig. 5). In the RSNM assessment, although MNRS16T’s RSNM falls below that of LWS14T at elevated voltages, it remains superior to several others, including RH12T and RSP14T (Fig. 6). Regarding hold power, MNRS16T achieves reductions of 12.4%, 16.9%, 13.1%, and 50.1% relative to SAR14T, RSP14T, EDP12T, and RH12T respectively, demonstrating significant energy efficiency (Fig. 8). In simulations of soft error recovery capability, MNRS16T consistently returns to its original logic state post-SEU, even when sensitive nodes receive a 120 fC charge. Additionally, 1000 Monte Carlo simulations affirm its resilience against single-node and multi-node flips under Process, Voltage, and Temperature (PVT) variations (Fig. 3, Fig. 7). In terms of physical dimensions, MNRS16T’s 16 transistors necessitate a layout area of 3.3 μm×3.5 μm, which is comparatively larger. Finally, in the comprehensive performance index EQM, MNRS16T significantly outstrips other SRAM cells, indicating its overall performance (Fig. 9). Conclusions This paper presents the design of an MNRS16T SRAM cell tailored for aerospace applications, effectively addressing SEU and MNUs. The MNRS16T cell demonstrates reduced read and write delay times, decreased hold power, and enhanced HSNM and RSNM compared to other units. An extensive evaluation using the EQM performance index reveals that MNRS16T exceeds other radiation-hardened SRAM cells in overall performance. Nevertheless, the relatively large area of MNRS16T represents a drawback that warrants optimization in future studies.
- Single-Event Upset (SEU) /
- Radiation-resistant /
- SRAM

HTML全文

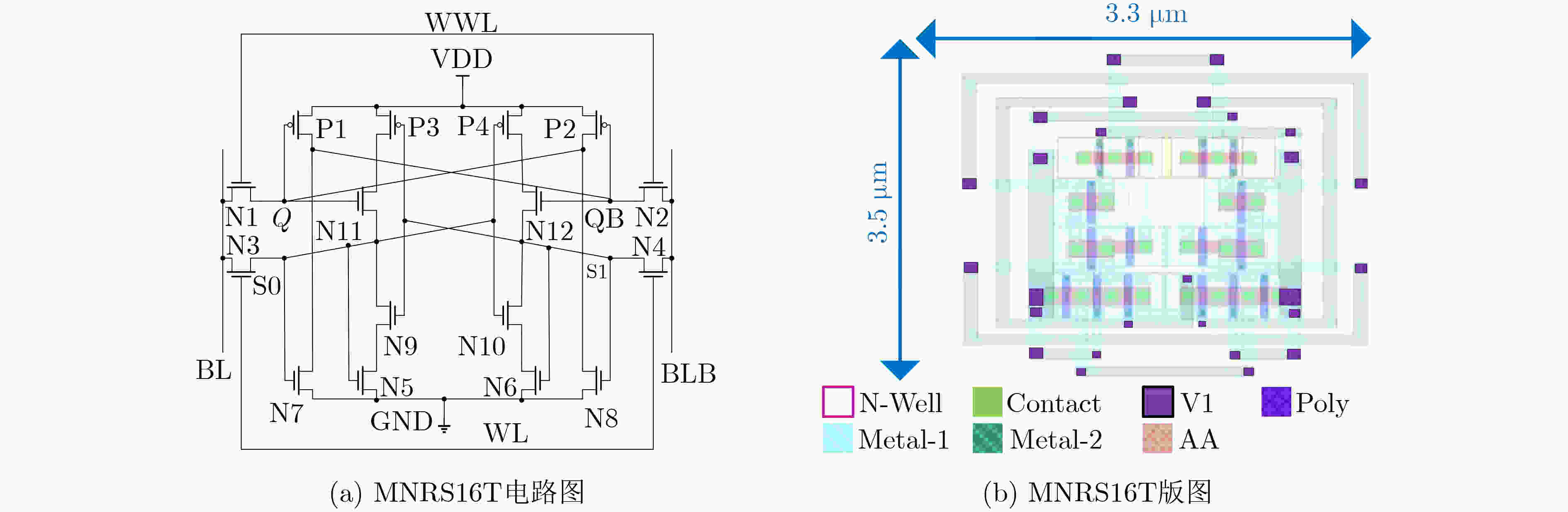

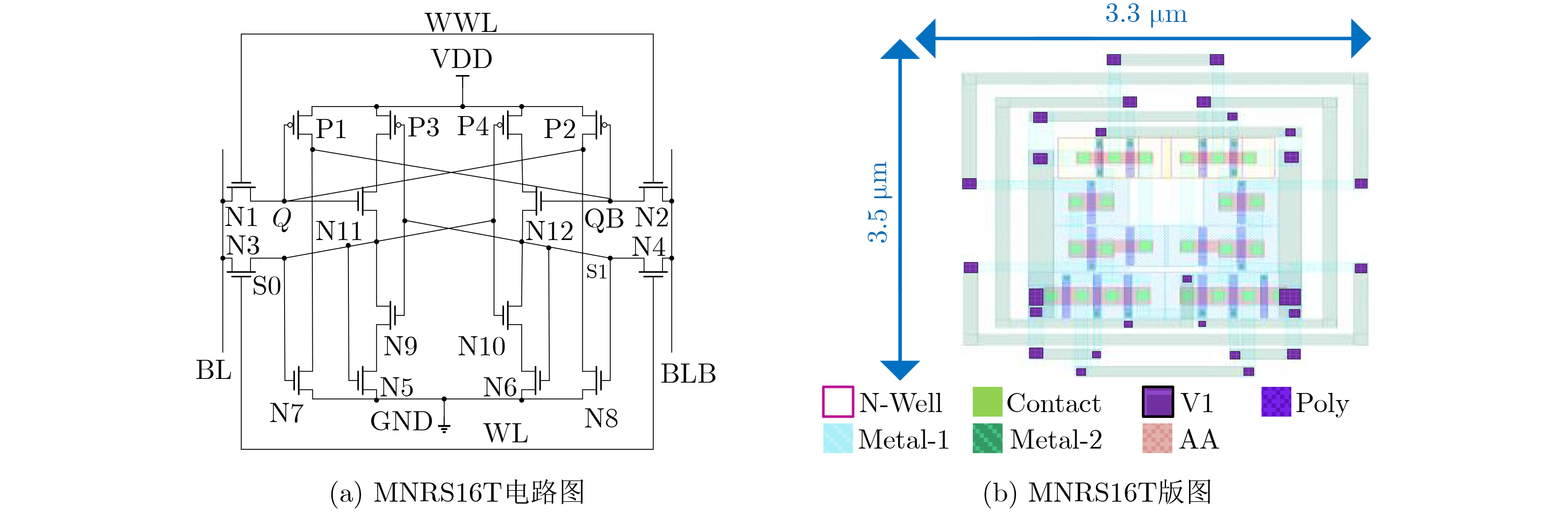

圖 1 MNRS16T單元

下載: 全尺寸圖片幻燈片

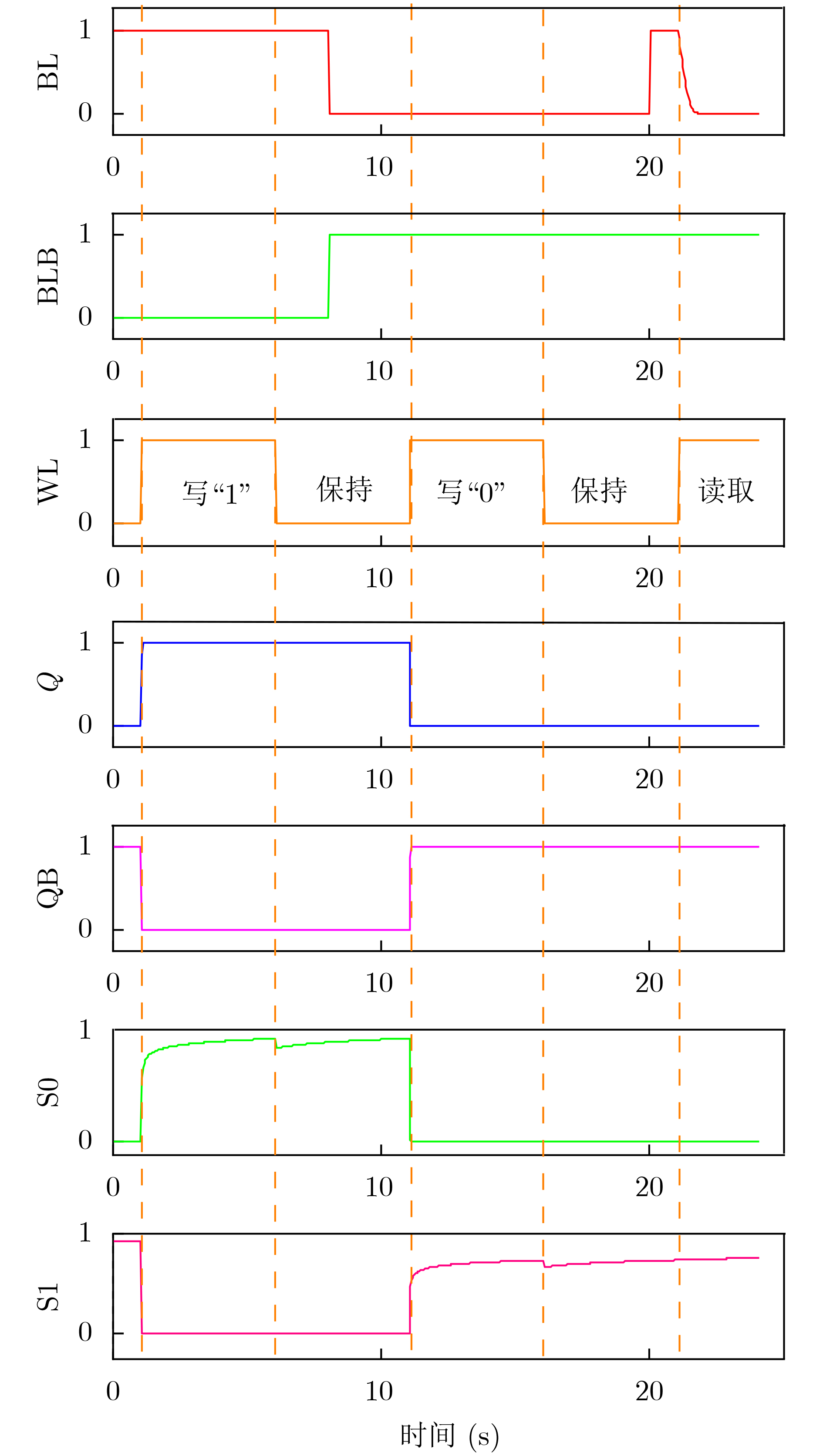

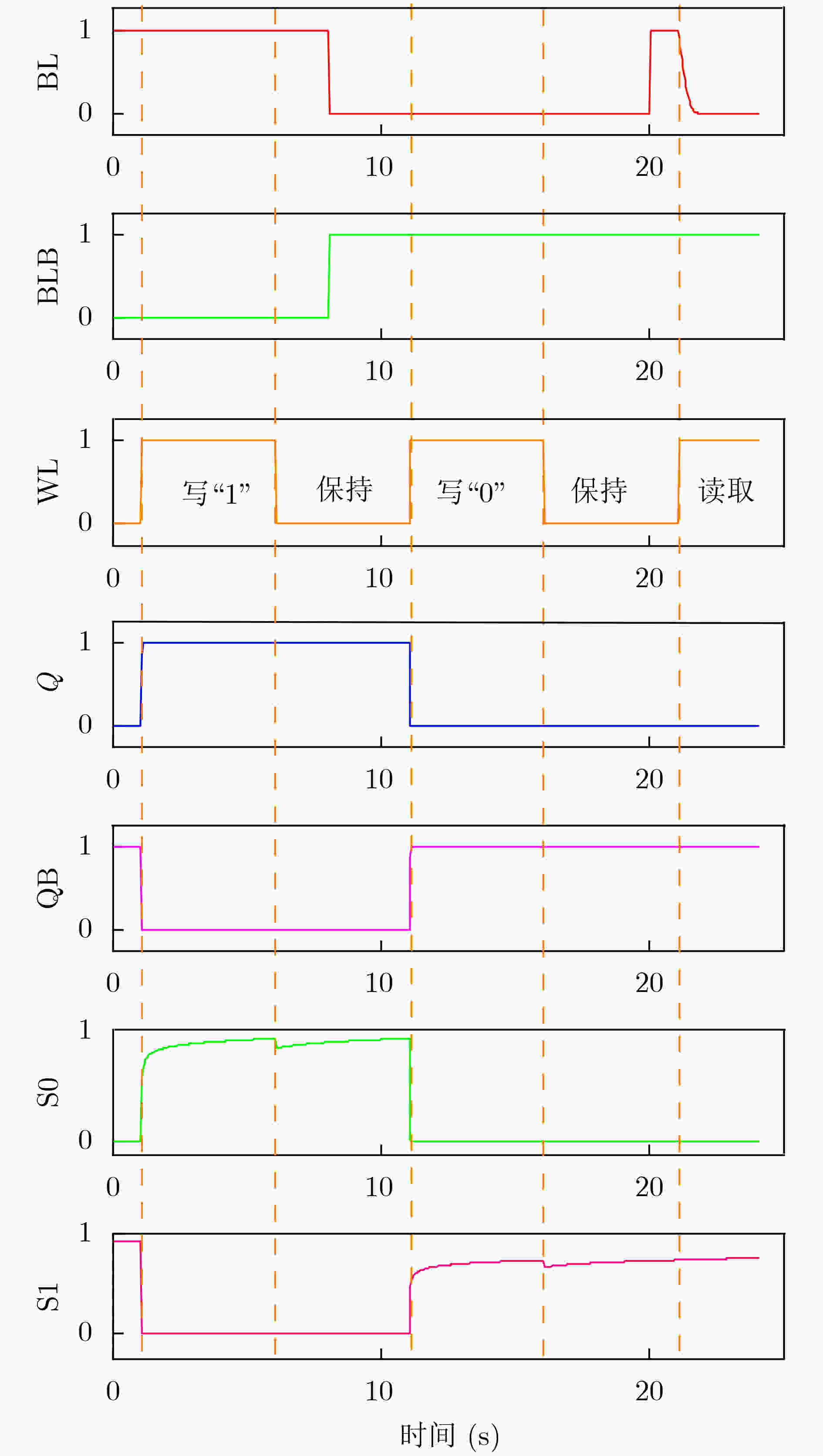

圖 2 基本操作

下載: 全尺寸圖片幻燈片

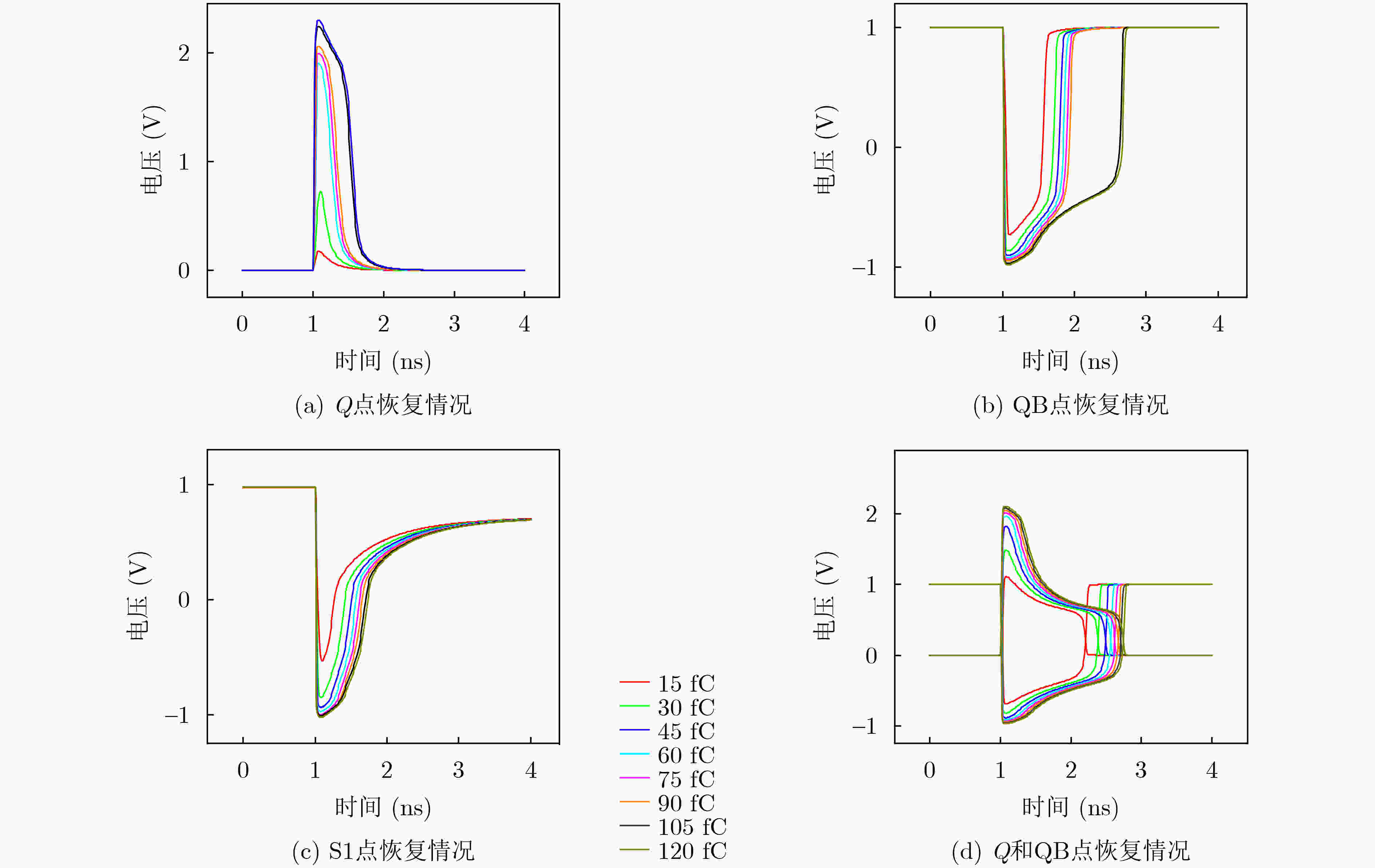

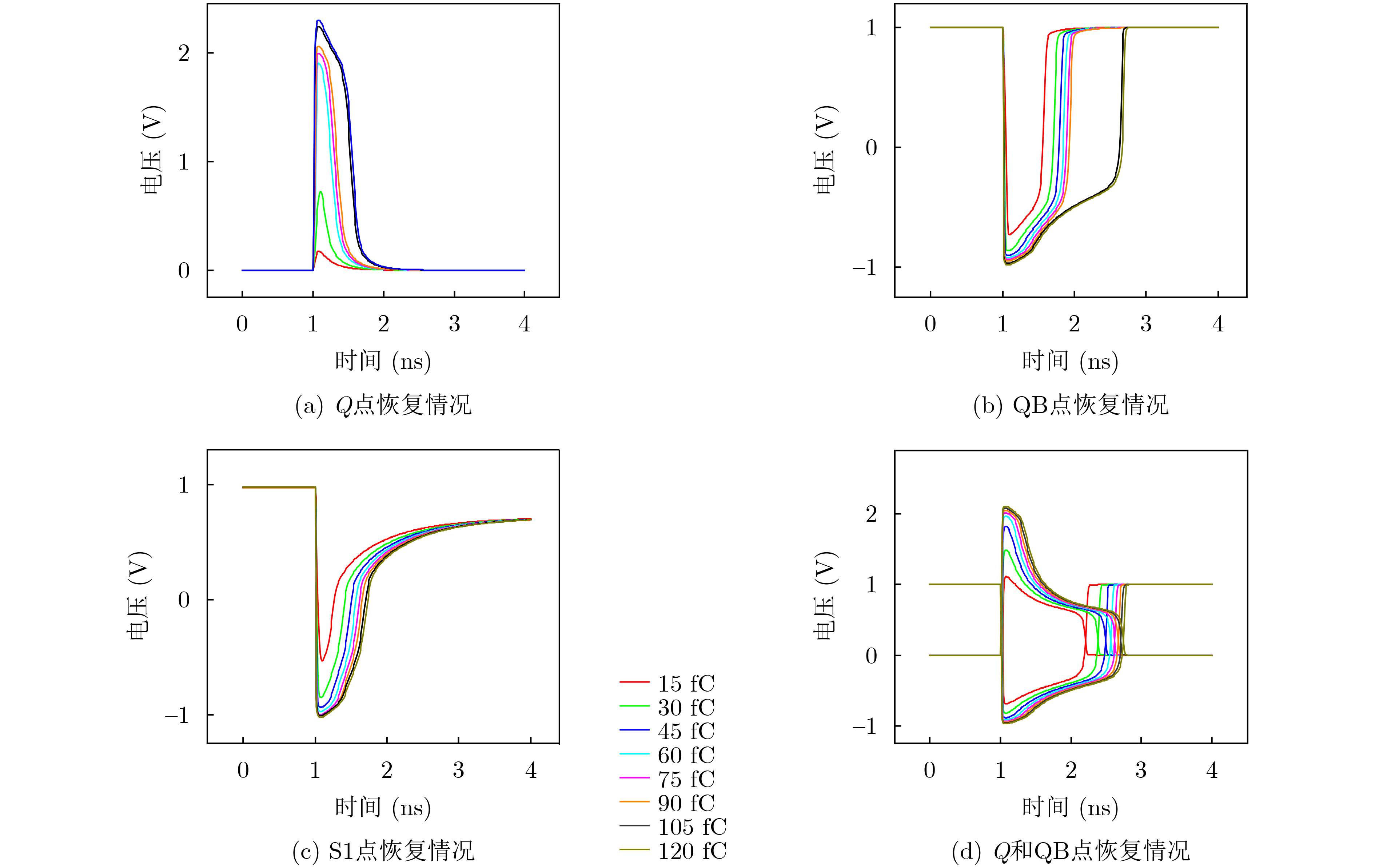

圖 3 MNRS16T各敏感節點受不同程度SEU和SEMNU仿真

下載: 全尺寸圖片幻燈片

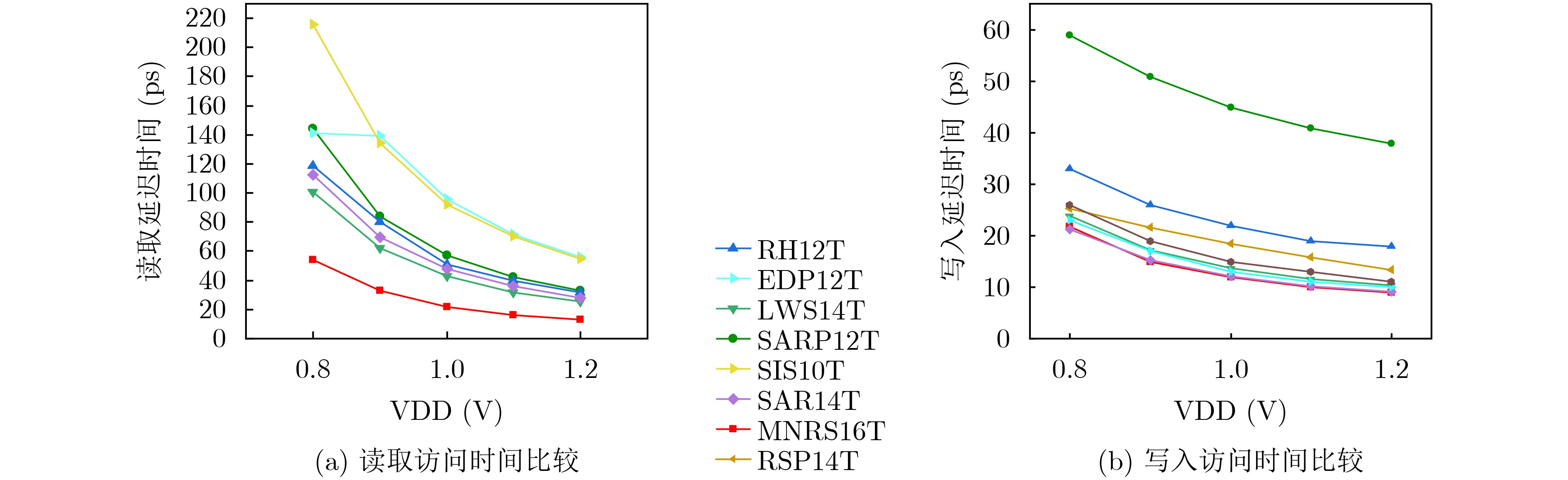

圖 4 讀取訪問時間與寫入訪問時間比較

下載: 全尺寸圖片幻燈片

圖 5 保持靜態噪聲容限的比較

下載: 全尺寸圖片幻燈片

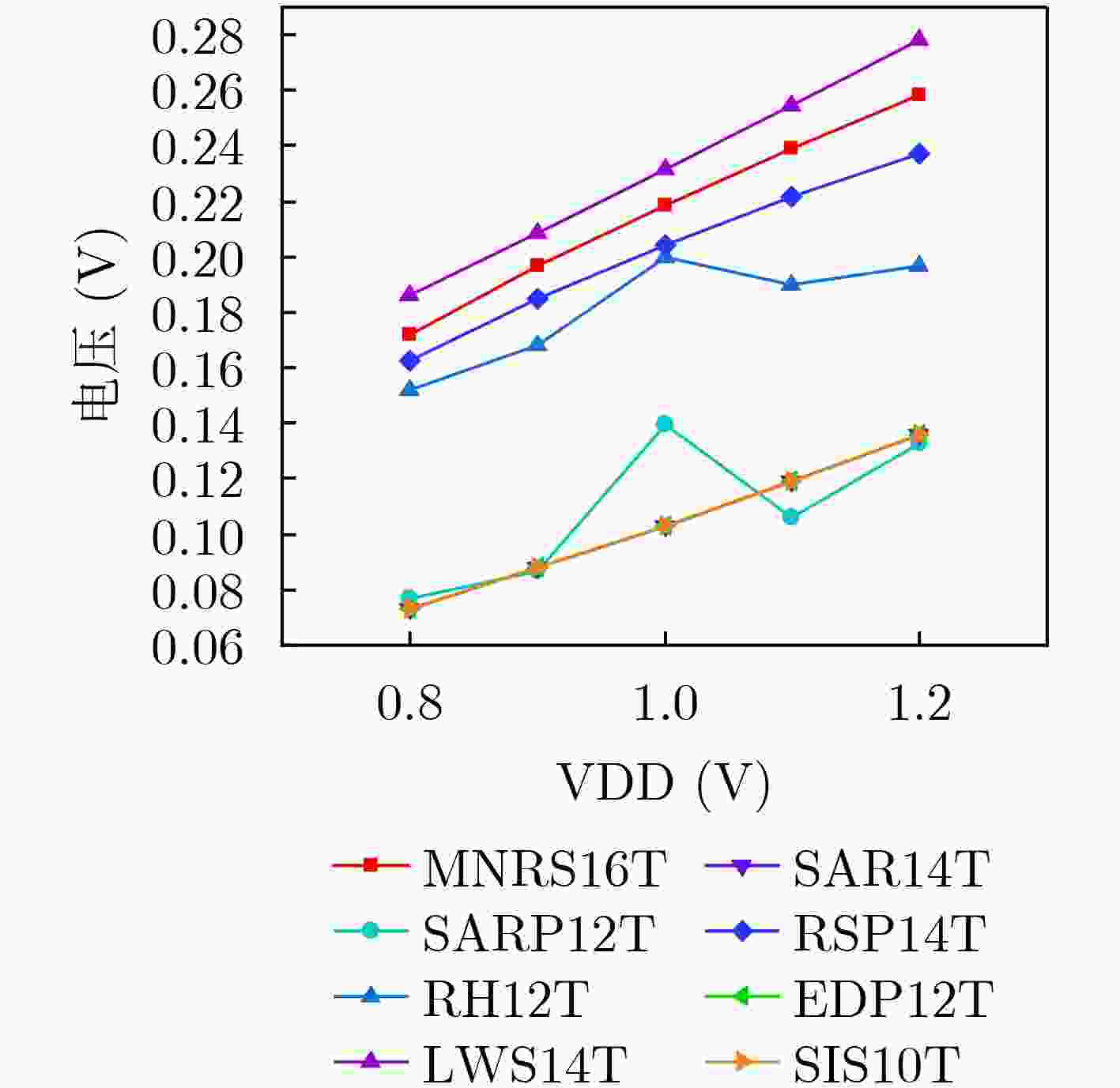

圖 6 讀取靜態噪聲容限的比較

下載: 全尺寸圖片幻燈片

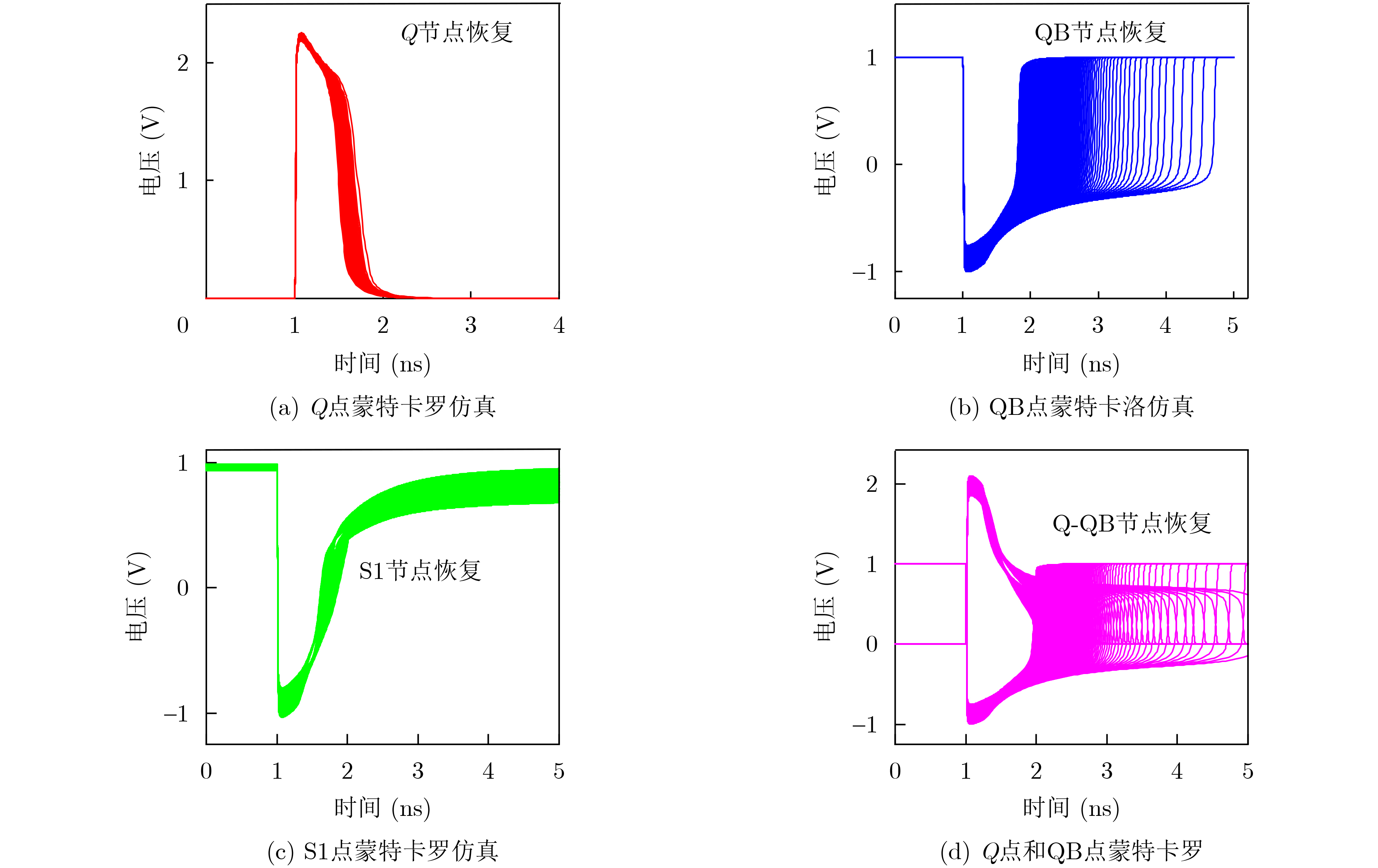

圖 7 MNRS16T的SEU和SEMNU蒙特卡洛仿真

下載: 全尺寸圖片幻燈片

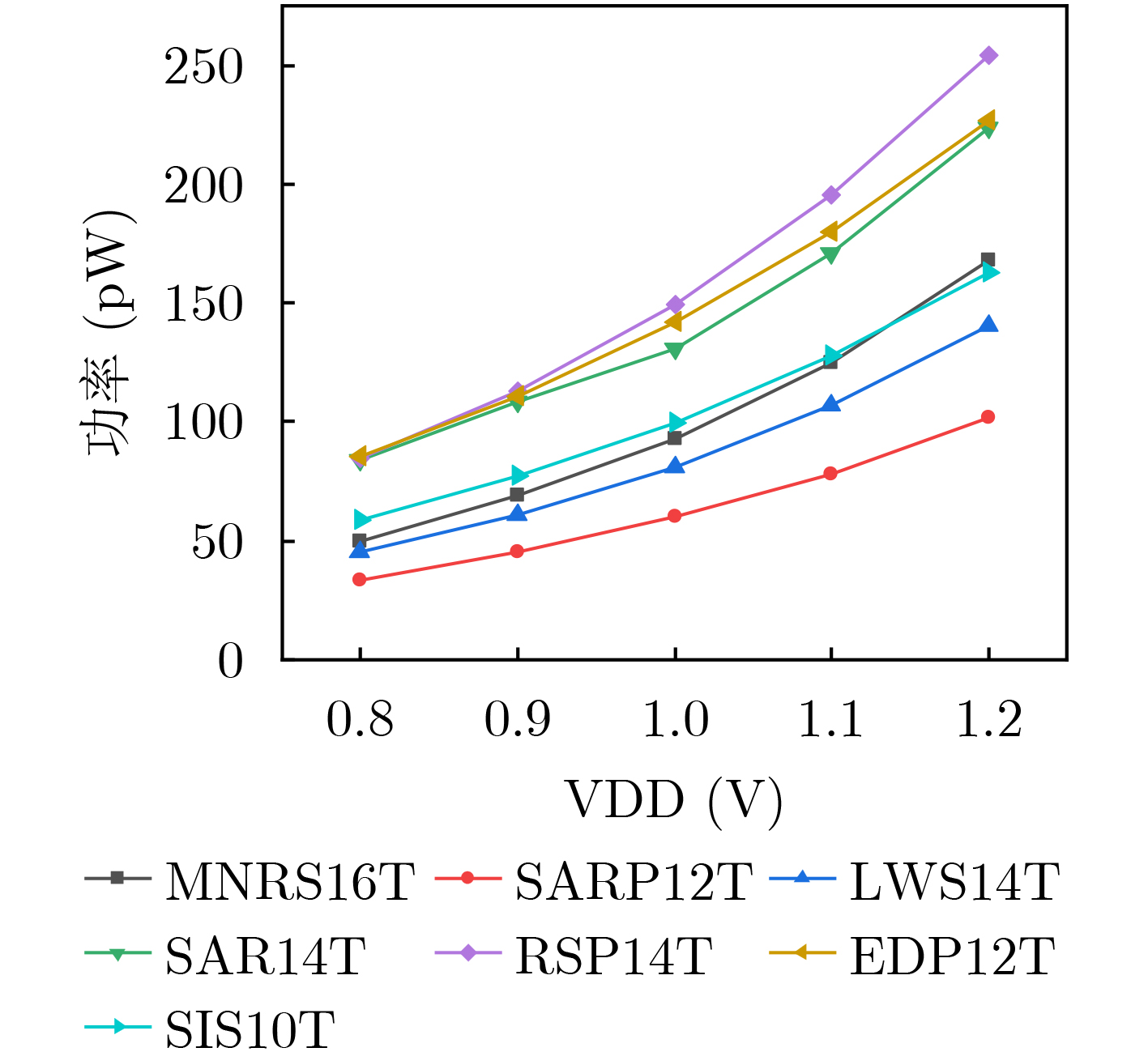

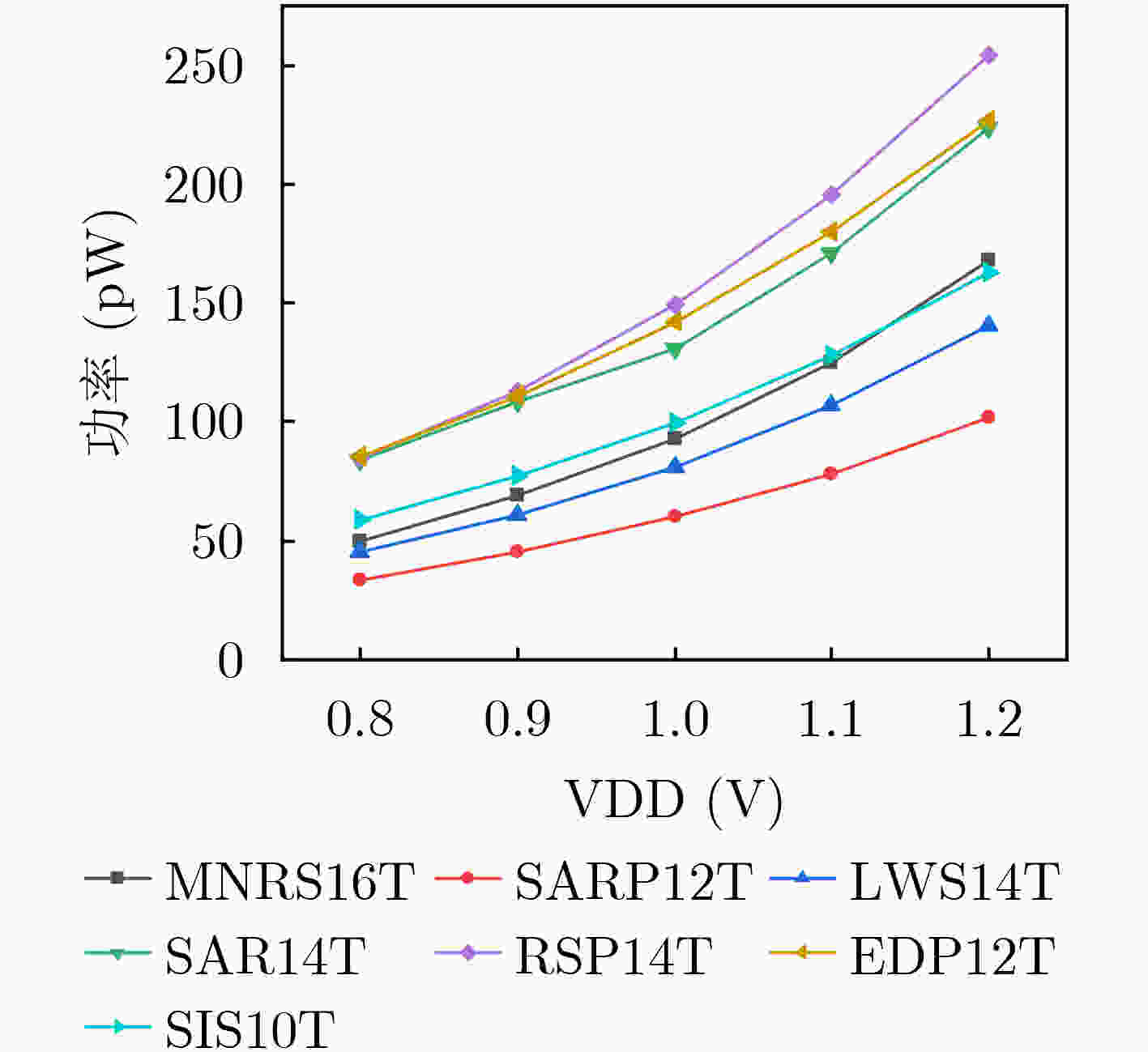

圖 8 保持功率比較

下載: 全尺寸圖片幻燈片

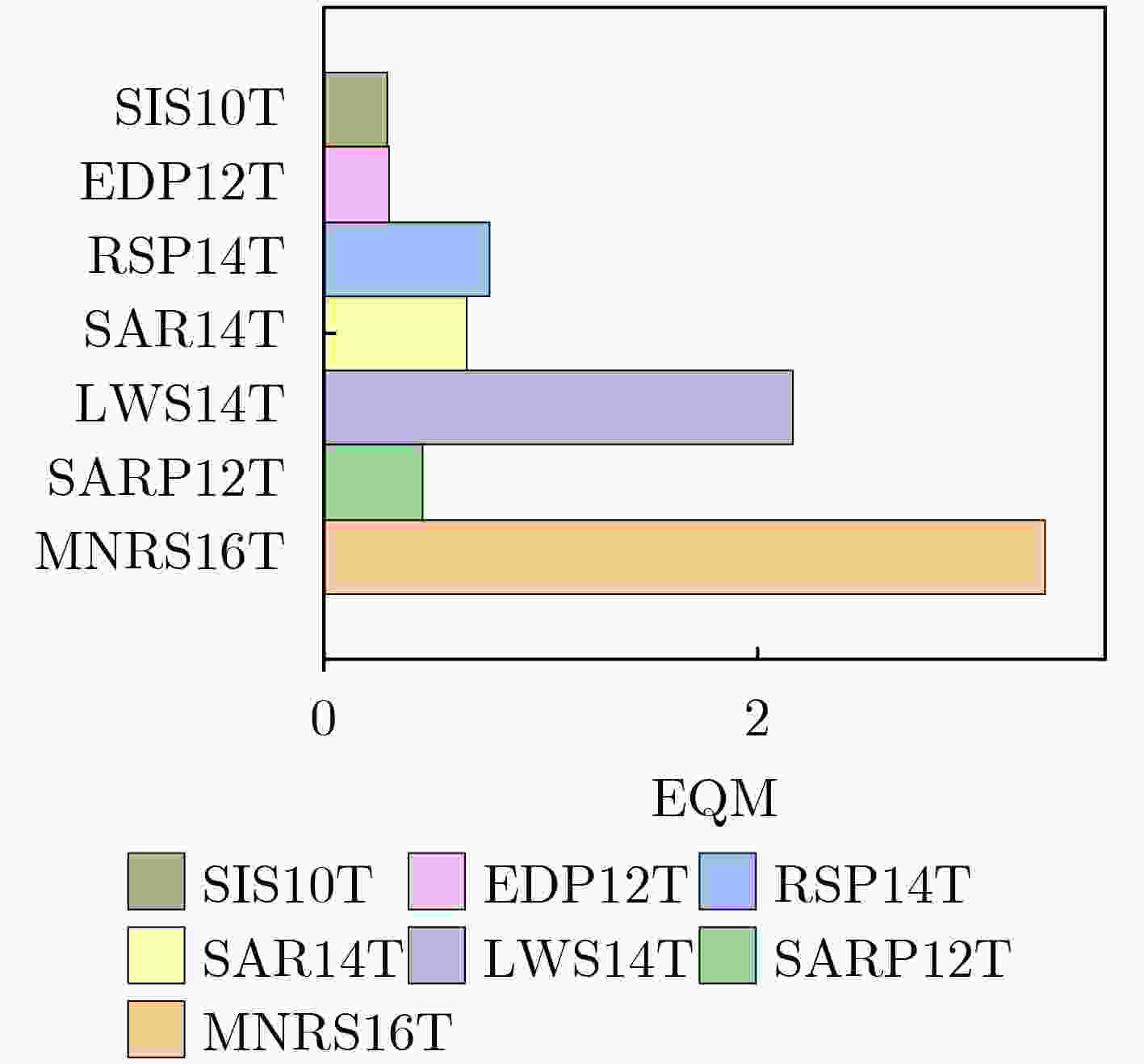

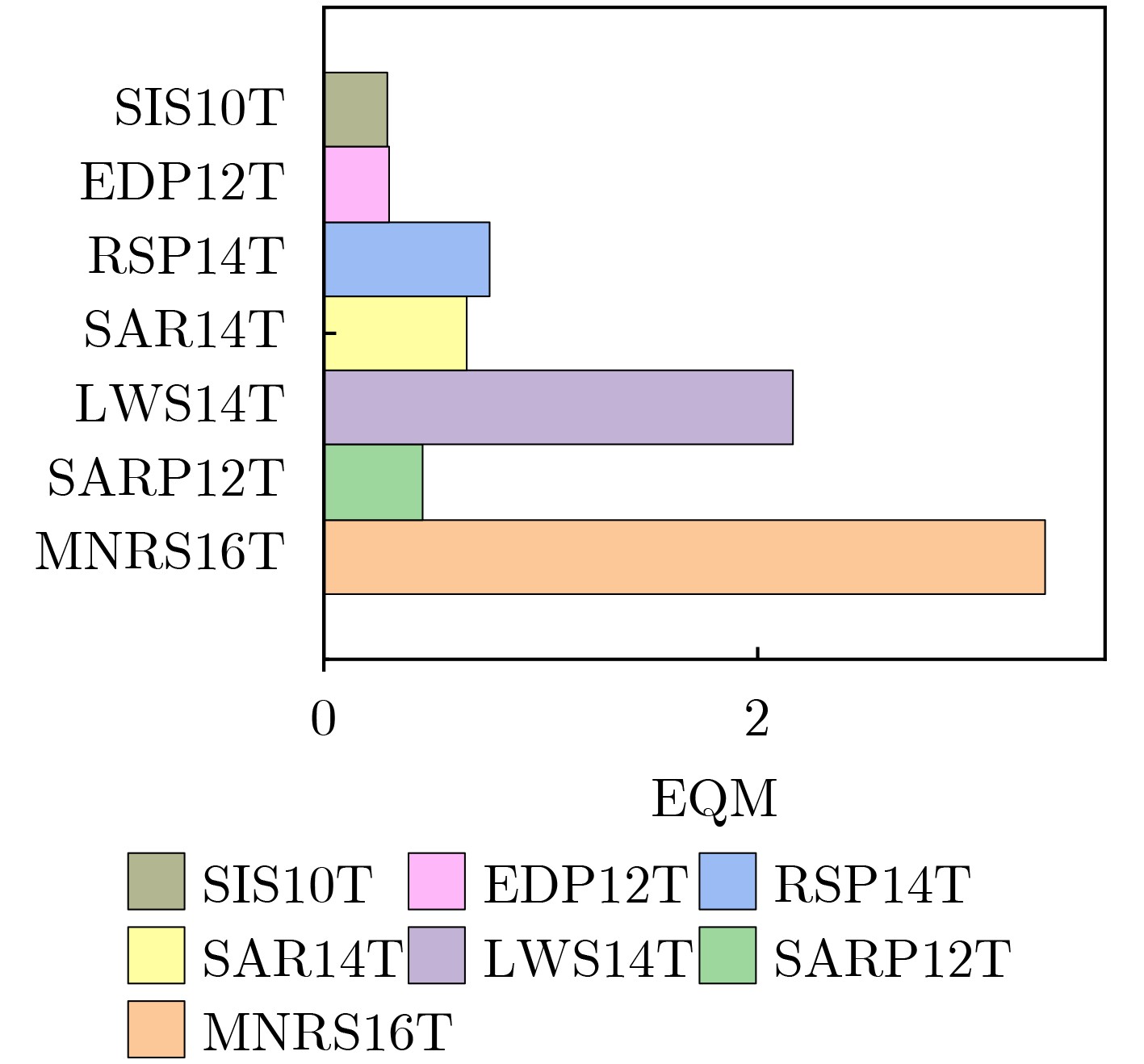

圖 9 EQM綜合比較

下載: 全尺寸圖片幻燈片

表 1 SRAM面積比較

SRAM單元	相對面積
SARP12T	0.61
LWS14T	0.82
SAR14T	0.74
RSP14T	0.77
EDP12T	0.72
SIS10T	0.58
MNRS16T	1.00

下載: 導出CSV

表 2 SRAM各項參數比較

SRAM單元	RAT(ps)	WAT(ps)	Hpwr(pw)	HSNM(V)	RSNM(V)
SARP12T	33	38	102	0.435 9	0.132 9
LWS14T	25	10	140	0.285 5	0.278 3
SAR14T	28	9	223	0.278 3	0.135 7
RSP14T	40	13	254	0.439 1	0.237 2
EDP12T	56	10	226	0.278 3	0.135 7
MNRS16T	23	8	168	0.442 4	0.258 3
SIS10T	55	11	163	0.213 3	0.135 6

下載: 導出CSV

參考文獻(18)

[1]	SUDHIR KUMAR K, KEERTHI PRIYA B, VINEELA M, et al. A design of low power full seu tolerance RHBD 10t SRAM cell[C]. 2020 IEEE India Council International Subsections Conference, Visakhapatnam, India, 2020: 27–32. doi: 10.1109/INDISCON50162.2020.00018.
[2]	SU Zexin, LI Bo, SU Xiaohui, et al. An SEU (single-event upset) mitigation strategy on read-write separation SRAM cell for low power consumption[C]. The 2020 IEEE 15th International Conference on Solid-State & Integrated Circuit Technology, Kunming, China, 2020: 1–3. doi: 10.1109/ICSICT49897.2020.9278325.
[3]	AHMED S, AMBULKAR J, MONDAL D, et al. Soft error immune with enhanced critical charge SIC14T SRAM cell for avionics applications[C]. The 2023 IFIP/IEEE 31st International Conference on Very Large Scale Integration, Dubai, United Arab Emirates, 2023: 1–6. doi: 10.1109/VLSI-SoC57769.2023.10321888.
[4]	NAGA RAGHURAM C H, GUPTA B, KAUSHAL G, et al. Single-event multiple effect tolerant RHBD14T SRAM cell design for space applications[J]. IEEE Transactions on Device and Materials Reliability, 2021, 21(1): 48–56. doi: 10.1109/TDMR.2021.3049215.
[5]	MOHD SAKIB ANSARI S, KAVITHA S, RENIWAL B S, et al. Design of radiation hardened 12T SRAM with enhanced reliability and read/write latency for space application[C]. The 2023 36th International Conference on VLSI Design and 2023 22nd International Conference on Embedded Systems, Hyderabad, India, 2023: 104–108. doi: 10.1109/VLSID57277.2023.00034.
[6]	PRASAD G, MANDI B C, ALI M, et al. Soft-error-aware SRAM for terrestrial applications[J]. IEEE Transactions on Device and Materials Reliability, 2021, 21(4): 658–660. doi: 10.1109/TDMR.2021.3118715.
[7]	PAL S, MOHAPATRA S, KI W H, et al. Soft-error-aware read-decoupled SRAM with multi-node recovery for aerospace applications[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2021, 68(10): 3336–3340. doi: 10.1109/TCSII.2021.3073947.
[8]	PAL S, KI W H, and TSUI C Y. Soft-error-aware read-stability-enhanced low-power 12T SRAM with multi-node upset recoverability for aerospace applications[J]. IEEE Transactions on Circuits and Systems I: Regular Papers, 2022, 69(4): 1560–1570. doi: 10.1109/TCSI.2022.3147675.
[9]	PAL S, CHOWDARY G, KI W H, et al. Energy-efficient dual-node-upset-recoverable 12T SRAM for low-power aerospace applications[J]. IEEE Access, 2023, 11: 20184–20195. doi: 10.1109/ACCESS.2022.3161147.
[10]	PAL S, SAHAY S, KI W H, et al. A 10T soft-error-immune SRAM with multi-node upset recovery for low-power space applications[J]. IEEE Transactions on Device and Materials Reliability, 2022, 22(1): 85–88. doi: 10.1109/TDMR.2022.3147864.
[11]	BAI Na, XIAO Xin, XU Yaohua, et al. Soft-error-aware SRAM with multinode upset tolerance for aerospace applications[J]. IEEE Transactions on Very Large Scale Integration (VLSI) Systems, 2024, 32(1): 128–136. doi: 10.1109/TVLSI.2023.3328717.
[12]	張景波, 楊志平, 彭春雨, 等. PMOS晶體管工藝參數變化對SRAM單元翻轉恢復效應影響的研究[J]. 電子與信息學報, 2017, 39(11): 2755–2762. doi: 10.11999/JEIT170547. ZHANG Jingbo, YANG Zhiping, PENG Chunyu, et al. Study on the effect of upset and recovery for SRAM under the varying parameters of PMOS transistor[J]. Journal of Electronics & Information Technology, 2017, 39(11): 2755–2762. doi: 10.11999/JEIT170547.
[13]	ZHAO Qiang, PENG Chunyu, CHEN Junning, et al. Novel write-enhanced and highly reliable RHPD-12T SRAM cells for space applications[J]. IEEE Transactions on Very Large Scale Integration (VLSI) Systems, 2020, 28(3): 848–852. doi: 10.1109/TVLSI.2019.2955865.
[14]	PENG Chunyu, YANG Zhou, LIN Zhiting, et al. Reverse bias current eliminated, read-separated, and write-enhanced tunnel FET SRAM[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2021, 68(1): 466–470. doi: 10.1109/TCSII.2020.3011950.
[15]	PAL S, MOHAPATRA S, KI W H, et al. Soft-error-immune read-stability-improved SRAM for multi-node upset tolerance in space applications[J]. IEEE Transactions on Circuits and Systems I: Regular Papers, 2021, 68(8): 3317–3327. doi: 10.1109/TCSI.2021.3085516.
[16]	LI Tianwen, YANG Haigang, CAI Gang, et al. A CMOS triple inter-locked latch for SEU insensitivity design[J]. IEEE Transactions on Nuclear Science, 2014, 61(6): 3265–3273. doi: 10.1109/TNS.2014.2366999.
[17]	LI Tianwen, YANG Haigang, ZHAO He, et al. Investigation into SEU effects and hardening strategies in SRAM based FPGA[C]. The 2017 17th European Conference on Radiation and Its Effects on Components and Systems, Geneva, Switzerland, 2017: 1–5. doi: 10.1109/RADECS.2017.8696177.
[18]	趙磊, 王祖林, 郭旭靜, 等. 一種SRAM型FPGA抗軟錯誤物理設計方法[J]. 電子與信息學報, 2013, 35(4): 994–1000. doi: 10.3724/SP.J.1146.2012.01030. ZHAO Lei, WANG Zulin, GUO Xujing, et al. A physical design approach for mitigating soft errors in SRAM-based FPGAs[J]. Journal of Electronics & Information Technology, 2013, 35(4): 994–1000. doi: 10.3724/SP.J.1146.2012.01030.
